Thick Inset Pocket/Flipper Door Hinge Kit

Item #
94% of 100

Pocket/flipper door hinges for thick inset doors (1-1/4" maximum thickness) on frameless or face-frame cabinets. Can be used with slides in the EZ Pocket Door System for doors that weigh up to 30 lbs. and are a maximum of 42" tall x 24" wide or with slides in the KV8091 Pocket Door System for doors up to 75 lbs. and 72" tall x 26" wide. Require 40mm hinge cup holes.

Note: The EZ Pocket Door System requires one set of hinges per door. The KV8091 Pocket Door System requires two sets of hinges per door.

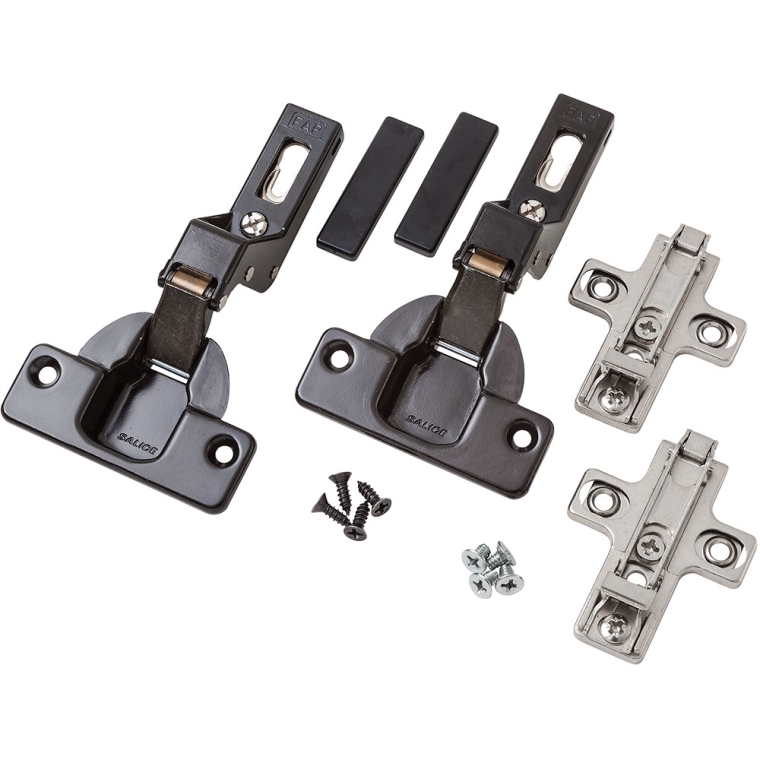

(1) Thick Inset Pocket/Flipper Door Hinge Kit
More Information
Brand Knape & Vogt
Manufacturer Part Number 8086HKX SAL EB
Weight 0.5500
Tech Spec
  • 40mm cup hole
  • Discountable Yes
    Application Inset
    Style Self Close
    Minimum Door Thickness 0mm
    Maximum Door Thickness 31.75mm
    4.7 / 5.0
    6 Reviews
    5 Stars
    4 Stars
    3 Stars
    2 Stars
    1 Star
    Great products
    January 31, 2020
    1 month ago
    Perfect Fit!
    Good quality construction. Easy to install. My only suggestion would be to provide slightly longer screws for attachment to face frame.
    December 27, 2018
    1 year ago
    Woodworking Experience:
    The customer service was unbelievable. My wife's cabinet was over 20 years old. The lady worked with me over the phone to find the right pieces. Thanks for the help
    April 22, 2016
    over 3 years ago
    The hinges were great with the pocket doors
    I love these hinges. It made the pocket doors operate easily. My only wish after I installed them on the pocket doors, is that they extended 20 degrees out more. I had to retro fit them on the doors until I attained a clean fit and extension.

    Would recommend these exact hinges for my jobs. Strong hinge. Paul from the Altamonte Spings, FL surely knows his stuff..
    February 23, 2016
    over 4 years ago
    Woodworking Experience:
    Work great
    Nice product, recomend to anyone.
    August 27, 2015
    over 4 years ago
    Woodworking Experience:
    Missing some dimensions
    The installation directions looked to be geared for cabinet builders or installers.some verbal instructions used hinge or installation terms not shown on drawings. Also, some important directions for precise install locations were missing.
    It was trial and error for me, on this broken pocket door hinge replacement, but got it done and all is working.
    P.S. The original 13 year old hinge and slides or similar set with same dimensions were apparently no longer available.
    October 5, 2015
    over 4 years ago
    Woodworking Experience:
    Start typing your question and we'll check if it was already asked and answered. Learn More
    Browse 5 questions Browse 5 questions and 7 answers
    Why did you choose this?
    Rockler Store
    Erich W on Oct 28, 2019
    old ones broken
    mike t on Apr 9, 2019
    Erich W on Oct 28, 2019
    building a desk with inset doors
    Alfonso J on May 27, 2019
    old ones broken
    mike t on Apr 9, 2019
    Exact same hinge as originally on my 48” pocket doors for TV armoire.
    Beverly S on Nov 24, 2018
    Looks like it's compatible with ES Pocket Door Slides
    Mac S on Jun 22, 2018
    Chosen on the advice of Jim at the Rockler Store on St. Charles Rock Road near St. Louis, MO. Needed to replace broken hinge (not available locally) on the pocket door of a favorite cabinet. Jim's help was right on!
    Barbara F on Apr 24, 2018
    Needed for my project
    Todd M on Apr 25, 2017
    Replacement part
    Kathy R on Nov 21, 2016
    This item was hard to find locally
    Harold P on Jan 7, 2016
    yep, good product
    Matthew S on Jan 7, 2016
    I needed to makes some repairs these two hinges was damaged in moving so I needed replacements hoping these are the right size because you know with pocket hinges there must be a tight fit for them to work
    mark b on Nov 26, 2015
    A hinge on my 13 year old Bassett armoire broke. I am hoping this replacement will work!
    Sandra L on Sep 3, 2015
    to replace snapped hinges in Restoration Hardware armoire
    cindy f on Jul 9, 2015
    building a desk with inset doors
    Alfonso J on May 27, 2019
    Exact same hinge as originally on my 48” pocket doors for TV armoire.
    Beverly S on Nov 24, 2018
    what is the depth of the hinge cup needed for item #26446?
    Julie P on Mar 21, 2016
    Is there someone there familiar with the pocket door system that I can enplane problems I am having? I have installed to all the published dimenstions but the door are lopsided and I am out of adjustment.
    Joe P on Jul 10, 2018
    BEST ANSWER: Joe, Can you post some pictures of the doors that show how they are out of alignment. Please include inside and outside pictures of the project.
    Is there a soft-close version for the thicker door versions?
    Tim J on Oct 3, 2019
    BEST ANSWER: Not sure, but I add felt pads to the center stopper at the top of the doors and I have no problems, my doors are likely on the heavier side of what one would use these for. Additionally, the motion of these doors really does call for soft close. It’s a fairly methodical process to close them. Pull, fully extend beyond the inside pivot, then close, not really a chance to slam them. I see no need for a soft close. My doors are roughly 26x84” ea. Used to hide our laundry pantry.
    how many hinges in a package #26446?
    John B on Feb 2, 2017
    BEST ANSWER: Set of two. For one door.
    What is the minimum stile width so that the cup assembly fits completely within the stile without extending over the cabinet door panel?
    Blake Y on Aug 14, 2018
    BEST ANSWER: A traditional stile is 2"- 2½". You can make them thinner but the door would not be as strong.
