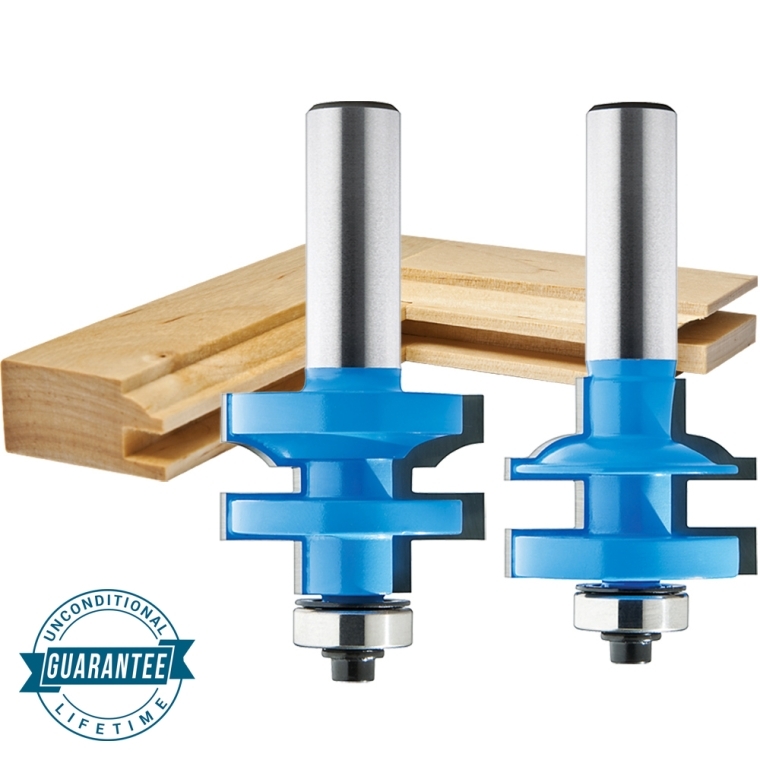

Rockler Bead Stile and Rail Router Bit - 1-3/8" Dia x 1" H x 1/2" Shank

Build sturdy, beautiful frame and panel doors with minimal setup and absolute precision!
Item #
91947
Rating:
90% of 100

Use this rail and stile router bit set to create beautiful door frames for glass panel, flat panel and raised panel doors. Rockler rail and stile bit sets are manufactured to exacting standards and create perfectly matched cope and stick joints. The one-piece cutting edge allows you to achieve a perfect fit without having to disassemble an arbor and install shims. With ball bearing guide, you can even use a template to build doors with curving rails.


Features:
  • K10 and K20 grade carbide for clean cutting action.
  • Final sharpening with 600 - 800 grit diamond wheels.
  • Precision balanced for smooth operation.
  • Baked-on anti-stick coating to reduce pitch and resin buildup.
(1) Bead Stile and Rail Router Bit Set
More Information
Brand Rockler
Weight 0.5500

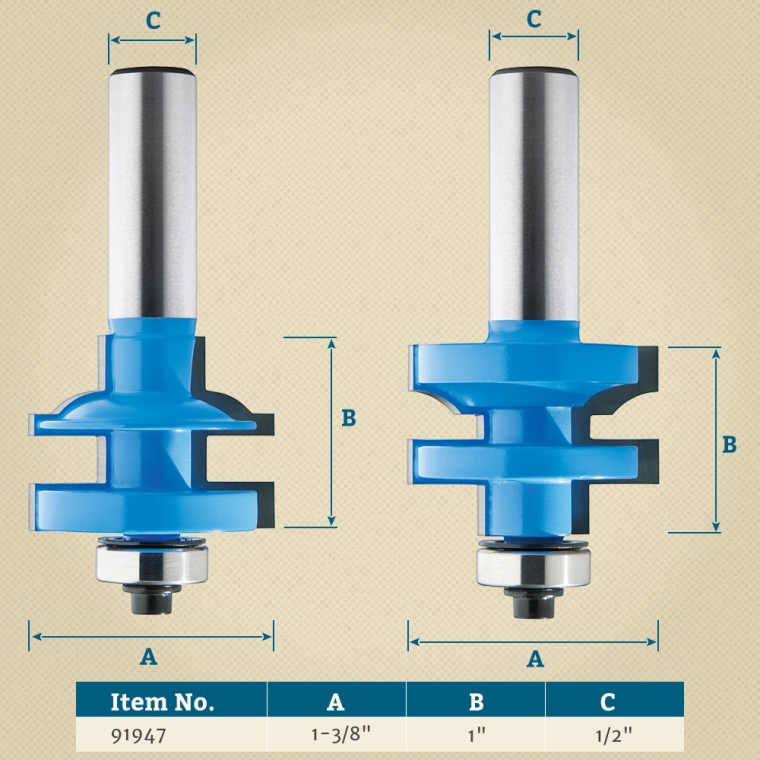

Tech Spec
  • 5/8" Bearing.
  • 1/4" x 3/8" Groove.
Bit Type Stile & Rail
Diameter 1-3/8"
Cutter Height 1"
Shank Size 1/2"
Flutes 2
4.5 / 5.0
13 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
9
3
0
1
0
Like this profile
Great looking profile to use for cabinets.
August 22, 2019
Purchased
3 months ago
Woodworking Experience:
Advanced
Good quality bits plus very sharp.
The bit set worked flawlessly. The setup jig saved a tremendous amount of time.
March 16, 2019
Purchased
7 months ago
Woodworking Experience:
Intermediate
Good quality bits plus very sharp.
The bit set worked flawlessly. The setup jig saved a tremendous amount of time.
March 16, 2019
Purchased
7 months ago
Woodworking Experience:
Intermediate
Great set
Doors came out great very happy
User submitted image
User submitted image
December 18, 2018
Purchased
10 months ago
Woodworking Experience:
Intermediate
Good set of matches bits
Bits are sharp and the protection on them is quality upon first opening. Nothing bad to say. Rockler should stock a case that holds two matches bits apart when then are stowed.
November 28, 2016
Purchased
over 2 years ago
Woodworking Experience:
Advanced
Really cuts a perfect profile
April 30, 2016
Purchased
over 3 years ago
Woodworking Experience:
Intermediate
Nice bit set, requires use of fence
I called to question why the roller bearings were set so high, friendly service tech explained these bits are designed to be used with a fence. Reason for high setting of bearing is if you use a pattern and do arches. So any none straight cuts off the fence will require you to attach a pattern to your work piece to use the roller bearing.
March 31, 2016
Purchased
over 3 years ago
I made the doors for a...
I made the doors for a china hutch (still in progress) using these bits, and got clean cuts in red oak as long as I used a backer board to control chipout on the exit side of the cut. The joints fit air-tight, and the bearings make positioning the router table fence a breeze.
December 29, 2009
I have used the router bit...
I have used the router bit set in the building of kitchen cabinet doors and found them to be excellent. The matched set is perfect in fit and cutting was smooth. Good quality product...
October 29, 2007
My bad!
It helps to pay attention. I never used it because I did not notice it has a half-inch shank. My router it quarter inch. And t cost $$ to send it back.
March 6, 2019
Purchased
8 months ago
Woodworking Experience:
Intermediate
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 3 questions Browse 3 questions and 3 answers
Why did you choose this?
Rockler Store
starting to make picture frames for friends and family
Chris R on Jan 16, 2019
for a job
J A on Jul 12, 2018
starting to make picture frames for friends and family
Chris R on Jan 16, 2019
Good price. Have some cabinet doors to make.
Gary Welch P on Nov 26, 2018
for a job
J A on Jul 12, 2018
Match the cabinets in the rest of the house
Andrew Z on Feb 10, 2018
project requirement
Charles E on Aug 23, 2017
Cabinet Making
Richard M on Aug 10, 2017
Looking to build some cabinets thought these looked handy for doors
Broc G on Aug 8, 2017
These router bits are of high quality and affordably priced!
Steve on Feb 24, 2017
I will be making kitchen cabinets for my home and I will need these to make cabinet doors.
Denis L on May 13, 2016
Easy set-up
Joanne J on Mar 2, 2016
Affordable way to begin building custom doors.
Tim P on Feb 28, 2016
MY DAUGHTER IS VERRY HAPPY THE WAY THEY CAME OUT. SHE NOW HAS MORE PLANS FOR ME.
Jim B on Jan 26, 2016
made doors
David K on Jul 11, 2015
Good price. Have some cabinet doors to make.
Gary Welch P on Nov 26, 2018
Match the cabinets in the rest of the house
Andrew Z on Feb 10, 2018
Assuming there is some loss from the cut length to the final rail length, what amount of loss occurs on the coped end to the overall length of a rail? In other words, what length do i need to cut the rail to get a door that is 10 inches wide while both stiles are in place?
Zpaeric on Oct 6, 2017
will this bit work on 5/4 stock?
A shopper on May 31, 2015
BEST ANSWER: I never have used the bits on 5/4 but it will work . The back side of the stile will just be a lot thicker from the inside panel.
What router specs would you recommend for bits like this? As in how many horsepower? I'm looking to get a router to eventually use bits like these from Rockler. Thanks a lot!
Joshua T on Jan 27, 2019
Rockler Bead Stile and Rail Router Bit - 1-3/8
Rockler Bead Stile and Rail Router Bit - 1-3/8" Dia x 1" H x 1/2" Shank
Rockler Classical Stile and Rail Router Bit - 1-3/8
Rockler Classical Stile and Rail Router Bit - 1-3/8" Dia x 1" H x 1/2" Shank
Rockler Round Rail and Stile Router Bit - 1-5/8
Rockler Round Rail and Stile Router Bit - 1-5/8" Dia x 1" H x 1/2" Shank
Rockler Traditional Stile and Rail Router Bit - 1-3/8
Rockler Traditional Stile and Rail Router Bit - 1-3/8" Dia x 1" H x 1/2" Shank
Rockler Ogee Reversible Rail & Stile Router Bit - 1-5/8
Rockler Ogee Reversible Rail & Stile Router Bit - 1-5/8" Dia x 15/16" H x 1/2" Shank
Rockler Bead In-Stile and Rail Router Bit Set - 1/2
Rockler Bead In-Stile and Rail Router Bit Set - 1/2" Shank
BEST ANSWER: I bought these and have not used them. I have various routers but a 2 1/2 HP should be more than sufficeient.
