$35.99 Each
In stock
Ultra-precise digital gauge sets the angle of saw blades, jointer fences, bandsaw tables and more!

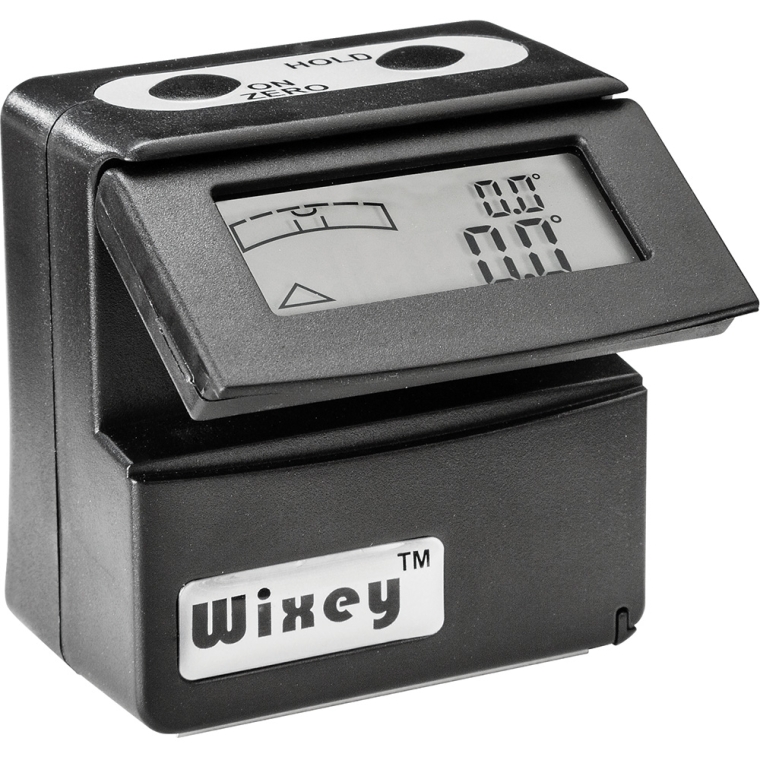

Digital Angle Gauge w/Flip-Out Display

Item #
55960
Rating:
98% of 100
Digital Angle Gauge w/Flip-Out Display
Digital Angle Gauge w/Flip-Out Display

Thanks to its handy magnetic base, the Wixey WR365 adheres to any ferrous metal surface for fast, accurate level and bevel measurements. It measures both absolute level relative to the center of the earth, and relative bevel when zeroed at any angle, and both readings are always visible so you don't have to toggle between them. Use it on table saw blades to set bevel angles, or use it to set the angle on bandsaw tables, drill press tables and jointer fences. For example, you can attach it to the drill bit in your drill press (using the V-groove feature for round items), zero the gauge, then set the gauge on your table and adjust the angle as desired. Of course, it also works perfectly for leveling machinery.


Features:

  • Flip-out display for easy readability from many angles.
  • Super strong magnets securely attach the gauge to saw blades and other metallic surfaces.
  • V-groove in magnet allows use with round objects such as pipe and drill bits.
  • Built in level function uses patent pending Dead Level technology (refers to absolute level with respect to the center of the earth. This setting is permanently calibrated).
  • Zero button also calibrates the gauge to any reference surface.
  • Convenient hold feature saves your reading.
  • Uses standard AAA batteries (not included) that are easily replaceable and last up to 2 years.
  • Auto shut-off helps conserve battery life.

Please note that this item can only be shipped to addresses within the continental United States by UPS Ground only.

  • Shipping Restrictions: Ground Transportation Only.
(1) Wixey WR365 Magnetic Digital Angle Gauge
More Information
Brand Wixey
Manufacturer Part Number WR365
Weight 0.2500
Tech Spec
  • Range: +/- 180 degrees
  • Resolution: 0.1 degrees
  • Repeatability: +/- 0.1 degrees
  • Size: 2.2" x 2.3" x 1.3"
  • Power: 2 AAA batteries (not included)
Technical Documents
4.9 / 5.0
23 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
20
3
0
0
0
Works as advertised - did what I needed
May 8, 2019
Purchased
2 months ago
Woodworking Experience:
Intermediate
Love it really help makes a better angled cut
Love it really makes a differance
April 10, 2019
Purchased
3 months ago
Woodworking Experience:
Beginner
Robert G
Wonderful tool for many uses. Use mine to reset angle to sharpen my wood lathe tools and to set my saw blade angle.
March 17, 2019
Purchased
over 4 years ago
Woodworking Experience:
Intermediate
Very nice
I've used it to adjust the fence on my jointer, to reset the table on my band saw and the blade on my table saw. Found I had been fairly close with my square, but this really dialed it in. Easy to use, and now I'm confident my work will be square, particularly on the jointer where the fence wants to move with use.
January 22, 2019
Purchased
5 months ago
Woodworking Experience:
Intermediate
Accurate setups
With the absolute leveling capability, setting up my SawStop JSS is a snap! It doesn't matter if the floor is level, I can easily determine that my blade is perpendicular to the table
January 18, 2019
Purchased
5 months ago
Woodworking Experience:
Beginner
A must have
The more I use this, the more uses I find for it. It's super easy and intuitive to use and helps achieve greater accuracy in the shop. Highly recommended!
December 2, 2018
Purchased
7 months ago
Woodworking Experience:
Beginner
Works great. Very handy
Works very well. Easy to read. Works quickly. Handy for places/situations where it is awkward to read a manual angle gauge.
October 20, 2018
Purchased
8 months ago
Woodworking Experience:
Intermediate
Great little device
Very accurate and simple to use. I also like the fact that it uses AAA batteries rather then the button type. Easy display to read
October 10, 2018
Purchased
9 months ago
Woodworking Experience:
Intermediate
So far it has been great I used it set up saw, planer jointer and mitre saw.
August 31, 2018
Purchased
10 months ago
Another great product supplied by Rockler.
This is a great product. No more guessing if my saw blade is at 90° or at 10° as used on a recent project. I would highly recommend this to any woodworker.
August 30, 2018
Purchased
10 months ago
Woodworking Experience:
Intermediate
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 2 questions Browse 2 questions and 39 answers
Why did you choose this?
Rockler Store
I need a more accurate way of setting bevels on my table saw. This looks like it will do the trick.
Steve G on Jun 9, 2019
For better accuracy on my table and miter saw.
Michael Z on Feb 25, 2019
I need a more accurate way of setting bevels on my table saw. This looks like it will do the trick.
Steve G on Jun 9, 2019
needed angle accuracy on table saw blade
Mark B on Mar 5, 2019
For better accuracy on my table and miter saw.
Michael Z on Feb 25, 2019
the reviews said this was better than lower cost model, i hope they are right
N J on Feb 15, 2019
TO REPLACE MY OLD WINEY
James H on Jan 13, 2019
I don’t trust my bevel gauge my t-saw or miter saw
Phil LeVasseur on Jan 7, 2019
Good reviews. Need to check machine setups.
Joseph C on Dec 31, 2018
After a bit of produce research, this unit appeared to be the best product for the money.
Jeff C on Dec 30, 2018
I've gotten to the stage in woodworking where precision is more important.
Jennifer S on Dec 30, 2018
hope it gets repeatable results
robert r on Dec 16, 2018
Christmas present for family members.
Paula B on Dec 8, 2018
Christmas present for my husband.
Theresa S on Dec 1, 2018
No guest work
William P on Nov 1, 2018
THE OLDER SYLE WAS UNHANDY TO USE.
JAMES K on Aug 12, 2018
easy to read when checking angles
Gerald S on Jan 6, 2018
wanted this to complement my newly purchased sawstop saw
Clyde B on Nov 22, 2016
I use this to accurately setup my table saw, drill press, jointer, etc
Patricia P on Oct 16, 2016
uses to check tool setup
Mike H on Sep 12, 2016
I like accuracy
Hiam S on Jul 7, 2016
For measuring
THOMAS H on May 24, 2016
I broke my last one. They sure make setting angles between blades and saw tables or squaring my jointer fence.
Kevin D on Apr 1, 2016
Hope for accuracy.
Joseph B on Feb 8, 2016
Need to acurately and quickly set fence on jointer and band saw.
George R on Feb 6, 2016
I have found this digital angle gauge very handy for setting the table saw blade at a precise angle relative to the table, despite the uneven floor of the garage. Set the instrument on the table and zero it, and the angle of the blade can be adjusted relative to the table instead of the horizon.
David H on Feb 4, 2016
Great for setting table and miter saw blades.
William P on Jan 31, 2016
for easier and more accurate setups and improved quality of work
Donald B on Jan 20, 2016
I saw it at a fellow woodworkers shop
Phil R on Dec 28, 2015
i like the ideal of the flip out display
Steve K on Dec 19, 2015
This is what my husband wanted.
Deanna M on Dec 10, 2015
Needed for my wood working.
Dwight P on Dec 1, 2015
to be sure of angles on .on my older table saw.
Martin L on Sep 29, 2015
I have had on for many years and it recently quit. It is very handy for setting up shop tools.
Elgin M on Sep 18, 2015
To gauge digits.
Mark J on Aug 20, 2015
I have seen other people in my woodworkers club us this and knew I had to have one
William D on Jul 30, 2015
my husband wanted it to make sure some of his tools are strait.
Phyllis S on Apr 27, 2015
For precision on table saw and miter saw
mickey z on Apr 26, 2015
need on sale
G R on Apr 24, 2015
Hopefully this will forego my need to buy an expensive digital gauge setup. Also got an excellent review in FWW that pointed out several uses I did not realize it is capable of.
David G on Apr 8, 2015
needed angle accuracy on table saw blade
Mark B on Mar 5, 2019
the reviews said this was better than lower cost model, i hope they are right
N J on Feb 15, 2019
Is this product more accurate than the less expensive Wixley? The common complaint was table saw blade not at 90 compared to an engineering square. Also some said that if it is zeroed on a flat surface like glass and then turned on its side on the same surface, it doesn't read exactly 90. Is this a better product????? Thanks for taking the time to answer.
JOE Z on Nov 27, 2018
BEST ANSWER: Did not have that problem when I zeroed it first
