Machines dovetails with a shallower 7° angle—ideal for hardwoods or wherever a more delicate look is desired. Machines dovetails with a 14° angle—ideal for softwoods, or wherever a stronger interlocking effect is desired.
Grouped product items
Product Name Price Qty

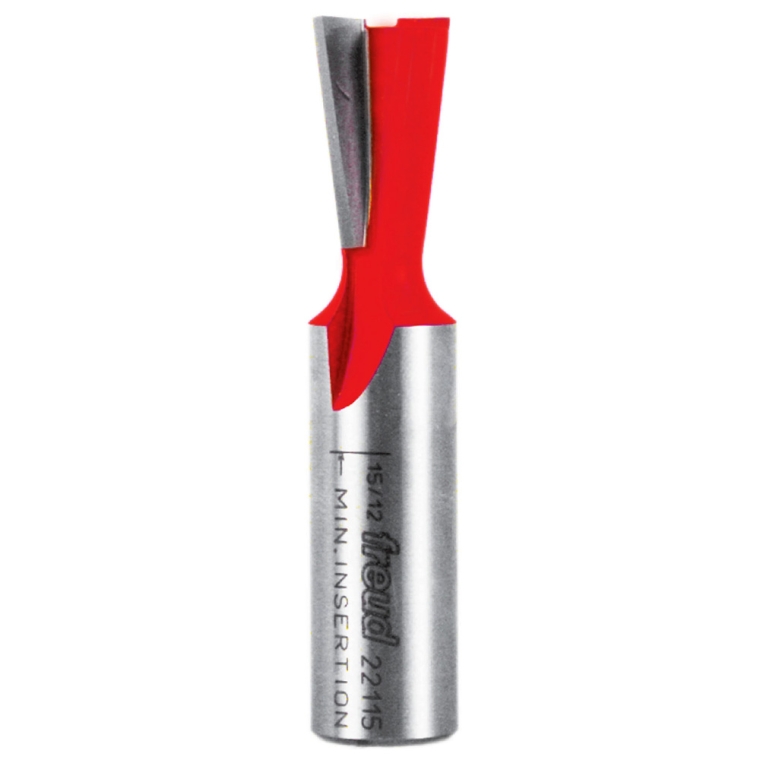

Freud® #22-115 Dovetail Router Bit, 17/32'' D x 25/32''H x 7° x 1/2'' Shank
Freud® #22-115 Dovetail Router Bit, 17/32'' D x 25/32''H x 7° x 1/2'' Shank Item #: 36011
In stock
$27.99
Each

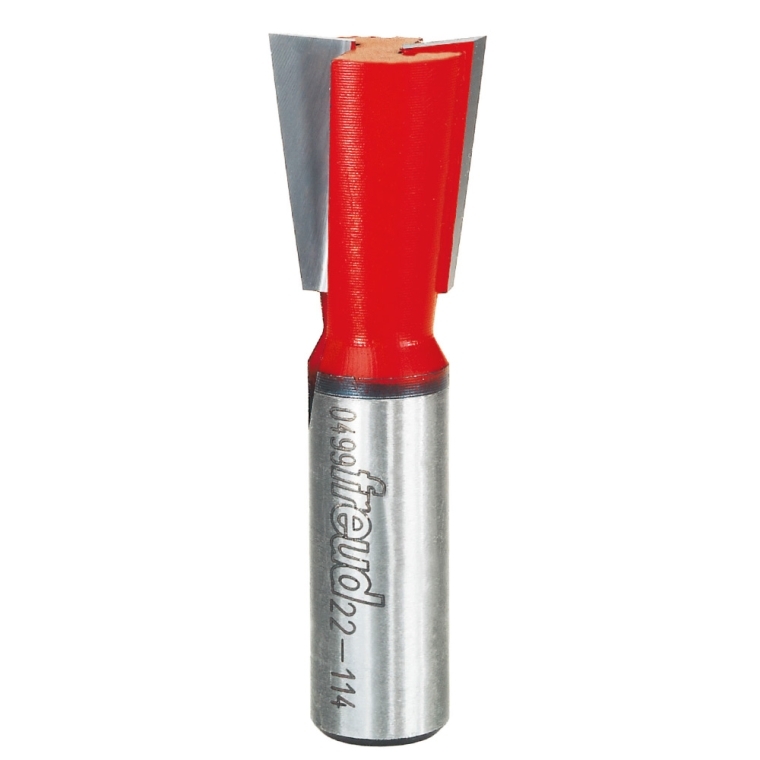

Freud® #22-114 Dovetail Router Bit, 3/4'' D x 7/8''H x 7° x 1/2'' Shank
Freud® #22-114 Dovetail Router Bit, 3/4'' D x 7/8''H x 7° x 1/2'' Shank Item #: 31358
In stock
$24.99
Each

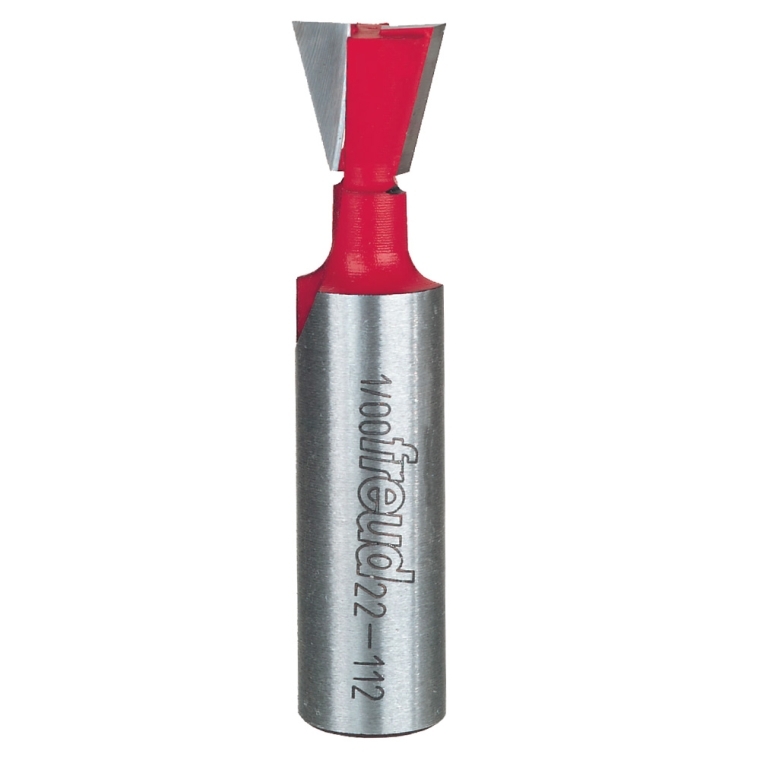

Freud® #22-112 Dovetail Router Bit, 1/2'' D x 1/2''H x 14° x 1/2'' Shank
Freud® #22-112 Dovetail Router Bit, 1/2'' D x 1/2''H x 14° x 1/2'' Shank Item #: 35339
In stock
$24.99
Each

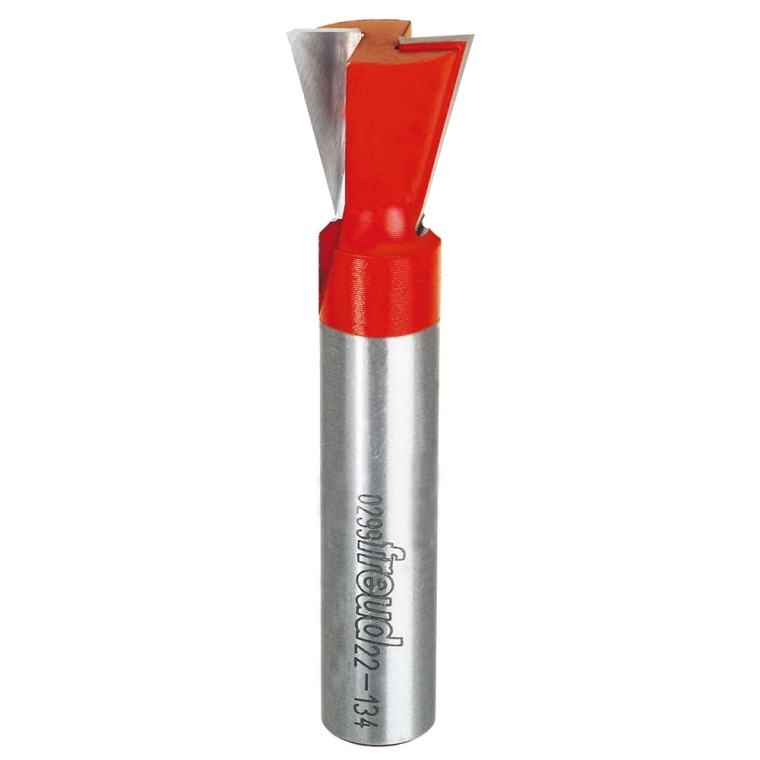

Freud® #22-134 Dovetail Router Bit, 3/4'' D x 3/4''H x 14° x 1/2'' Shank
Freud® #22-134 Dovetail Router Bit, 3/4'' D x 3/4''H x 14° x 1/2'' Shank Item #: 39355
In stock
$30.99
Each

Freud® Dovetail Router Bits - 1/2'' Shank

Item #
GRP40278
Rating:
100% of 100

Create strong, attractive joints for drawers, boxes and carcases with these Freud dovetail router bits. The 7° angle is very close to a 1:8 ratio, which is recommended for joining hardwoods and is very well-suited for decorative purposes such as exposed dovetails. The 14° angle provides a stronger wedging action. This more rigid mechanical interlock is ideal for making softwood dovetail joints, which can tend to loosen over time if the fibers are damaged by racking, but also can be used for hardwood joints where optimum strength is required. Bits are compatible with many popular dovetail jigs.

(1) Freud® Dovetail Router Bit
More Information
Brand Freud
Weight 1.0000
Tech Spec
  • Shank: 1/2''
