$8.99 Each
In stock
Enjoy fast, precise installation of the hinge plates on your concealed Euro-style hinges.

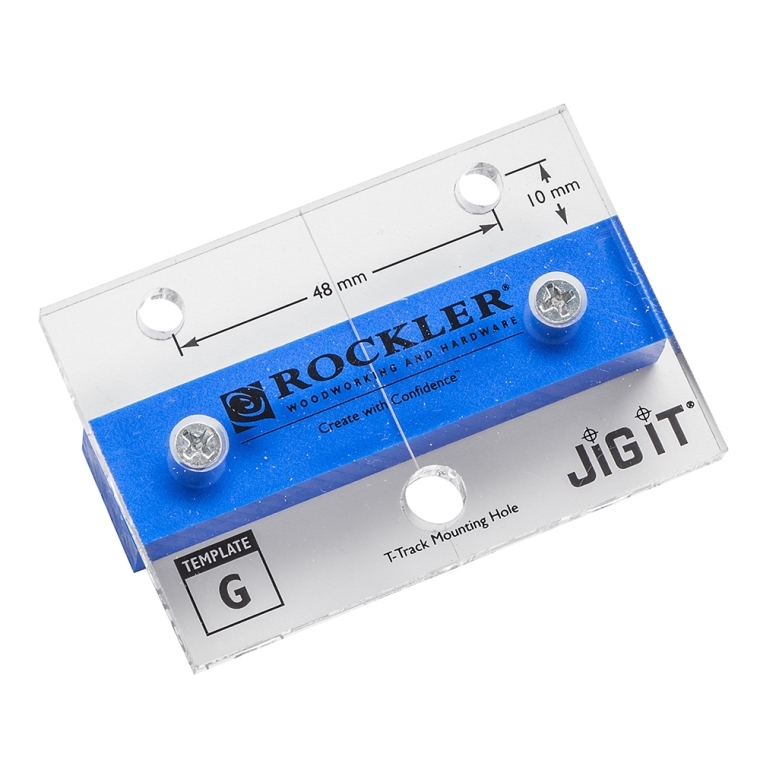

JIG IT® Hinge Plate Template G

Item #
54095
Rating:
90% of 100

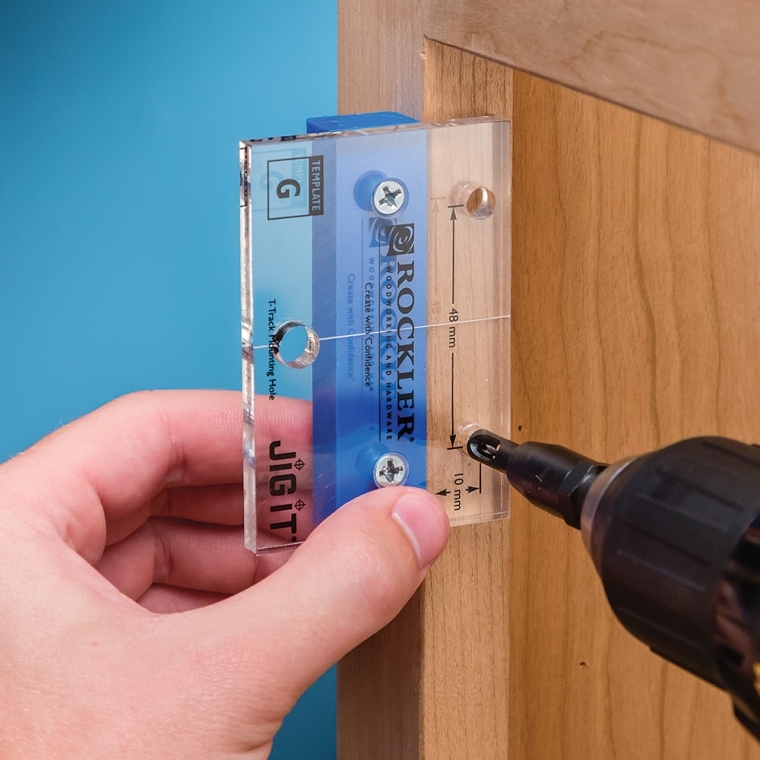

Your doors will swing smoothly and line up neatly every time with our JIG IT® templates to guide your way. Just butt the template up against the face of your cabinet and use a centering bit to drill perfectly positioned mounting holes for a wide variety of concealed hinges. See the compatibility info below for a list of which hinges are compatible with this template. Requires centering bit #68991 (sold separately).

For even faster, more foolproof installation, use several of these templates mounted on one of our T-track rails (e.g. #26420, sold separately). For easier mounting of the cup plate from two-part Euro-style hinges, check out the JIG IT® Deluxe Concealed Hinge Drilling System. It works with your handheld drill to let you bore precisely spaced hinge cup mounting holes on multiple doors.


Features:

  • Installs hinges: #57582, #59449, #50975, #53171, #56763, #54219
  • Use with #6 Self Centering Bit (#68991, sold separately)
  • Clear acrylic for easy alignment with your marks
  • Also includes T-track mounting hole for repeatable alignment and placement of hinges
  • Hole spacing and setback measurements are conveniently printed on the acrylic face for reference
  • Stable, durable polymer fence
(1) JIG IT® Hinge Plate Template G
More Information
Brand Rockler
Manufacturer Part Number No
Weight 0.1000
Tech Spec No
Tech Docs No
Type Hinge
Prop 65 WarningWARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov

Prop 65 WarningWARNING: Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood.
4.5 / 5.0
2 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
1
1
0
0
0
Best tool evet
July 24, 2018
Purchased
2 months ago
Woodworking Experience:
Advanced
Good
Easy to use and accurate.
February 13, 2017
Purchased
over 2 years ago
Woodworking Experience:
Advanced
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 1 question Browse 1 question and 2 answers
Why did you choose this?
Rockler Store
to make getting the salice 105 soft-close long arm hinges straight in the cabinet.
jeffrey B on Aug 3, 2018
to make getting the salice 105 soft-close long arm hinges straight in the cabinet.
jeffrey B on Aug 3, 2018
Handy for repeated installs
tony c on Jan 24, 2016
Handy for repeated installs
tony c on Jan 24, 2016
