$24.99 Each
In stock
Use this extra-long router bit to rout out the deep mortises that accept the lid stays on quadrant hinges.

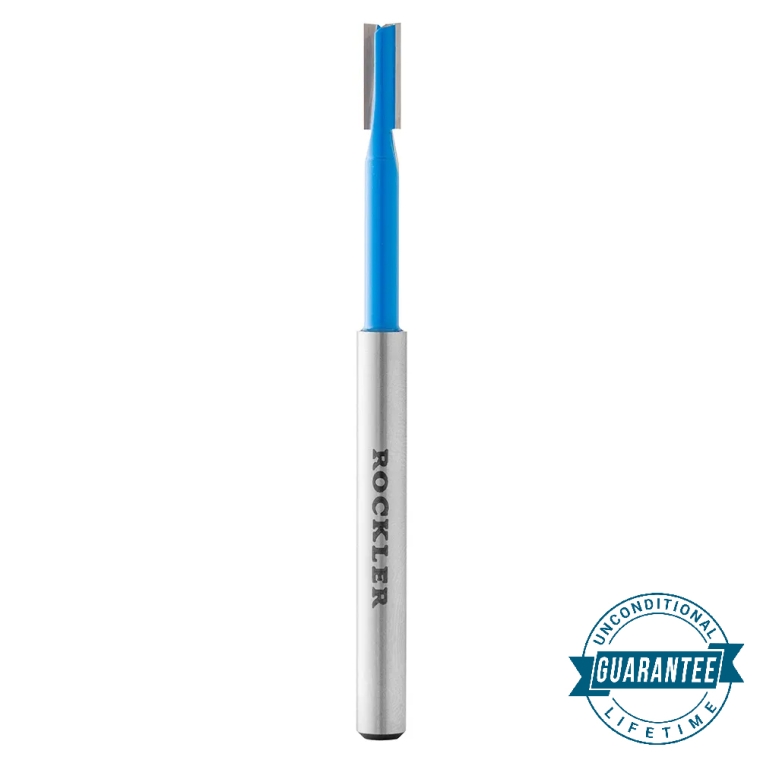

Rockler Extra-Long Quadrant Hinge Router Bit

Item #
56249
Rating:
100% of 100

Installing quadrant hinges requires that you not only rout out the mortise for the hinge plate itself, but also a deeper mortise that accepts the lid stay. This router bit provides the extra length needed to reach the bottom of the mortise. This means there is no drilling or chiseling required, resulting in a faster, more precise installation.


NOTE: Multiple passes should be used to rout out the mortise.

(1) Rockler Extra-Long Quadrant Hinge Router Bit
More Information
Brand Rockler
Weight 0.0500
Tech Spec
  • Overall Length: 3-1/2''
  • Carbide Length: 1/2''
  • Carbide Diameter: 3/16''
  • Shank: 1/4''
  • Flutes: 2
Prop 65 WarningWARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov

Prop 65 WarningWARNING: Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood.
5.0 / 5.0
6 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
6
0
0
0
0
Quadra hing with one bit
First use was on two humidors and the using the extra length bit permitted all the mortise and deep cuts to be done with one bit on a compact router. Saved time without swapping out bits. Used the Jig-it system with the large quadrant hing template. Beats using a small chisel the clean up drilled holes.
July 6, 2019
Purchased
3 months ago
Woodworking Experience:
Advanced
router bit
solves the problem of deep mortise for quadrant hinge
July 17, 2018
Purchased
1 year ago
Use this bit or a foster bit to cut the deep hole required for quadrant hinges using the jigit system.
May 25, 2018
Purchased
over 3 years ago
Woodworking Experience:
Intermediate
Perfection
Well i did not use the guadra router bit for the hinge but i needed the length for a guitar project and it was perfect. I have a large collection of rockler router bit and there great
April 26, 2018
Purchased
1 year ago
Woodworking Experience:
Advanced
So much better and faster than a drill and chisel
May 11, 2017
Purchased
over 2 years ago
Woodworking Experience:
Beginner
Quadrant mortising bit.
Worked as expected. Must make multiple passes to go deep, of course.
January 2, 2017
Purchased
over 2 years ago
Woodworking Experience:
Advanced
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 1 question Browse 1 question and 2 answers
Why did you choose this?
Rockler Store
For quadrant hinge instillation.
Dan B on Jun 19, 2019
I bought a jig it and wasn't told at the time that I needed it. Your postage is outrageous, first class would be half price and get here quicker.
Gary R on Jul 11, 2017
For quadrant hinge instillation.
Dan B on Jun 19, 2019
Hoping it would be faster and easier than a Forstner bit and chisel and leave a cleaning cavity for the quadra hinge.
KEN C on Jun 6, 2019
I bought a jig it and wasn't told at the time that I needed it. Your postage is outrageous, first class would be half price and get here quicker.
Gary R on Jul 11, 2017
Need it to do quadrant hinge routing.
M E on May 21, 2017
making boxes with quadrant hinges
Gary C on Jan 4, 2017
Need it for proper quadrant hinge instalation
Joshua F on Dec 28, 2016
Time saver
Jack A on Dec 27, 2016
Necessary to make deep mortise cut for quadrant hinge lid stays.
Roberto H on Nov 30, 2016
need it for jig it system
Robbi T on Nov 22, 2016
Because it's required
Brian D on Oct 20, 2016
Used per Jig requirement for routing.
Dipak P on Oct 3, 2016
Only place we could locate the item in Houston.
David M on Sep 7, 2016
Because I bought the template but can't create deep enough mortises. This should be listed with the template guide so that people know they need it.
TIM S on Jul 31, 2016
Needed it for the hinges on my humidor box.
Nicholas S on Jun 13, 2016
I don't have a 3-16 th bit
Johnny S on May 7, 2016
for cutting hinges into music box
janelle on May 4, 2016
Ease of installing quadrant hinges
Alexander B on Mar 26, 2016
To complete a Humidor Project
George J on Mar 21, 2016
Hoping it would be faster and easier than a Forstner bit and chisel and leave a cleaning cavity for the quadra hinge.
KEN C on Jun 6, 2019
Need it to do quadrant hinge routing.
M E on May 21, 2017
How long is the 3/16th part of the bit on the Rockler Extra-Long Quadrant Hinge Router Bit
Item #: 56249?
Charlie P. on Feb 25, 2017
BEST ANSWER: The Cutting length is 1/2"
overall length is 3 1/2"
Grip Shank length is 2"
