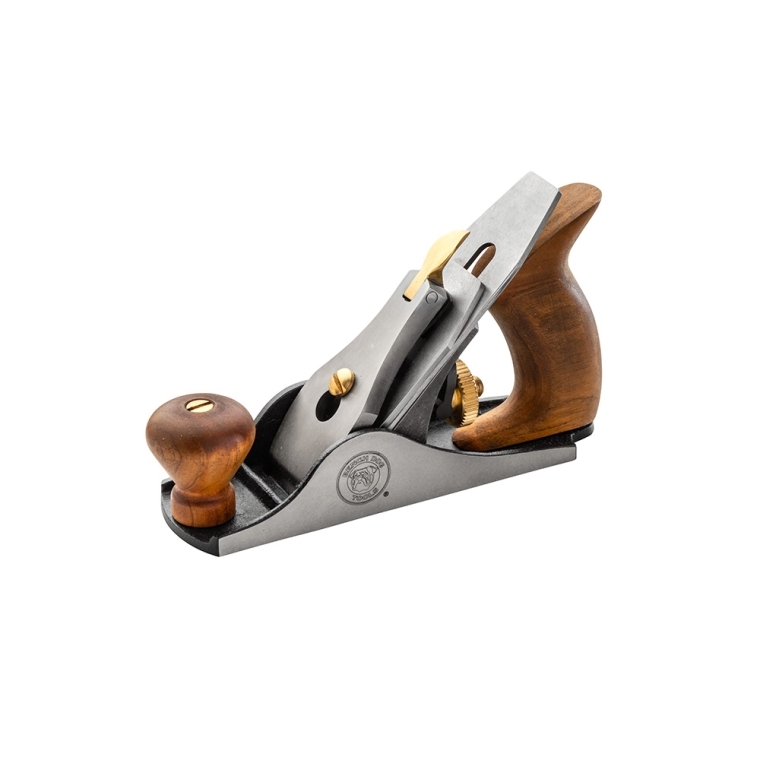

Bench Dog No. 1 Smoothing Plane

Item #
78708

A smoothing plane in the size of a block plane—great for cleaning up small trouble spots of reversing grain.

More details
$124.99 Each
How do you want your item?
Or Buy These Together
Please select at least one addon to add it to the cart.
Total Price Taxes estimated at checkout
$379.95

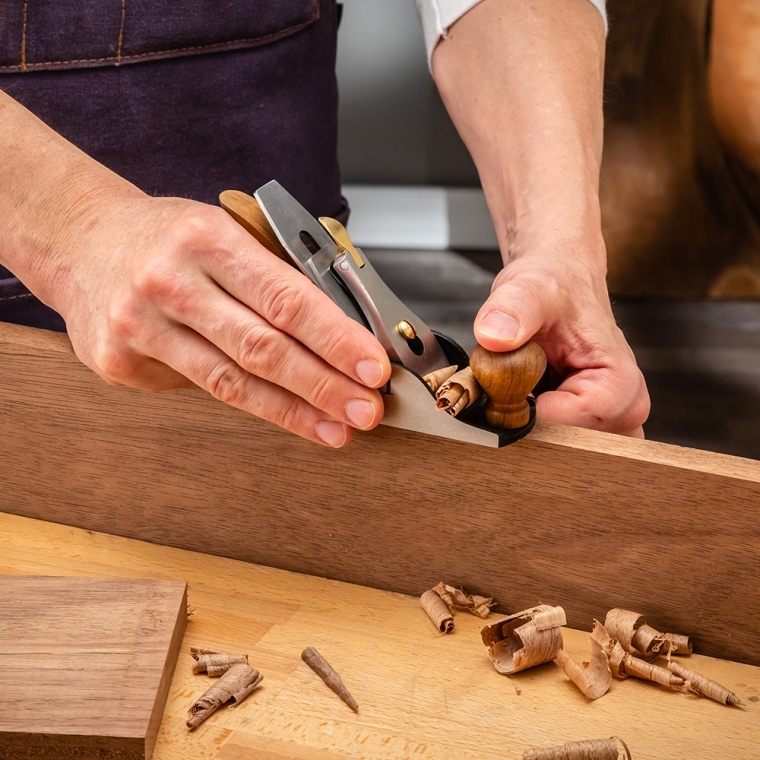

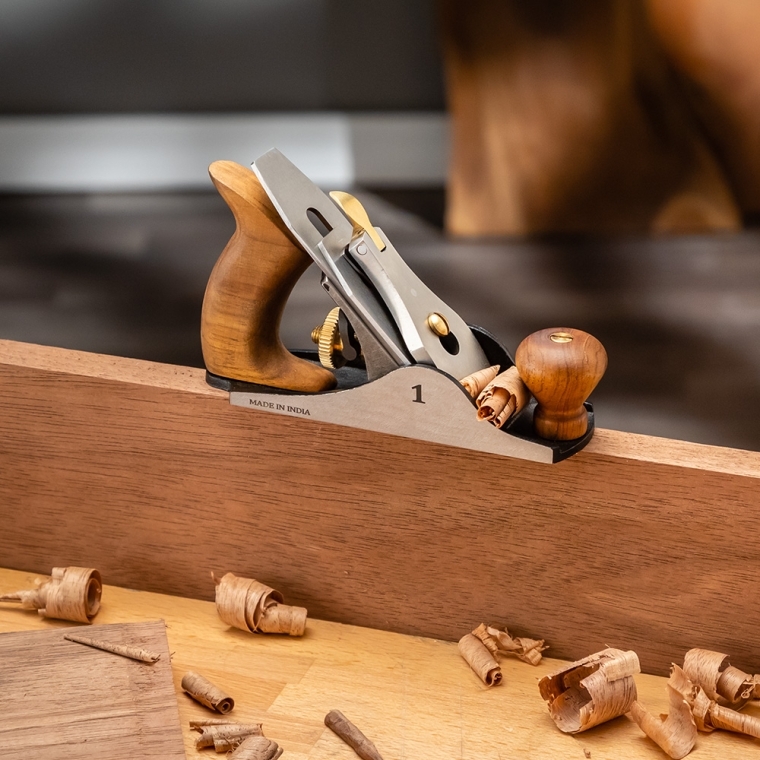

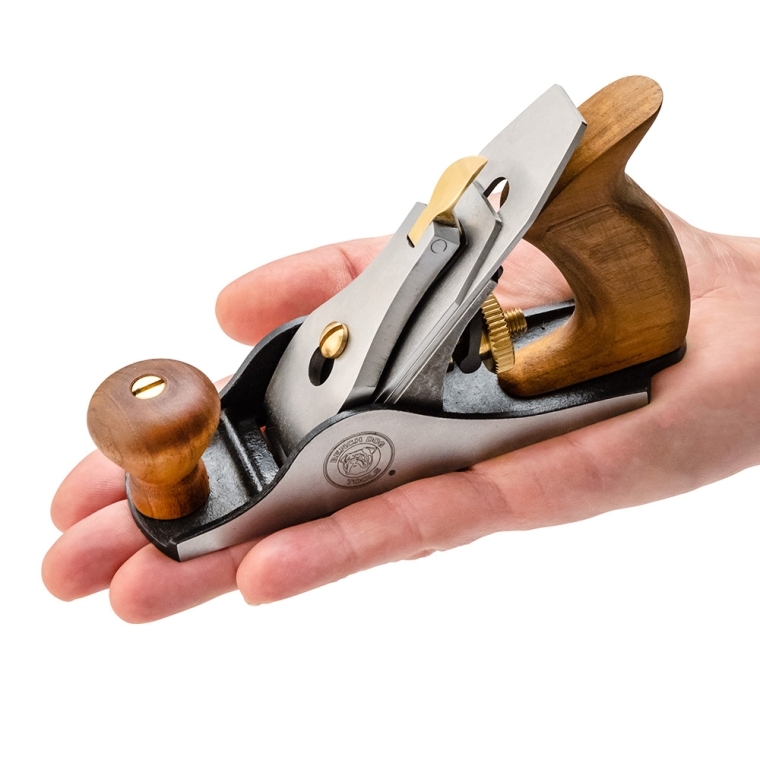

The diminutive (and dare we say adorable) Bench Dog #1 is a smoothing plane in the size of a block plane. It is typically held with one hand, with the tote tucked into the web of your thumb and your fingers lightly cupping the cheeks of the plane. However, it may also be used with two hands for negotiating tricky grain. Thanks to its high angle, which helps to tame tear-out, it is the ideal solution for cleaning up problem areas in large panels with reversing grain.

Bench Dog® No. 1 Smoothing Plane Details:

  • Based on the Stanley No. 1 plane—loosely equivalent to a block plane in size
  • Rear handle and front tote allow one- or two-handed use
  • Made for small detail work and smoothing operations
  • Good for cleaning up areas of tear-out

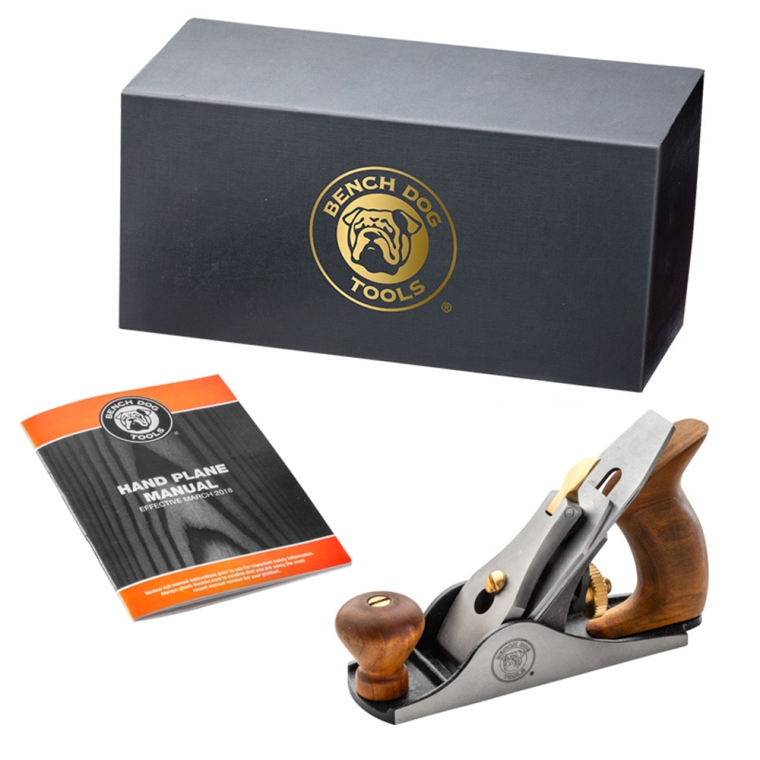

(1) Bench Dog No. 1 Smoothing Plane
(1) Black storage box
(1) Certificate of inspection
(1) Owner's manual

More Information
Brand Rockler Bench Dog
Manufacturer Part Number 270040
Weight 1.85
Tech Spec
  • Brand: Bench Dog
  • Plane Model: No. 1 Smoothing Plane
  • Plane Weight: 1.25 pounds
  • Sole Flatness: 0.0015-0.002'' tolerance
  • Sole Length: 5.67''
  • Sole Width: 1.61''
  • Blade Width: 1.21''
  • Blade Thickness: 0.078''
  • Blade Bevel Angle: 25°
  • Blade Bevel Up/Down: Down
  • Blade Hardness: 55-60 HRC
  • Frog/Blade Seat Angle: 45°
  • Handle Material: Sapele
  • Body Material: Cast iron
  • Blade Material: Hardened carbon steel
  • Lever Cap Material: Cast iron, Brass
Unit of Measure Each
