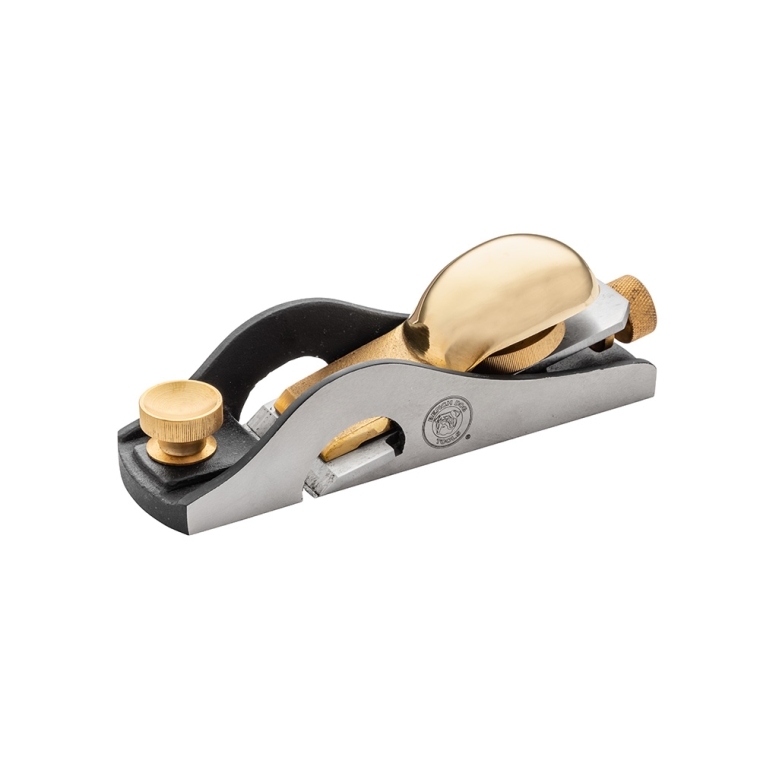

Bench Dog Rabbeting Block Plane

Item #
75636

Full-width iron extends to the edges of both cheeks for smooth, precise rabbets and finishing cuts on raised panels.

More details
$114.99 Each
How do you want your item?
Or Buy These Together
Please select at least one addon to add it to the cart.
Total Price Taxes estimated at checkout
$399.95

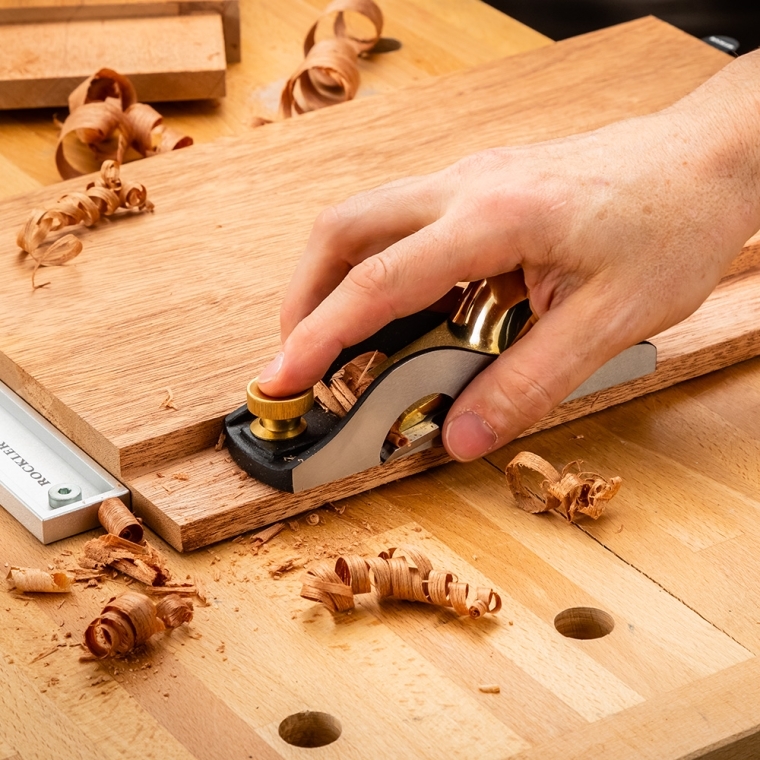

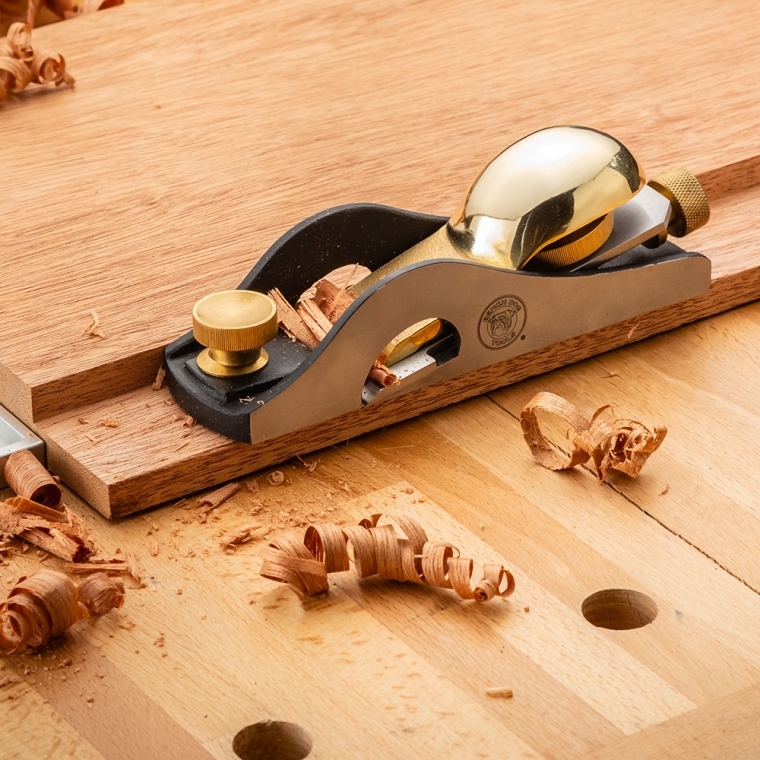

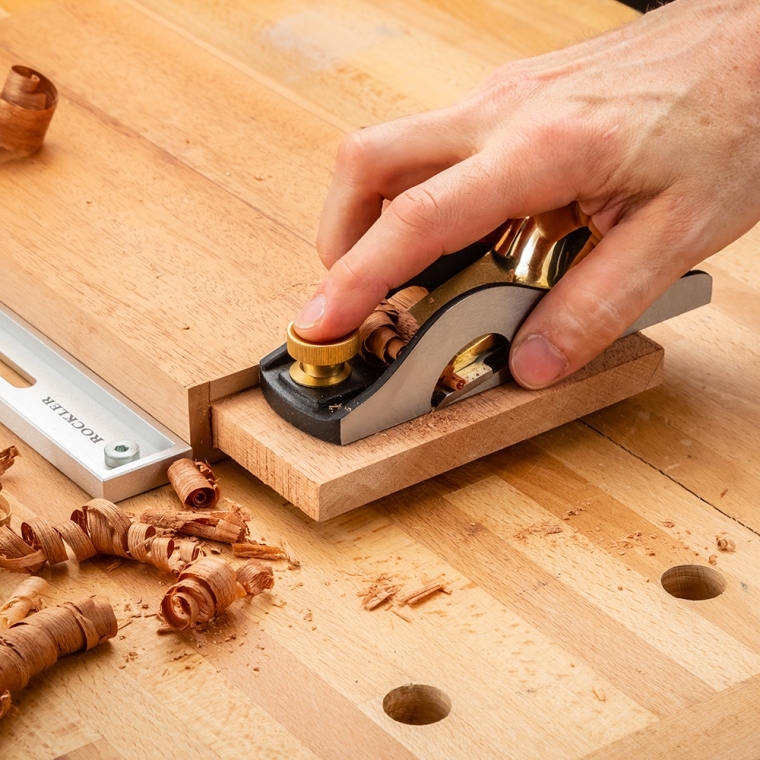

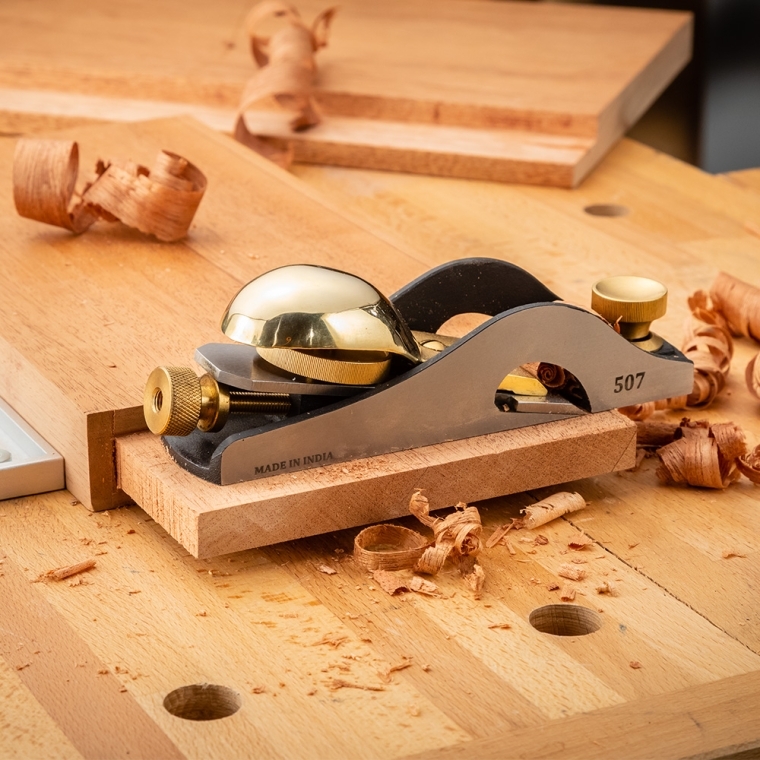

With open sides on both cheeks of the plane, the Bench Dog Rabbeting Block Plane reaches into corners to take thin, precise shavings, leaving a perfect 90° angle and a surface like no other. Because it's open on both sides, it can be used to plane in either direction, depending on the direction of the grain. Not only that, it also performs like a champ for tasks that a typical block plane would be used for, such as planing end grain and cleaning up small bits of tear-out caused by reversing grain in the middle of a board.

Bench Dog® Rabbeting Block Plane Details:

  • Ideal for cutting small rabbets or trimming tenons to fit
  • Also can be used as a standard block plane

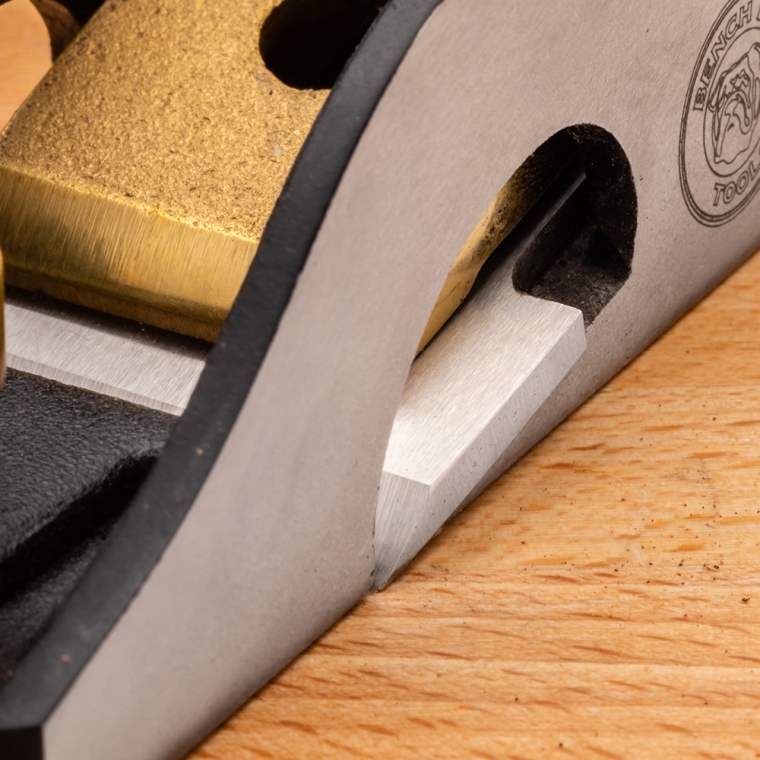

  • Features open sides and a blade that extends the full width of the plane
  • Lets you plane right up to the shoulders of tenons or rabbets

(1) Bench Dog Rabbeting Block Plane
(1) Plane sock
(1) Black storage box
(1) Certificate of inspection
(1) Owner's manual

More Information
Brand Rockler Bench Dog
Manufacturer Part Number 250600-N
Weight 2.50
Tech Spec
  • Brand: Bench Dog
  • Plane Model: No. 507 Rabbeting Block Plane
  • Plane Weight: 1.6 pounds
  • Sole Flatness: 0.0015-0.002'' tolerance
  • Sole Length: 6.3''
  • Sole Width: 1.72''
  • Blade Width: 1.72''
  • Blade Thickness: 0.118''
  • Blade Bevel Angle: 25°
  • Blade Bevel Up/Down: Up
  • Blade Hardness: 55-60 HRC
  • Frog/Blade Seat Angle: 12°
  • Body Material: Cast iron
  • Blade Material: Hardened carbon steel
  • Lever Cap Material: Brass
