Bench Dog No. 7 Jointer Plane

Extra-long sole quickly levels dips and high spots—ideal for edge jointing and final flattening of surfaces before smoothing.
Item #
58682
$349.99 Each
In stock

Get Expert Advice

Return Policy

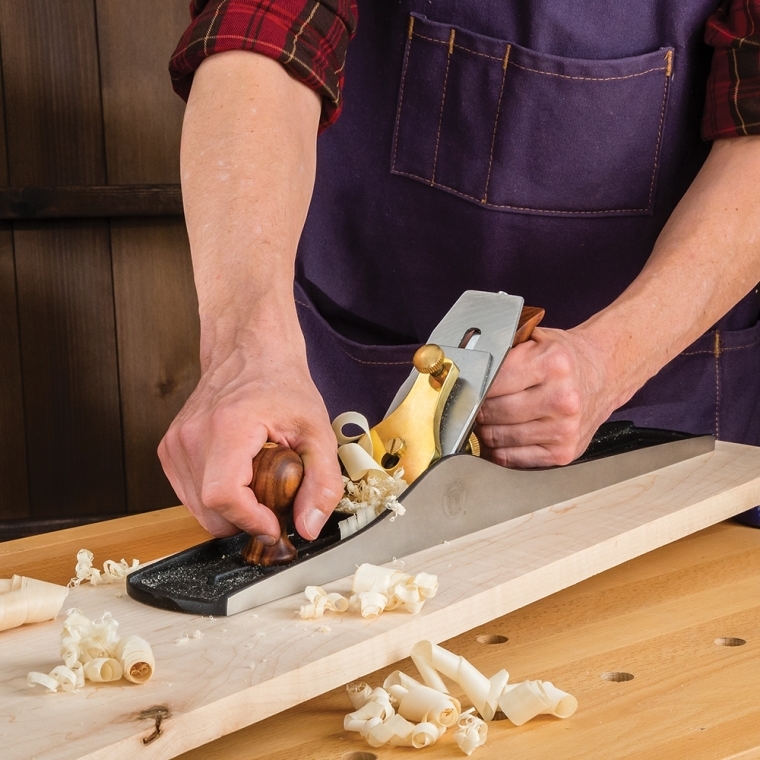

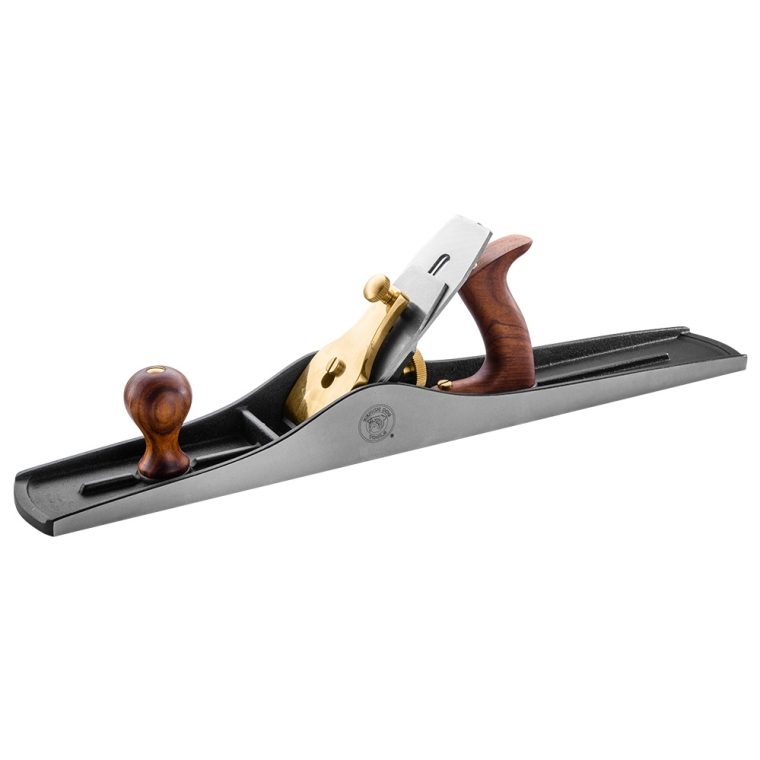

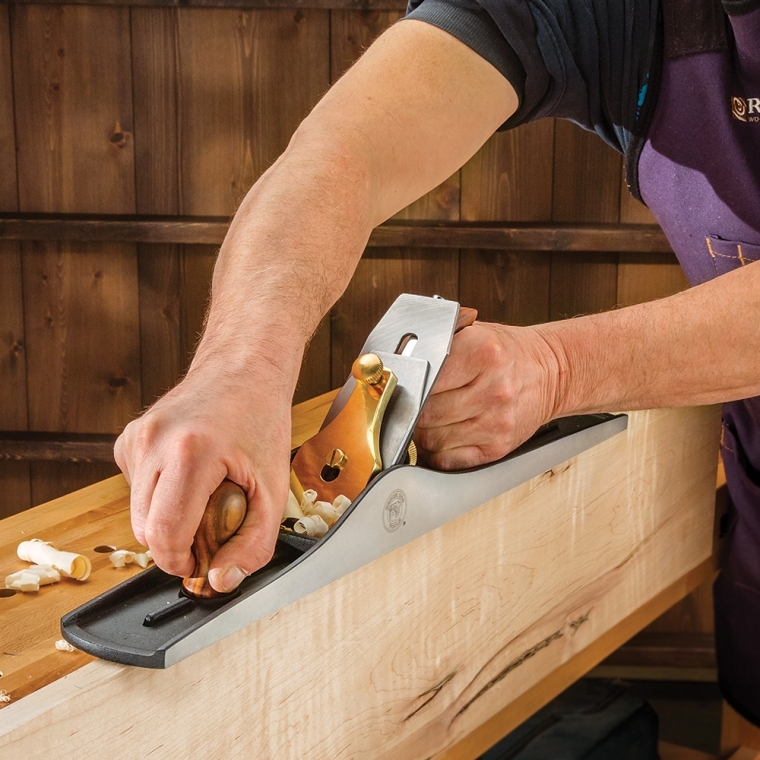

Bench Dog's No. 7 Jointer Plane is the longest in the bench plane lineup. Thanks to it's lengthy sole, it quickly levels dips and high spots to produce a straight, square edge prior to edge joining. It also performs the final flattening of surfaces before finishing with a smoothing plane. Quality materials, precision machining and solid construction result in a hand plane that's an absolute pleasure to use. The sole is precision ground flat. The blade is made from thick 1/8'' hardened carbon steel for reduced chatter and excellent edge retention. Solid sapele is used for the comfortable tote and knob, adding a touch of elegance. Each plane includes a case, sock, manual and a Certificate of Inspection with measurements specific to your plane for sole flatness and blade hardness.

Features:

  • Ideal for edge jointing and final flattening of surfaces before smoothing
  • Ductile cast iron body for superior strength and resistance to impact
  • Adjustable frog lets you narrow the blade opening for fine shavings
  • Easy depth-of-cut adjustment and lateral blade adjustment
  • Solid brass cap iron and threaded fittings for smooth action
  • Sole of plane and back of blade are flat to tight tolerances
  • Blade and sole are treated with a protective layer of oil
  • Certificate of Inspection included for each tool
  • Minimal setup and tuning required before use

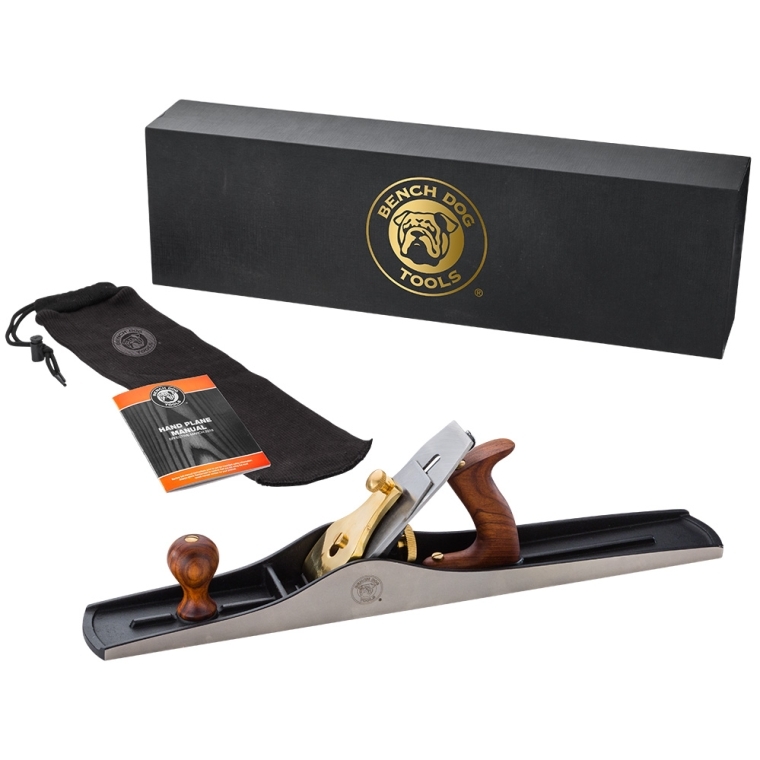

(1) Bench Dog® Tools No.7 Jointer Plane
(1) Plane sock
(1) Black storage case
(1) Certificate of Inspection
(1) Owner's manual

More Information
Brand Bench Dog
Weight 11.250000
Tech Spec
  • Plane Model: No. 7 Jointer Plane
  • Plane Weight: 8.37 pounds
  • Sole Flatness: 0.002'' to 0.004'' tolerance
  • Sole Length: 21-7/8''
  • Sole Width: 3''
  • Blade Width: 2-3/8''
  • Blade Thickness: About 1/8''
  • Blade Bevel Angle: 25°
  • Blade Bevel Up/Down: Down
  • Blade Hardness: 55-60 HRC
  • Frog/Blade Seat Angle: 45°
  • Tote and Knob Material: Sapele
  • Body Material: Cast iron
  • Blade Material: Hardened carbon steel
  • Lever Cap Material: Brass
Type Jointer Planes
