$167.97 Each
In stock
This incredible value packs five solid carbide up-cut spiral router bits into one neat wooden case: 3/16", 1/4", 5/16", 3/8" and 1/2".

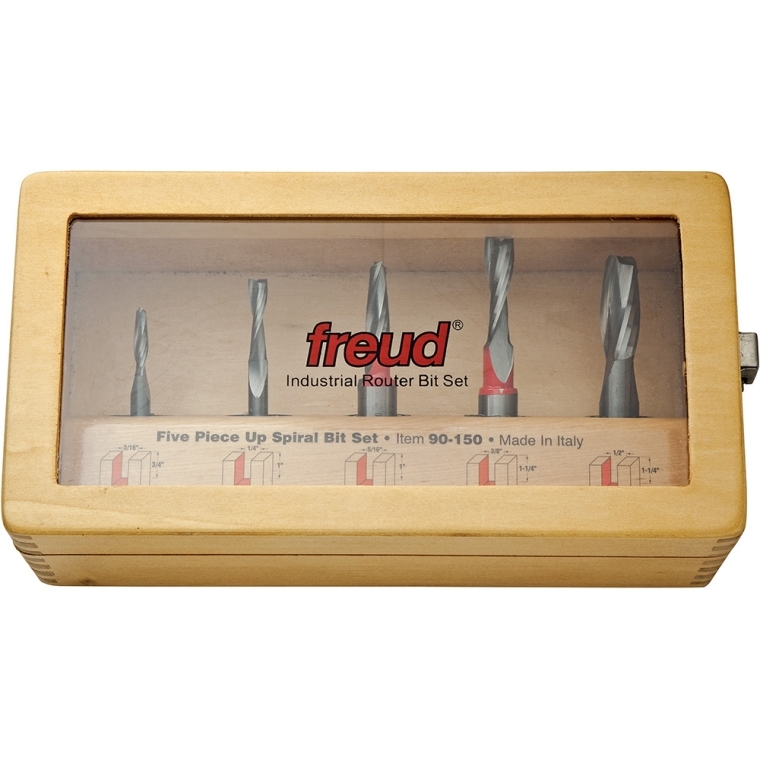

Freud® 90-150 5-Pc. Up Cut Spiral Router Bit Set

Item #
47782
Rating:
96% of 100

Up-cut router bits are ideal for efficient chip ejection when cutting mortises, dado cuts, and deep blind holes, and also where speed of cut is the primary consideration. They also work perfectly for template routing when the bottom side of the project must be kept chip-free. The bit set comes packed in Freud's unique shadow box case, which can hang on the wall or mount on the bench, and features a tip-out shelf for easy access.

  • Solid carbide construction for long-lasting, razor sharp cutting edges.
  • Bits cut all composite materials, plywoods, hardwoods and softwoods.
  • Use on CNC and other automatic routers as well as hand-held and table-mounted portable routers.

Up-Cut Spiral Bit (75-101)

  • Overall Diameter: 3/16"
  • Carbide Height: 3/4"
  • Shank Diameter: 1/4"
  • Overall Length: 2"

Up-Cut Spiral Bit (75-102)

  • Overall Diameter: 1/4"
  • Carbide Height: 1"
  • Shank Diameter: 1/4"
  • Overall Length: 2-1/2"

Up-Cut Spiral Bit (75-104)

  • Overall Diameter: 5/16"
  • Carbide Height: 1"
  • Shank Diameter: 1/2"
  • Overall Length: 3"

Up-Cut Spiral Bit (75-106)

  • Overall Diameter: 3/8"
  • Carbide Height: 1-1/4"
  • Shank Diameter: 1/2"
  • Overall Length: 3"

Up-Cut Spiral Bit (75-108)

  • Overall Diameter: 1/2"
  • Carbide Height: 1-1/4"
  • Shank Diameter: 1/2"
  • Overall Length: 3"

Freud 90-150 5-Piece Spiral Up-Cut Router Bit Set:
(1) 75-101 Up-Cut Spiral Router Bit
(1) 75-102 Up-Cut Spiral Router Bit
(1) 75-104 Up-Cut Spiral Router Bit
(1) 75-106 Up-Cut Spiral Router Bit
(1) 75-108 Up-Cut Spiral Router Bit
(1) Wooden Case
More Information
Brand Freud
Manufacturer Part Number 90-150
Weight 1.8000
Bit Type Spiral
Diameter 1/2", 1/4", 3/16", 3/8", 5/16"
Flutes 2
4.8 / 5.0
6 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
5
1
0
0
0
A good buy
High-quality set, as expected from Freud; difficult to remove bits from the case without injury to bits or fingers; removed plastic inserts, leaving the bits loose but safely-stored.
July 18, 2019
Purchased
3 months ago
Woodworking Experience:
Intermediate
Great set and a fair price.
April 12, 2019
Purchased
6 months ago
Simply the best..... Freud.
December 14, 2018
Purchased
10 months ago
Woodworking Experience:
Advanced
Easy to use
Awesome product
October 22, 2017
Purchased
1 year ago
Woodworking Experience:
Intermediate
Worth every Penny
These are great bits, worth every penny spent on them--upgraded from the HSS ones, it is no comparison.
March 8, 2016
Purchased
over 3 years ago
Woodworking Experience:
Intermediate
Great bits, have worked well in MDF and pine. Almost impossible to get out of the packaging without a pliers, but one they're out they seem to do a pretty good job. Would still give 4 stars either way.
March 5, 2017
Purchased
over 2 years ago
Woodworking Experience:
Intermediate
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 1 question Browse 1 question and 2 answers
Why did you choose this?
Rockler Store
Free hand mortising etc
Peter S on May 1, 2019
General use
Michael M on Dec 12, 2018
Free hand mortising etc
Peter S on May 1, 2019
I'm doing mortices for some tables
James S on Jan 18, 2019
General use
Michael M on Dec 12, 2018
To use with new box sled. Wish they were sold az the kit
Charles S on Aug 17, 2018
To use for mortising
Daniel L on Dec 9, 2017
Did not have a set
Joe K on Apr 17, 2017
Building up my shop.
Dennis F on Jan 6, 2017
the brand name and the fact that I needed them
Vincent T on Sep 24, 2016
Cutting groves
Aaron R on Dec 1, 2015
These are carbide. You pay a bit more for carbide but worth it.
Rose B on May 9, 2015
Best quality you can imagine
Kevin L on Apr 19, 2015
Great addition to allow me multiple size mortises with my new tendon and mortise jig.
Scott P on Apr 9, 2015
I'm doing mortices for some tables
James S on Jan 18, 2019
To use with new box sled. Wish they were sold az the kit
Charles S on Aug 17, 2018
Hi! i'm using 3/8 router bit (from "Freud® 90-150 5-Pc. Up Cut Spiral Router Bit Set" i bought together with this jig) and thee 3/8 indexing key. When putting a routed space over the key, the sled get stuck. It's like the indexing key is just a bit bigger than the router bit. I noticed it happens more with olive-wood than with MDF. Is there any suggestion? Thanks
BoazDovev on Jul 27, 2017
Freud® 90-150 5-Pc. Up Cut Spiral Router Bit Set
Freud® 90-150 5-Pc. Up Cut Spiral Router Bit Set
Rockler Router Table Box Joint Jig
Rockler Router Table Box Joint Jig
BEST ANSWER: If I understand your problem, when you cut the slot in the backer board it is very tight to the alum. guide.
I have found the same condition . I double cut through each slot, time consuming. Next time I use it I will sand a little off the alum. guide trying to stay above the work surface.?????
