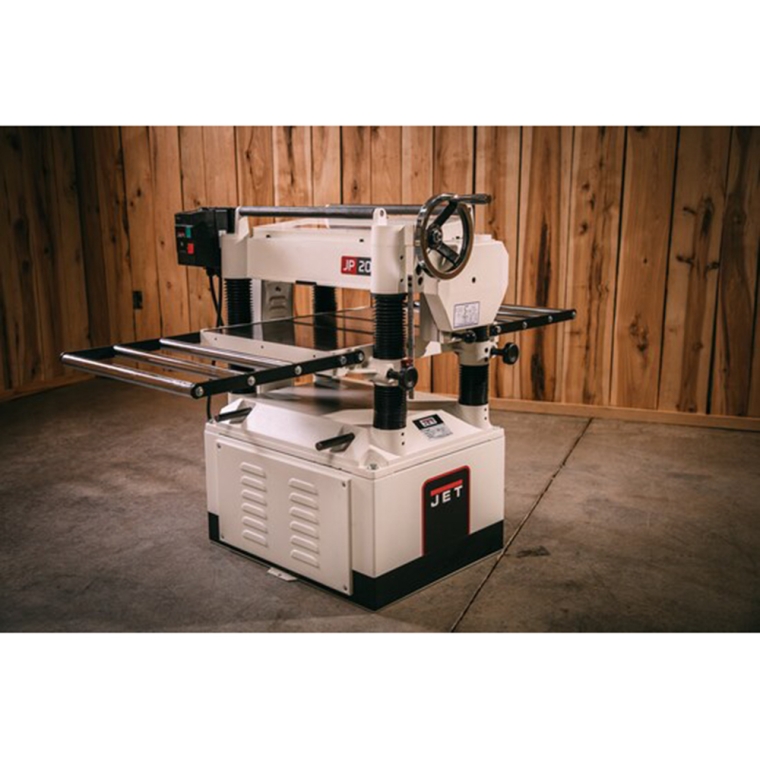

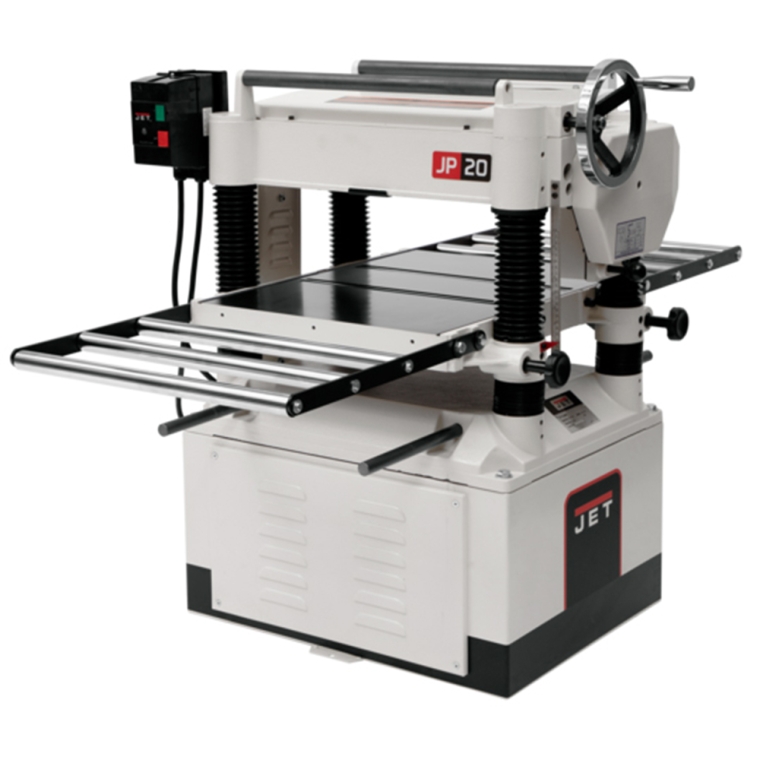

Jet® 20'' 3HP Planer Zoom

Jet® 20'' 3HP Planer

Item #: 22340
Direct Ship (Online Only)
$2,345.99
Each
Sign up for price alert Add to Wishlist Find in Store

* Required Fields

Overview

The JET JWP-208-1 planer quickly and quietly transforms rough lumber into smooth boards, with a full 20" planing width. Its heavy-duty cast iron and steel construction keeps the workpiece steady and supported, while the conveniently located two-speed gear box allows for quick and easy feed rate adjustments. This machine means business with a powerful 3 HP induction motor. You'll appreciate the sets of three steel infeed and outfeed rollers to help prevent annoying snipe. A large cast-iron table with smooth-as-glass surface makes this planer a beautiful addition to the shop. And since planers kick up a lot of dust, we made dust collection easy with an exclusive angled 4" dust port to keep your hose out of the way.


Features:
  • Four high-speed steel cutter knives produce faster, smoother cutting
  • Heavy-duty cast iron and steel construction for added strength and durability

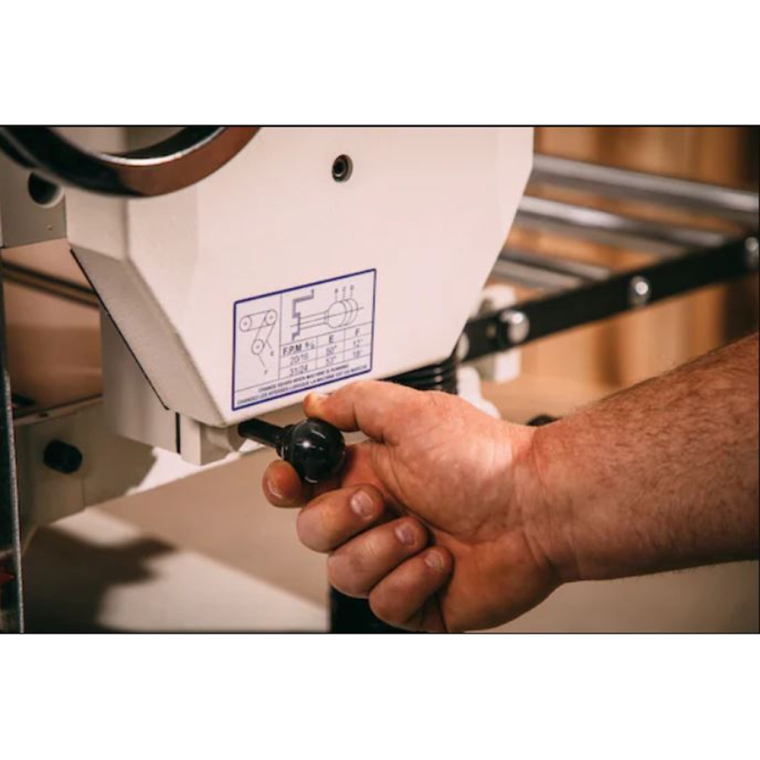

  • Two-speed gear box with automatic chain tensioner lets you adjust the feed rate to meet your needs
  • Large, cast iron, precision ground table for precise workpiece support
  • Powerful 3 HP TEFC induction motor with three V-belt transmission for smooth and consistent power
  • Sets of three steel infeed and outfeed rollers to help in the prevention of snipe
  • Positive gear drive moves table quickly and accurately
  • Work table is precision-ground and polished for consistently smooth operation
  • Large handwheel with positive gear drive allows for quick and accurately table adjustments
  • 1/16" increment height scale lets you make the most precise adjustments for fine cuts
  • 5" dust port provides efficient chip and dust collection
  • One-piece welded steel base offers solid support and stability
  • Magnetic controls provide long life and reliability
  • Dust hood with 5" port

Important Notes

  • There is an additional $95.00 shipping charge for this item.
  • Ships directly from the manufacturer.
  • Must be shipped within 48 Contiguous United States.
  • Estimated Delivery time: 15 business days.
  • The carrier will need to know if delivery is to a residential address (we'll ask you about that during checkout). There is no charge for this.
  • The delivery truck will need a lift gate if loading dock is not available. There is no charge for this.
  • 15% restocking fee on all returned merchandise.
  • Please call customer service before returning product.

What's included

(1) Jet® 20'' 3HP Planer
(4) High Speed Steel Knives
(1) Knife Setting Gauge

Technical Details

  • Model Number: JWP-16OS
  • Height: 30"
  • Width: 22"
  • Length: 32"
  • Net Weight: 531 lbs
  • Maximum Planing: 16"
  • Maximum Planing Thickness: 6"
  • Max. Full Width Depth of Cut: 1/8"
  • Maximum Depth of Cut: 3/16"
  • Minimum Planing Length: 8"
  • Cutterhead Diameter: 2-7/8"
  • Cutterhead Speed: 4500 RPM
  • Cuts Per Minute: 13500
  • Feed Rate: 16 and 20 FPM
  • Dust Collection Min. CFM Required: 400 cu.ft/min
  • Blade Size: 16-1/8" x 1" x 1/8"
  • 24V magnetic controls
  • Amps: 15 A
  • Motor Phase: 1 Ph
  • Motor Voltage: 230 V
  • Brand: Jet
  • Manufacturer Part Number: 708528
  • Weight (lbs): 0.0000
  • Planer Blade Size: 20"
  • Planer Cutter Head Speed: 4500 RPM
  • HP: 3 HP
  • Dust Collection: 5" Port
  • Maximum Depth of Cut: 1/8"
  • Number of Knives: 4
