$10.99 Each
In stock
Helps you quickly and accurately set up your drill press for 35mm cup holes.

JIG IT® Hinge Cup Drilling Jig, 5mm Tab

Item #
58488
Rating:
60% of 100

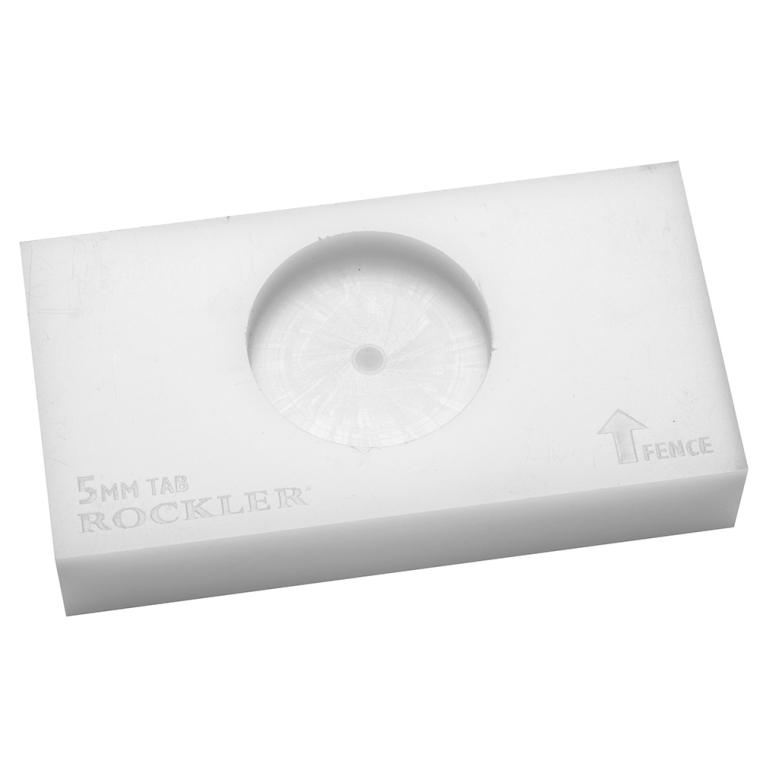

JIG IT® Hinge Cup Drilling Jig, 5mm Tab
JIG IT® Hinge Cup Drilling Jig, 5mm Tab

Here's an accurate and inexpensive way to set up your drill press for boring the large diameter holes required for cup hinges. Simply align your fence with the hole in the jig, then tighten down your fence. You'll get consistently accurate holes with a perfectly set ''tab'' for your hinge. Set up couldn't be any easier!


Features:

  • Appropriate ''tab'' (distance from door edge to edge of cup hole) is laser-etched onto the JIG-IT
  • Made from stable, durable HDPE material
  • Drilling jigs available for 35mm cup holes
(1) JIG IT® Hinge Cup Drilling Jig
More Information
Brand Rockler
Manufacturer Part Number No
Weight 0.2000
Tech Spec
  • Made in USA
Technical Documents No
Type Hinge
Prop 65 WarningWARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov

Prop 65 WarningWARNING: Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood.
3.0 / 5.0
4 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
0
2
1
0
1
A bit pricey for what it is.
Definitely works, it would be nice for them to specify what hinges it works on other than the ones purchased.
March 15, 2018
Purchased
8 months ago
Woodworking Experience:
Intermediate
Works as advertized
The instructions of how to use. This jig are imposed on the jig itself. However, they are not here in a contrasting color and therefore can be easily overlooked and not followed. Pay attention!
June 17, 2017
Purchased
1 year ago
Woodworking Experience:
Advanced
Unnecessary??
These work great for setting up your drill press. But after using this one I have just built my own with a small piece of hardwood. Just don’t think they are worth it. If you just want the convenience go for it.
December 8, 2017
Purchased
1 year ago
Woodworking Experience:
Intermediate
Waste of money
Wasted $10, 35mm Forstner bit does not fit into cup and the labeling is difficult if not impossible to read which is an issue if you have several of them at 5mm, 4mm, 3mm, etc. I just went back to my wooden ones that I made free from a scrap of stile. Just spend 5 min and get your measurements dialed in perfect and cut it from wood
August 18, 2016
Purchased
over 2 years ago
Woodworking Experience:
Advanced
