$99.00 Each
In stock
A simple, affordable jig that makes tight-fitting box joints.

Leigh B975 Box Joint and Beehive Jig

Item #
62946
Rating:
82% of 100

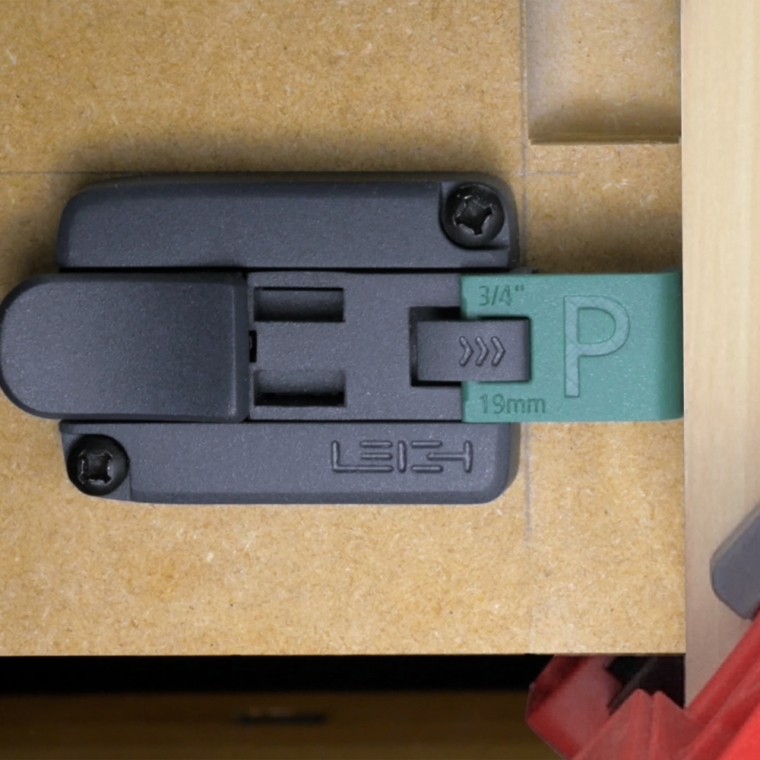

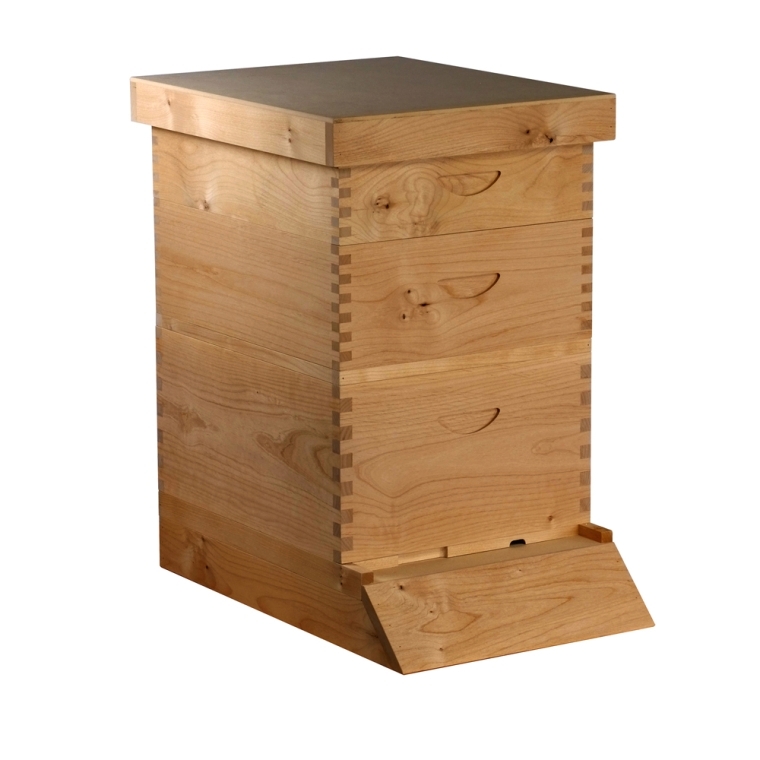

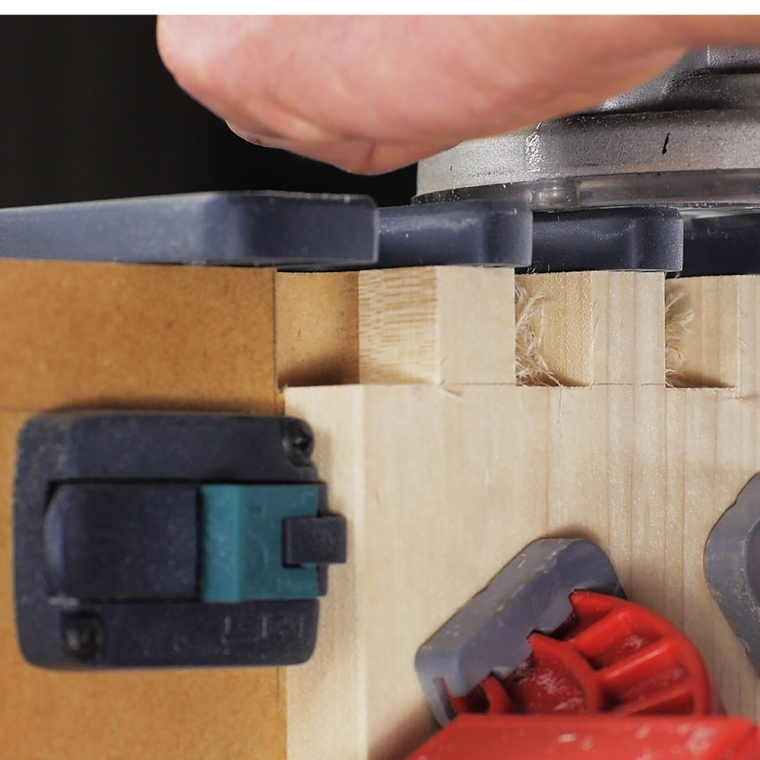

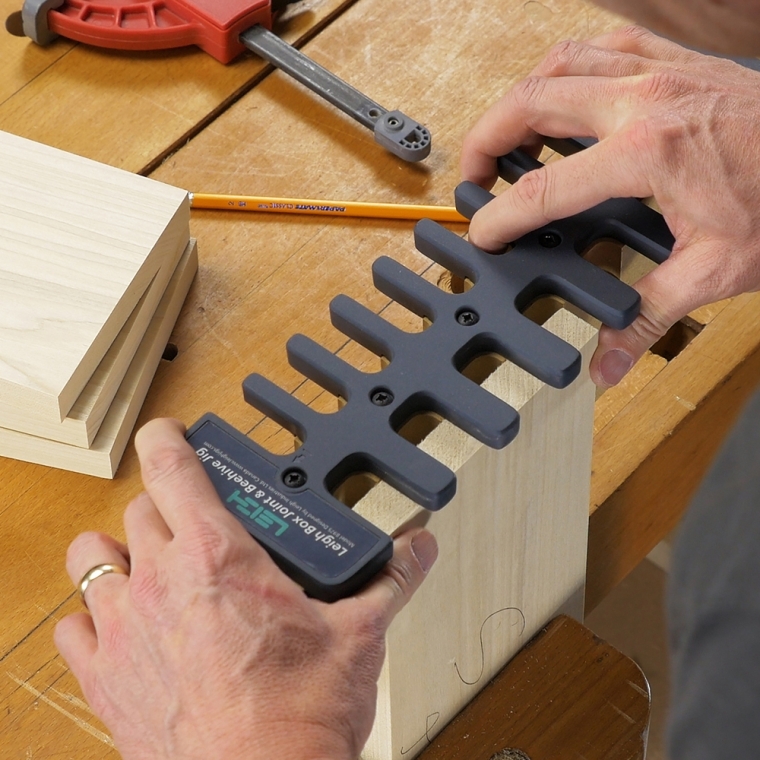

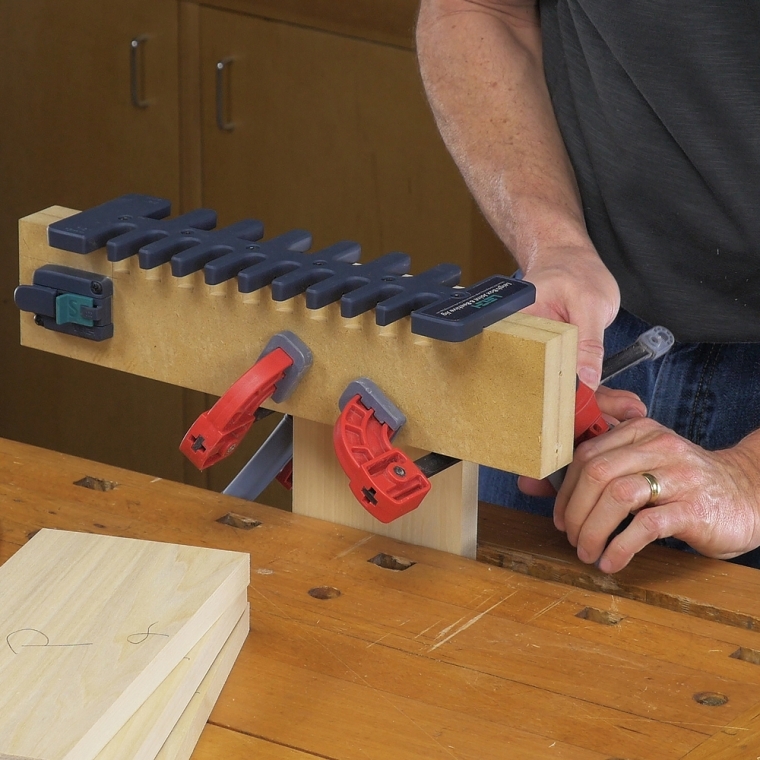

This simple, affordable jig makes light work of 1/2'' and 3/4'' box joints—ideal for making anything from boxes and drawers to beehive ''supers.'' Leigh's elliptical e10 bushing lets you adjust the fit by as little as 0.001'' for tight joints that slide together with a whisper. The flip stops provide the correct offset for the pins and sockets—just flip the stop open to go from routing sockets to routing pins. The comb template is attached to a shop-made beam, which can be made out of 2 pieces of 3/4'' MDF glued together, or a length of 2x4 jointed square.


Features:

  • Make fast, accurate 1/2'' and 3/4'' finger joints on boards from 1-7/16'' to 17-13/16'' wide

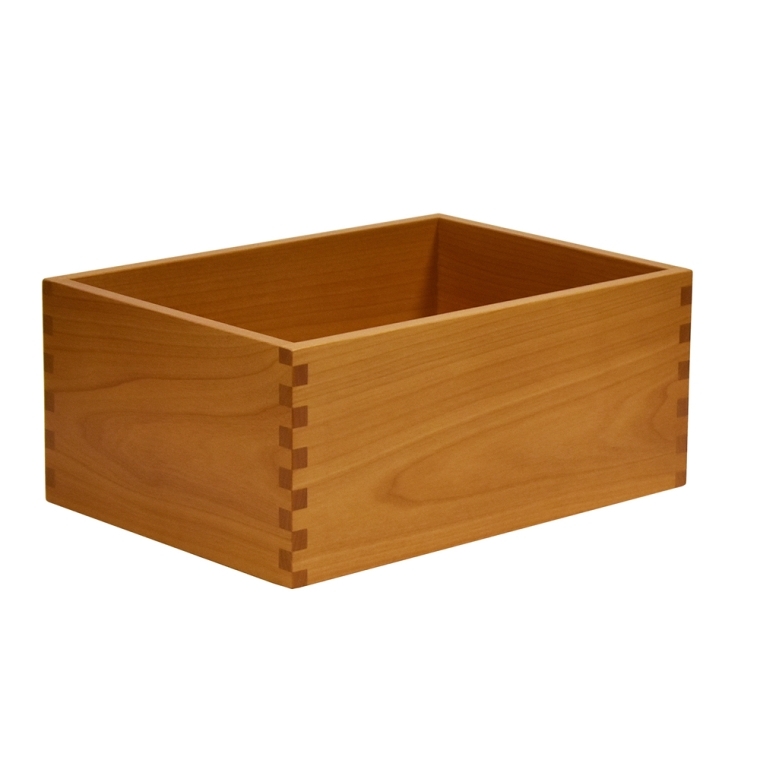

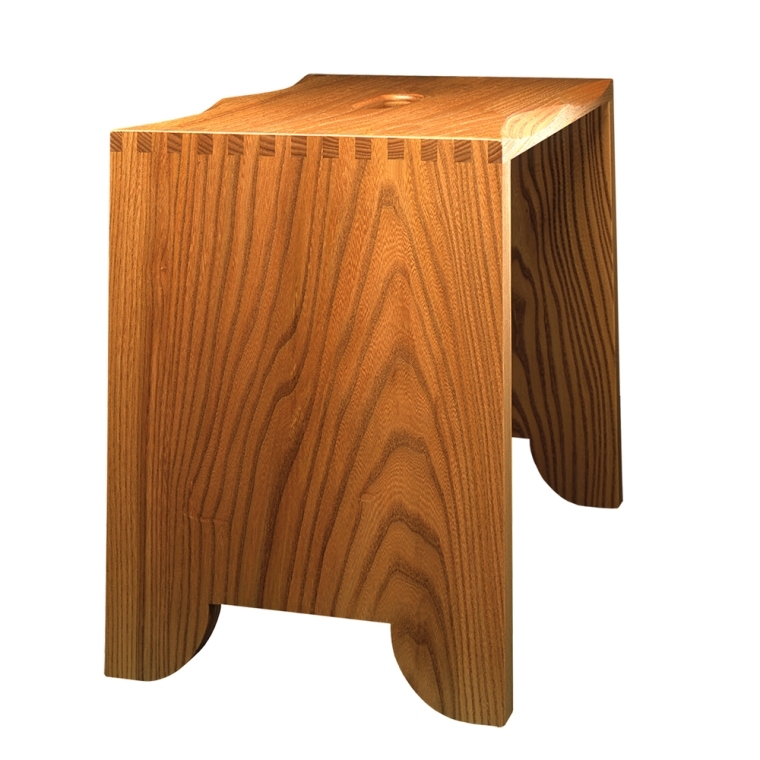

  • Useful for anything from boxes and drawers to casework for small furniture pieces
  • May be used with handheld or table-mounted routers (table-mounting requires an insert that accepts a standard 1-3/8'' guide bushing)
  • Elliptical e10 guide bushing lets you adjust the fit by as little as 0.001''
  • Includes glass-reinforced nylon template, e10 guide bushing, stops, 1/2'' straight bit, cams (not pictured) for routing wider boards, manual, and instructional DVD
(1) Glass-reinforced nylon template
(1) e10 elliptical guide bushing
(1) Pin wrench for e10 adjustment
(1) 1/2'' straight router bit 160
(1) 3/4'' Adjustable side stop
(1) 1/2'' Adjustable side stop
(1) 3/4'' Step-over cam (for routing wide boards)
(1) 1/2'' Step-over cam (for routing wide boards)
(10) 1'' Phillips head screws for mounting
(1) User guide
(1) Instructional video
More Information
Manufacturer Part Number B975
Weight 1.8000
Tech Spec
  • Maximum Stock Thickness: 13/16''
  • Stock Width Range: 1-7/16'' to 17-13/16'' wide (in bench mode)
4.1 / 5.0
8 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
4
3
0
0
1
I like it very much
Made 6 honey supers using default setting. No adjustment needed. Be careful not to bump the stop. I like it better than the shop made table saw jigs I've been using. Going to make some draws next.
Sensitive to rough handling. But I like it better than the shop made table saw jigs I've been using.
Sensitive to rough handling. But I like it better than the shop made table saw jigs I've been using.
August 23, 2019
Purchased
1 month ago
Woodworking Experience:
Intermediate
Box Joints
Bought this to try out box joints. I have been cutting dovetails on a couple of jigs (Rockler, Leigh and Porter Cable) and thought that it was time for something different. It took a half hour to get it set up per the instructions and less than 15 minutes to get it adjusted and cut the box joints for the first drawer. This jig is simple to use, easy to adjust and very accurate. Highly recommended.
July 28, 2019
Purchased
7 months ago
Woodworking Experience:
Intermediate
wonderful product
I am a DIYer & self teaching wood worker. This is great for all skill levels. The included video and instruction guide will be a great help to anyone.
February 17, 2019
Purchased
7 months ago
Woodworking Experience:
Beginner
Jig is fine....User needs brakes...
Item arrived as described, unfortunately I did not do enough homework on my project....not Jigs fault at all.

Building toys chest for my grandsons [4] and wanted to do box joints on all corners...36" front and back 24" on the sides.
Jig is made for 17" of sockets and pins. And my new router table has a 1/4" collet and under powered for the task...Jig looks great just not for this project.

Amateur / newbie mistake....live and learn.
December 19, 2018
Purchased
9 months ago
Woodworking Experience:
Beginner
I like the way your work piece turns out once you get it figured out but I don't care for how you have to fasten your work piece it's a little awkward to try to do with one person you almost need to I have figured out an easier way of doing it but I think it could be simplified but overall I do like the outcome of the jig on your work piece
July 3, 2019
Purchased
3 months ago
Woodworking Experience:
Advanced
B975
makes a very precise joint, although a little slow when you have a lot of drawers to make.
May 21, 2019
Purchased
4 months ago
Woodworking Experience:
Advanced
B975 Box Joint Jig
Easy to set up. Good easy to follow instructions.
February 25, 2019
Purchased
7 months ago
Would have been great, except for one thing.
The inside diameter of the collar was warped a little. First use on the pin the bit caught the collar and the collar shattered and gouged into the plastic jig. The two other pins looked good though.
User submitted image
Added Jun 29, 2019
June 29, 2019
Purchased
4 months ago
Woodworking Experience:
Intermediate
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 1 question Browse 1 question and 2 answers
Why did you choose this?
Rockler Store
Review and ease of use
ed on Jun 26, 2019
Used one before and was very happy with it
Mark M on Jun 20, 2019
Review and ease of use
ed on Jun 26, 2019
Have other Leigh products. Good quality company.
Richard H on Jun 24, 2019
Used one before and was very happy with it
Mark M on Jun 20, 2019
it looks simple and quick to use
jim b on Apr 30, 2019
My son requested this for hie birthday
Deborah S on Apr 5, 2019
Easy
David G on Mar 31, 2019
I have other Leigh jigs and trust their products. I wanted a jig dedicated to box joints and this system offered the quality of Leigh at a great price.
Gary C on Feb 15, 2019
Seen this jig used on video want to try it.
Lowell M on Feb 4, 2019
quality , what is included in the price ; I want to improve my skills ; I think I can get a lot of use out of this.
Warren on Jan 26, 2019
My husband asked for it for Christmas!
Ann P on Dec 18, 2018
It was on my husband’s Christmas gift list.
Gail M on Dec 13, 2018
Husband's wish list
Monica S on Dec 13, 2018
Would like to experiment with finger joints, this seems entry level enough.
KPA on Nov 27, 2018
Reviewed in Popular Woodworking
Louis C on Oct 29, 2018
saw a review on its use
Daniel R on Oct 26, 2018
Have other Leigh products. Good quality company.
Richard H on Jun 24, 2019
it looks simple and quick to use
jim b on Apr 30, 2019
What insert would I need for a Bosch router table?
Larry H on Jun 24, 2019
BEST ANSWER: The insert would have to accommodate the rub collar that comes with the jig That collar is the most important part of the whole setup. It has an index that you turn to increase or decrease the finger tightness.
The system works very well with the boards clamped in a vice and the jig clamped on the board.ter
