$29.99 Each
Oversold Until 06/17/2019
Auto-adjust clamping pressure makes securing your work as fast and easy as flipping a switch, regardless of the size of your workpiece! Fits all Rockler branded T-Tracks.
  • Buy 2 for $24.99 each and save 17%

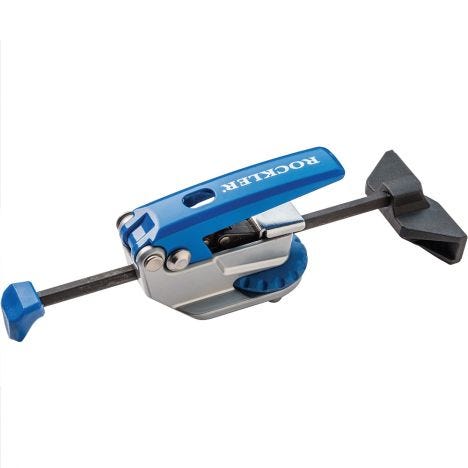

Rockler Auto-Lock T-Track Clamp

Item #
58616
Rating:
86% of 100
Rockler Auto-Lock T-Track Clamp Rockler Auto-Lock T-Track Clamp Rockler Auto-Lock T-Track Clamp Rockler Auto-Lock T-Track Clamp Rockler Auto-Lock T-Track Clamp Rockler Auto-Lock T-Track Clamp Rockler Auto-Lock T-Track Clamp Rockler Auto-Lock T-Track Clamp Rockler Auto-Lock T-Track Clamp T Track System Rockler Auto-Lock T-Track Clamp Review | NewWoodworker
Rockler Auto-Lock T-Track Clamp

Tightening Rockler's new Auto-Lock T-Track Clamp is literally an open-and-shut case—just slide the clamp face up to your work and close the lever! Once set, the clamping pressure is always the same regardless of workpiece size, and is adjusted only if needed with the set screw. Since the clamps apply pressure from the side, the top of your workpiece is unobstructed for easy machining and sanding. The bottom-mounted pins slide inside the miter track for stability, and can be shifted for 45° angle clamping—ideal for miters and irregularly shaped objects. When used with our T-Track Table, the clamp arm can be adjusted in and out a full 3-1/2'', allowing you to easily clamp items that lie in between the T-tracks.


Features:
  • Fast, repeatable action saves enormous amounts of time for repetitive clamping tasks
  • Clamps slide into any T-track that accepts 5/16'' T-bolts, including our T-Track Table (#46654, sold separately) and many of the CNC Shark tables
  • Knurled wheel secures the clamp to your T-track
  • Bottom-mounted alignment pins can be repositioned at 45° for angled clamping
  • Adjustment screw is easily accessible through a hole in the handle, and adjusts clamping pressure from 10 to 500 lbs
  • Non-slip pad on base of clamp prevents unwanted shifting
  • Clamp face also features a pad that prevents marring your workpiece
  • Angled notch in clamp face cradles outside corners and irregularly shaped objects
  • Rugged steel and aluminum construction
  • Nicely complements our T-Track Stops (e.g. 46010, sold separately)
  • Fits all Rockler branded T-Tracks
(1) Auto-Lock T-Track Clamp
More Information
Brand Rockler
Weight 1.1500
Tech Spec
  • Open dimensions: 2-3/4''W x 8-5/8''L x 5-3/8''H
  • Closed dimensions: 2-3/4''W x 8-5/8''L x 2-1/2''H
  • Clamp face dimensions: 2-3/4''W x 13/16''H
  • Cast aluminum body
  • Hardened steel push rod
  • Clamping pressure: 10-500 lbs
  • Clamping angle: 45° and 90° to miter track
  • Push rod adjustment range: 3-1/2''
  • Clamp throw when tightened: 5/16''
Clamp Pressure 500 lbs
Prop 65 WarningWARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov

4.3 / 5.0
82 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
55
9
8
4
6
These clamps makes it easy to Change material when doing multiple pieces on my CNC router
May 16, 2019
Purchased
1 month ago
Lots of Clamping Power
These clamps are amazing! I have been a woodworker for 20+ years and I use these clamps daily on my CNC router. I have never had a piece move using these clamps. Some people left reviews saying these don't have any clamping power or won't stay clamped. Those people must not be aware that there is an adjustment screw to set the clamping power with. If you have it too lose they won't have any clamping power. Read the instruction and use them properly and these clamps are amazing
April 22, 2019
Woodworking Experience:
Advanced
Rockler Auto-Lock T-Track Clamp for locally procured slat board
Works perfectly!
Use on skat board I procured locally for $78
April 8, 2019
Purchased
2 months ago
Woodworking Experience:
Intermediate
perfect
very quick set up with tremendous holding power.
February 25, 2019
Purchased
3 months ago
Woodworking Experience:
Advanced
Solid clamping. Nice to be able to sandwich clamp a piece while you sand.
January 6, 2019
Purchased
5 months ago
Woodworking Experience:
Intermediate
T track clamp
I used this with the T track bracket on my Kreg jig and it works great. No more adjusting he clamp pressure since adding this clamp.
December 17, 2018
Purchased
5 months ago
Woodworking Experience:
Intermediate
Excellent clamo
I bought two of these and T-Track stops to stabilize the work pieces on the CNC machine bed. they work great.
December 14, 2018
Purchased
5 months ago
Woodworking Experience:
Intermediate
Auto-Lock Clamp
These are great! I like how easy it is to adjust them.
July 8, 2018
Purchased
over 2 years ago
Woodworking Experience:
Intermediate
Perfect for quick clamp on my xcarve
I use these for a quick clamp on my cnc. They are quick and the adjustable pressure knob is awesome because not everything needs tons of clamping pressure. The 45deg option is nice but doesn't always work for my setup. I plan to make a block for the jaw portion that adds an undercut to give some downward pressure instead of just side pressure but this is outside the scope of it's design slightly. Overall I am pleased with the purchase.
User submitted image
Added May 14, 2018
May 14, 2018
Woodworking Experience:
Intermediate
T track clamp - most useful
Used as a vertical clamp to hold work pieces tight to a table saw cross cut sled. Works great.
April 19, 2018
Purchased
1 year ago
Woodworking Experience:
Intermediate
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 20 questions Browse 20 questions and 86 answers
Why did you choose this?
Rockler Store
Starting T-Track collection
Darrell S on May 21, 2019
Hold project without obstructions for surfacing project
John S on Apr 29, 2019
Starting T-Track collection
Darrell S on May 21, 2019
Seems to be a perfect clamp for holding large items on my CNC table for surfacing.
Kelly S on May 10, 2019
Hold project without obstructions for surfacing project
John S on Apr 29, 2019
clamp phones and pinecones
Zachary D on Apr 27, 2019
They seem to have good reviews and I hope they work well in my assembly/outfeed table.
Scott N on Apr 25, 2019
CNC fixture
Brandon G on Apr 16, 2019
For use on my T-Track table set-up
George on Apr 14, 2019
Adding t-track to my workbench, and I think these will be very nice for hold downs.
Kelly R on Apr 13, 2019
same as before
Francis B on Apr 12, 2019
gift
Judy F on Apr 12, 2019
Building gluing jig
Neal J on Apr 10, 2019
CNC table
Michael J on Apr 9, 2019
I'm using this for the newly built track table for some power carving
Dan Z on Apr 9, 2019
I needed some for my t-track table.
Oscar A on Apr 8, 2019
It will work perfectly with the Rockler t-track I installed in my homemade drill press table.
Jonathan R on Apr 7, 2019
adjustable end stop for T-track
William L on Apr 7, 2019
Nice to have for a t track table system.
Jack on Apr 2, 2019
I bought one at your store in Atlanta and I like it..
Leonard L on Mar 31, 2019
Adjustable torque setting.
KELLY V on Mar 30, 2019
Will try on my T-Track system.
George on Mar 27, 2019
To inlay t track into my CNC waste board for easy jig use.
David H on Mar 13, 2019
Drill Press Table clamping strategy for wife's project.
James C on Mar 9, 2019
Really tired of dealing with butterfly nuts. Takes too long and tiresome.
Clint C on Mar 6, 2019
Fits t-track on my new assembly table
Jay M on Feb 25, 2019
This should be a great way to hold my sanding projects in place!
Michael d on Feb 15, 2019
To use for my new Shapeoko CNC machine
James G on Jan 18, 2019
I purchased a t-track board and need more accessories to make it useful. Plus I need a clamp and I thought I would try one and see if it meets my needs.
Mike A on Jan 8, 2019
Saw them used on an X-Carve bed in an EvanAndKatelyn video, looked like a useful addition for my CNC and drill press tables.
Richard A. S on Jan 4, 2019
To use with my X-carve and t-tracks.
Derrick J on Jan 4, 2019
New assembly table
Paul K on Dec 29, 2018
My husband wanted accessories for his new t track assembly table.
Andrea C on Dec 17, 2018
My son asked for this for Christmas
Sandy Barringer R on Dec 17, 2018
Christmas gift
Becky H on Dec 9, 2018
Requested item
Lisa M on Dec 9, 2018
It was circled in a magazine as a possible gift for my carpenter father-in-law.
Jillian S on Dec 7, 2018
great addition to my reg work bench
Debra B on Dec 5, 2018
I built my own workbench and used your t-tracks. I need to continue to purchase the various clamps to make the best use of my table.
Linda K on Nov 30, 2018
Potential versatility!
Moreland S on Nov 28, 2018
Excellent clamp on the T Track Table Top
Byron V on Nov 27, 2018
I need it to use on a T track table I have built.
Howard S on Nov 26, 2018
Good for work
Pongthai S on Nov 25, 2018
For CNC machine
Randall N on Nov 11, 2018
For cnc machine
John L M on Nov 10, 2018
A great clamp for small items.
Kenneth E on Oct 22, 2018
complete my assembly table clamping system
Robert W on Oct 7, 2018
Using these on my X Carve
TOM P on Aug 30, 2018
These are needed for my T-Track table top
Steve M on Aug 15, 2018
As an add on for the t-track system
William K on Aug 9, 2018
To find out which ones work the best for my builds
michael l on Aug 4, 2018
I need all of the items to go along with your T-Track system which I will set up on the side table I am building for my radial arm saw. This table will serve as a multi-purpose table.
Gary S on Jul 14, 2018
Seems to be a perfect clamp for holding large items on my CNC table for surfacing.
Kelly S on May 10, 2019
clamp phones and pinecones
Zachary D on Apr 27, 2019
Can you extend the t-bolt that slide in the track that is used with a longer one?... as some have asked since my t-track is 3/4" below my waste board on cnc table.
skcnc on Nov 16, 2016
BEST ANSWER: Yes, I have done this on my CNC able, as my spoil-board is above the 'T' track. There are replacement bolts available on Rockler.
Are there instructions for these clamps. I am not sure that I am using them correctly. Example: do you take the screws out or leave them in? I need pictures!! Also, anybody have trouble with the rubber pads on the bottom coming off?
Barry R on Jan 8, 2016
BEST ANSWER: I Haven't really used mine yet so I can't really address the rubber pads issue but the screws can be moved to allow 90 or 45 degree settings or they can be removed to allow any other angle. When the screws are used they set in the T-Track and lock the angle. I hope this helps.
Can it be modified to clamp higher up (e.g., a workpiece sitting on a spoilboard)?
Oertl on Oct 17, 2016
BEST ANSWER: If the mounting brackets were still available yes but as they are you'd have to fashion your own brackets and mount them to a board at the height you need. You could get a length of the t track and make brackets using it. It's really crazy they no longer offer the brackets!
can these clamps be used with another method than t track ?
Darren P on Oct 13, 2015
BEST ANSWER: Not easily. The design allows the bottom of the clamp to be held in place on a table by locking into a T-track in the table. It's design would make it extremely difficult for it to lock in place in anything that does not function as a T-track.. The clamp must be held firmly in place on a table for it to function properly. Obviously, there would need to also be a similar clamp or solid support on the other side of the work piece.
The t-track clamp has guide screws for inserting it at 90 and 45 deg angle to the t-track. Will it work to remove the screws and use it parallell to the track? I'm concerned that the clamping force will make it slide along the track if used this way.
Kjell H on Sep 1, 2015
BEST ANSWER: I have had it slide a bit. Best if they are used at right angles to the track. I have removed the guide screws from my clamps. I do use them in line, but really tighten them down.
Is the clamp face removable? I was wondering if I could replace it with custom 3D-printed versions for odd situations.
Paul R. B on Mar 31, 2018
The T-Track clamp looks good. Does it fit in the Kreg router table T-track? I notice you also sell some Kreg products.
Thomas on Apr 8, 2015
BEST ANSWER: No problem.It fits in the most t track systems.Its realy good to work with this clamp.Sorry but my english isnt really good.You also can use it with incra systems.Regards
Will they fit in an incra T track?
Edward R on Sep 11, 2015
BEST ANSWER: I have replaced the blue dial knob with a 3D printed knob that accepts a 1/4" hex bolt. With that modification it fits an Incra, Kreg and a few other non-branded tracks perfectly. I'm surprised Rockler haven't released a 1/4" knob as an accessory. Alternatively use an appropriate sized circle cutter and recess a 1/4" hex nut in it (which is what I did before purchasing a 3D printer).
Does the Rockler Auto-Lock T-Track Clamp fit on a Kreg T-Track? I am mainly interested in using it on my Kreg Router Table. This clamp looks to be very good and would solve many clamping and work-holding challenges I frequently encounter.
Thomas on Apr 8, 2015
BEST ANSWER: I bought these for use on my Shark CNC, but I also have the Kreg Router Table. The Kreg T-Track is designed for 1/4" T-Bolt and these clamps have a 5/16" T-Bolt. As they come, they do not work... but Rockler may have an alternate 1/4" T-Bolt you could interchange it with
Will this clamp work in a Kreg Klamp Trak?
builtbybuck on Mar 29, 2017
BEST ANSWER: It won't work as shipped but if you replace the t-bolt with a slightly longer one and removed the screws on the bottom I believe it will work for you.
I clamp a lot of things sideways on my traditional workbench. Can anybody see a convenient way to adapt these clamps for use in bench dog holes?
Dickdickson on Jul 8, 2015
BEST ANSWER: These same clamps are also available in a version that works in bench dog holes. They're available from Rockler, but sold under the Armor Tool brand (and are red instead of blue). In fact, these t-track clamps are actually Amror Tool clamps re-branded for Rockler. Not sure why the bench dog hole versions didn't get the same treatment.
Could I add this item to my pocket hole jig for faster set up?
BR549 on Sep 19, 2018
BEST ANSWER: Yes you can. I used a Three-quarter inch plywood board mounted my left over piece of T-track into it. I cut a dado into the plywood to mount the track. Then I use my quick release clamp for pocket hole jig.
Some of the pictures in the Rockler Auto-Lock T-Track Clamp ad show a very narrow, triangular, Rockler blue, button type head (on the end of the clamping rod) and others show a black (approx. 2" wide) bar on the end of the clamping rod. Which style comes with the clamp and do I have to purchase the other separately or are both included?
Frank T on Aug 14, 2017
BEST ANSWER: The way the clamp works is that you slide the clamp along the t-track to position it within the working range (about 3 3/4") of the clamping rod from the work piece with the black end facing the work piece to apply the pressure. The small blue end is designed so you can hook your finger in it to push or pull the rod forward or back so that the black pressure pad is against your work piece. You then push down on the top lever to tighten the unit against the work piece.
When the bumper wears out, is there a replacement?
tim S on Feb 3, 2018
BEST ANSWER: I have had mine for years the pads are made of a hard plastic I use them all the time and they show no signs of wear if used properly I don't see how they could wear out
What is the distance of the jaw from the center of the t track? Put another way, if I am planning a jig to clamp 20" panel and a 23" panel, how far does the t track need to be away from the edge of the 23" panel to allow for the boards to fit between the stop and the open clamp?
Dan K on Nov 9, 2017
BEST ANSWER: The clamp has a 3 1/4" movement range. From the center line of the T Track the clamp is 2" (narrowest point) and 5 1/4" (widest point)
Will the Auto-Lock T-Track Clamp work with a Laguna Swift router table? The T-track does accept a 5/16-18 t-bolt but sits about 7/16 below the table top.
Harold G on Jul 6, 2016
BEST ANSWER: I have an older Laguna Swift CNC. I made a spoilboard and cut slots and T-Track to accommodate these clamps. I absolutely love them. I believe if you mounted on the supplied T-slots on your table you would have too much play. Also, you would need to get longer T-slot bolts to grab underside of T-slot.Doable but I think a spoilboard is a better option because you make slots in the X direction. Hope this helps.
The bracket has four holes in it. What is the spacing of those holes? I would like to use this and the Rockler Auto-Lock T-Track Clamp in a peg board material hold down solution.
Will the Rockler Auto-Lock T-Track Clamp push the material up off the bed when used with the Mounting Bracket for Auto-Lock T-Track Clamp and a peg board system?
jb c on Nov 8, 2015
Rockler Auto-Lock T-Track Clamp
Rockler Auto-Lock T-Track Clamp
Mounting Bracket for Auto-Lock T-Track Clamp
Mounting Bracket for Auto-Lock T-Track Clamp
BEST ANSWER: Mounting hole pattern: going direction of t-track 1-5/8" center to center. Accross 1-3/8" center to center. Holes are 3/16" dia. Rene'
What is the part number the bracket to attach clamp to table top without t track?
Frank on Jan 1, 2018
Does this clamp fit on/mount on the axiom auto pro 6?
doug h on Sep 7, 2017
