$79.99 Each
In stock
A full-featured, fully adjustable fence for your drill press—includes instructions to build your own drill press table!

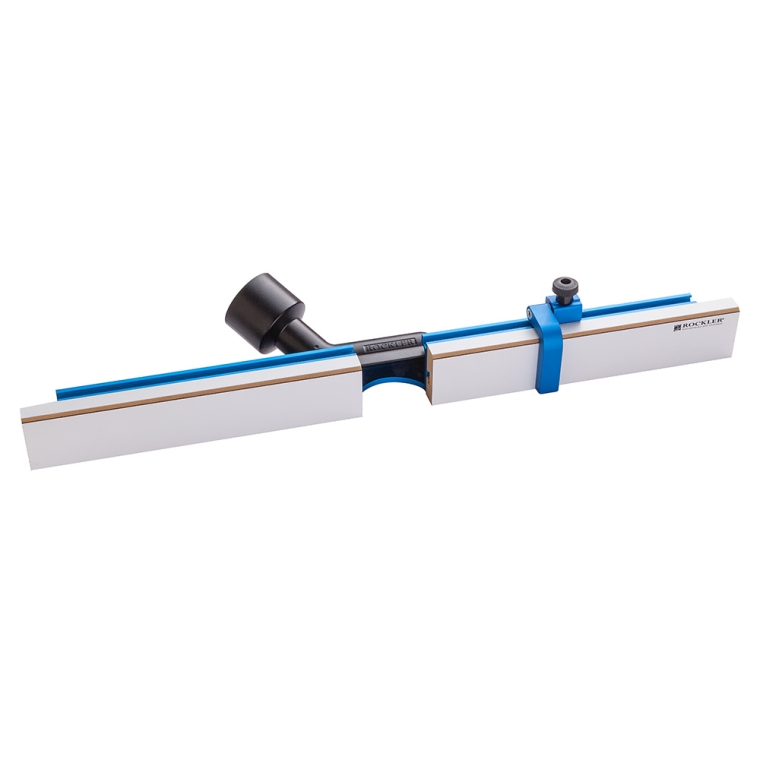

Rockler Drill Press Fence

Item #
53648
Rating:
88% of 100

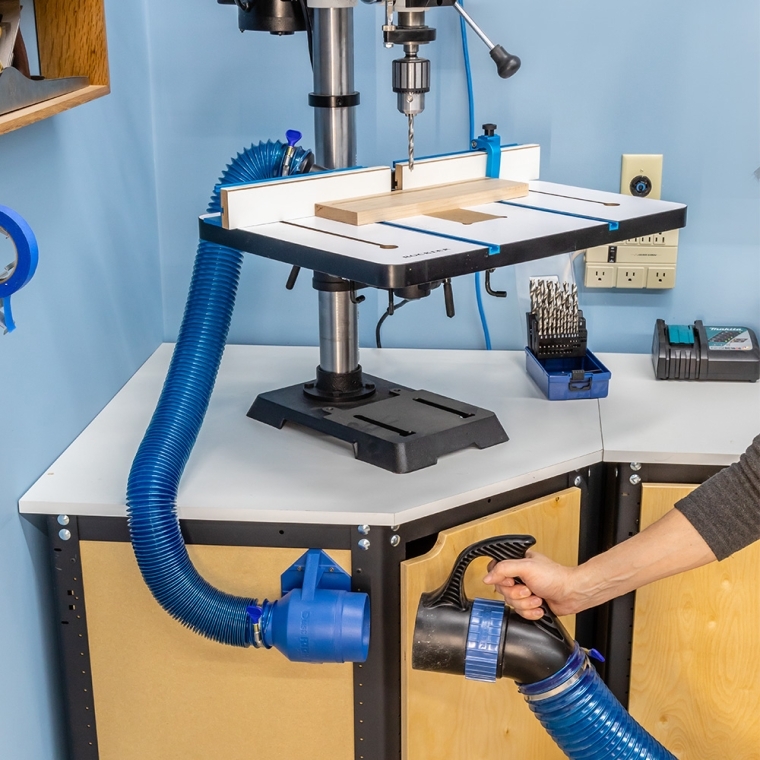

Get easy adjustability and precise repeatability on your drill press with the Rockler Drill Press Fence. The fence features adjustable MDF faces that let you straddle large forstner bits and sanding spindles, plus a flip-down stop for precise placement of a wide variety of holes. The included low-profile dust port fitting is specially designed for minimal obstruction with the drill press column, retaining up to 3'' more throat depth over typical dust ports. It also angles up and away to keep the hose from impeding movement of the fence on the table. You can design your own drill press table or build the table outlined in the instructions, a design that's easily customized to fit the needs of your drill press. Mounted via T-tracks or thru-slots, the fence is quickly positioned and secured with the included hardware.


Features:
  • Made of durable materials, including ABS dust port, extruded aluminum fence and MDF subfences
  • Fence comes fully assembled
  • MDF subfences adjust laterally without tools
  • Upward facing T-track allows addition of included flip stop and other optional accessories
  • Additional flip stops available (#31214, sold separately)

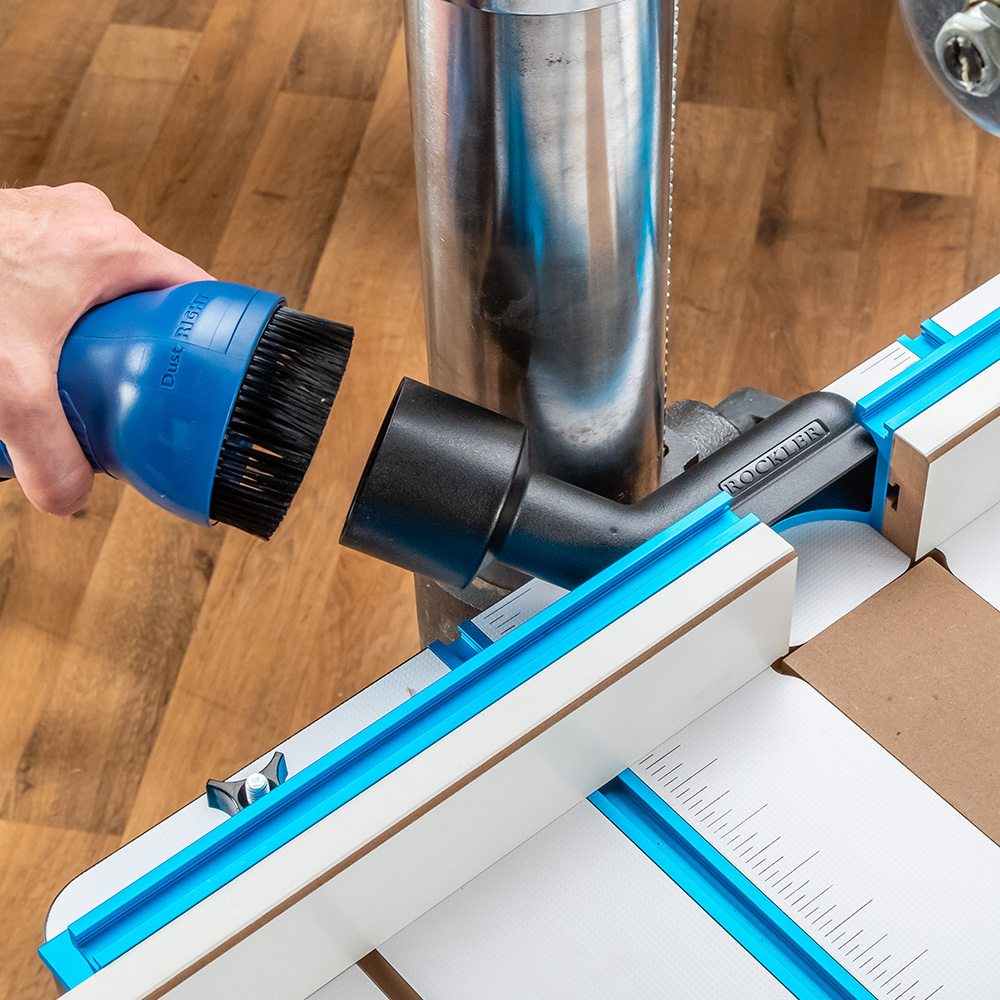

  • 2-1/2'' split in fence provides room for included dust port
  • Low profile dust port minimizes interference of fence with drill press column
(1) 24" ExtrudedAluminum Fence
(2) 12" MDF Subfences
(1) 2-1/4" Flip Stop
(1) Dust Port
(1) Pack of Mounting Hardware and Knobs
More Information
Brand Rockler
Manufacturer Part Number No
Weight 4.8500
Tech Spec
  • Fence Length: 24"
  • Fence Height: 2-1/4"
  • Fence Depth (with MDF Face): 2-3/4"
  • Fence Material: Aluminum Extrusion with MDF Faces
  • Dust Port I.D.: 2-1/4"
  • Dust Port O.D.: 2-1/2"
  • Fits Tables with Track Spacings of: 16-1/4" to 19-3/4" apart
Tech Docs
Prop 65 WarningWARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov

4.4 / 5.0
25 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
13
10
2
0
0
Nice Product
I previously purchased just the vac port and then saw this on sale. I love the aluminum behind the MDF which gives this a boost over the custom piece that I previously made.
August 8, 2018
Purchased
5 months ago
Woodworking Experience:
Intermediate
Great fence.
Looks great! Quality built.
August 3, 2018
Purchased
2 months ago
Woodworking Experience:
Intermediate
Dust collection works great!
Received by request as a gift from my wife. I had wanted to build a drill press table for years and finally decided to do it. I first used the fence before making a the table while building my tablesaw crosscut sled. I clamped it to the drill press' metal table on top of a piece of plywood to drill some holes all at the same distance from the edge. I was amazed by how well the dust collection worked. I then built my drill press table from scratch, photo included with this review.
Rockler fence with my home-built drill press table.
Rockler fence with my home-built drill press table.
June 16, 2018
Purchased
4 months ago
Woodworking Experience:
Intermediate
Drill Press Fence
This is a great addition to my new (shop built) drill press table. It's of high quality and a value for the money. The built in dust collection port is also a real plus.
May 14, 2018
Purchased
4 months ago
Woodworking Experience:
Advanced
Drill Press Fence
Works great
April 17, 2018
Purchased
5 months ago
Woodworking Experience:
Advanced
Drill press fence
Have’t used it yet. Can see it will be handy.
December 15, 2017
Purchased
9 months ago
Woodworking Experience:
Advanced
Go out and buy one already
The dust collector is great!
February 12, 2017
Purchased
1 year ago
Woodworking Experience:
Advanced
great fence
nicely make and sturdy. great buy
December 19, 2016
Purchased
1 year ago
Woodworking Experience:
Advanced
Simple, elegant solution
Used this with a table I made - very solid, simple and reliable. Very happy!
December 6, 2016
Purchased
1 year ago
Woodworking Experience:
Intermediate
dust collection
i plan on purchasing this item
just for the benefit of dust collection
my drill press floor gets very dirty
i could buy a dust collection accessory but
the one i saw was all plastic and
comparably pricey
September 19, 2016
Woodworking Experience:
Advanced
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 11 questions Browse 11 questions and 78 answers
Why did you choose this?
Rockler Store
Needed fence for Jet drill Press.
Miles N on Jul 7, 2018
I cannot build a drill press fence this nice for this price.
Rodney C on Apr 26, 2018
Needed fence for Jet drill Press.
Miles N on Jul 7, 2018
Adjustable means of drilling holes for Blum concealed hinges on drill press.
Michael S on Jul 5, 2018
I cannot build a drill press fence this nice for this price.
Rodney C on Apr 26, 2018
Too lazy to make my own
JOHN K on Apr 26, 2018
cool production tool
Terry T on Apr 26, 2018
I need a fence for my drill press and this one has a nice vacuum connection.
Rick L on Apr 23, 2018
I can't make one as nice for the price. Please consider a 32" version for larger tables.
Chris M on Apr 23, 2018
why not
thomas c on Apr 18, 2018
I got a new drill press. Need this fence.
Bob R on Apr 14, 2018
needed one
Charles T on Apr 14, 2018
I have the original Craftsman cast iron table on my drill press and while it will probably outlast me, this fence and the table I'll build from the instructions will work much better for precision work.
Janice R on Apr 14, 2018
Good price and instructions for building table
Norman M on Apr 13, 2018
I've been wanting a good drill press fence with adjustable stop at a affordable price.
Steve W on Mar 10, 2018
I am building a drill press table.
Greg D on Feb 22, 2018
I am purchasing a new drill press and need a fence for repeating drill holes.
KEITH M on Feb 5, 2018
Bought to build table for drill press.
Chad F on Feb 4, 2018
I picked this because I'm just starting to build my shop and lack experience in crafting and building my on, and reliance on the guarantees of this company.
Lyonel W on Jan 2, 2018
just bought a new drill press
Ralph M on Dec 30, 2017
I needed a good Drill Press Fence and I knew this product would work perfect. Good price also
Rosemary on Jul 25, 2017
I do not know How I got along without this fence
Kenneth P on Mar 13, 2017
For a DIY drill press table.
Hamid A on Feb 27, 2017
Setting up a drill press and other reviews seemed to give positive feedback.
Ben M on Feb 25, 2017
Don't have one
tom t on Feb 5, 2017
works great. 5 stars
Daniel B on Jan 15, 2017
THIS FENCE WILL WORK WELL WITH MY DRILL PRESS TABLE
THOMAS H on Dec 27, 2016
My old Delta table drill press had the iron table and I was always fussing and re-measuring to make sure the hole was in the right place. Now I make one set-up with the fence and can drill away to my hearts content.
STEVE L on Dec 17, 2016
Included plans for table
Luanne F on Dec 15, 2016
A fence is a backbone of a drill press table. The large central work area , dust control, and flip stop allow efficient work at the drill press.
Mark K on Dec 7, 2016
Tried it and it doesn't seem to work that well.
Charles S on Dec 5, 2016
Needed a setup like this
dan r on Dec 4, 2016
Safety and accuracy on the drill press.
Rick W on Dec 4, 2016
I've been looking for sometime and could not beat the price (on sale) for the components to build my own.
John O on Dec 4, 2016
Need to add an expanded table to my drill press and I don't think I could build a fence with these features as inexpensively as the sale price for this unit.
Terry C on Nov 26, 2016
To upgrade my current system.
Jack C on Sep 21, 2016
for a gift to son
datherine r on Sep 18, 2016
This replaced the fence that came with the drill press table. Like the fact of having the vacuum port as well as the built in stop block attachment.
Paul K on Sep 1, 2016
Dust removal capabilities
DOUG A on Jul 29, 2016
Wanting to build drill press table.
Larry F on Jul 26, 2016
The only fence that has an integral dust port.
Robert M on May 17, 2016
Setting up drill press to do a better job and be more consistent with quality of work.
Stanley F on May 10, 2016
to make my drill press more functional
Randy F on Mar 31, 2016
To add to a second drill press
N X on Feb 6, 2016
My dad requested it as a birthday gift.
Ursula D on Feb 3, 2016
Looked good, and I wanted a good fence that adjusted,and also with a dust port.
Thomas E on Jan 19, 2016
Needed a fence to use on drill press table
Jon W on Jan 16, 2016
Add on for my Drill press
Luis T on Jan 7, 2016
Got this for drill press instead of the jig-it to drill hinge cups
Barry R on Jan 4, 2016
Dust collection and nice fence
Barb on Dec 26, 2015
Making a drill press table
Dennis S on Dec 26, 2015
To make a woodworking drill-press table with an adjustable flip-down stop.
Hobart E on Dec 26, 2015
Adjustable means of drilling holes for Blum concealed hinges on drill press.
Michael S on Jul 5, 2018
Too lazy to make my own
JOHN K on Apr 26, 2018
Does Rockler sell a table top that will match up with this item as opposed to having to build it myself? I know this sounds lazy but I feel like a professionally made one will have tighter specifications than anything I could do and would give me more consistency in my finished products.
Jeff H on Jan 2, 2017
BEST ANSWER: I have done an extensive search and it appears they do not. But, it does say in the description that the fence includes plans to build your own table.
Are additional flip stops available?
charlie a on Jun 20, 2016
BEST ANSWER: Buy a 2 1/4 stop. it is the same as what comes with the fence.
What is the difference between the this router table fence and the drill press fence? They appear to be the same design.
Marty on Aug 10, 2016
Rockler Drill Press Fence
Rockler Drill Press Fence
Rockler Router Table Fence
Rockler Router Table Fence
BEST ANSWER: The Router fence is taller(by about an inch?) and wider(32" vs 24"), also the center above the bit is connected compared to the drill press fence.
Does the drill press table plan included with the fence feature the rectangular table insert shown in the photos above, or does it feature the circular insert shown in the "see it in action" video (which requires a CNC machine I don't own)?
RJSpiotta on Feb 9, 2016
BEST ANSWER: The Table Plan that came with the fence, shows a 4" W by 5 1/2" front to back - Rectangle.
I made mine 4" Square, positioned so the drill point hits center left to right, but hits 1 1/4" from the top of the insert. This allows me to rotate it 4 times on each side before putting in a fresh one.
What size are the bolts for the t track?
Tom S on Jan 11, 2018
BEST ANSWER: The bolts that attached the fence to the drill press table are 5/16. The fence stop that rides in the track at the top is also 5/`16. The track the fence bols ride in and the track on the top top of the fence are the same: the standard Rockler track - 9/16 wide track that receives a 1/2 rounded rectangular head on each of the 5/16 bolts.
I have already made a drill press table with T tracks in it. How far apart are the slots for mounting the fence to the table?
Larry D on Nov 4, 2016
BEST ANSWER: I Used 3\4" wide t track .from center of each track its 19" apart. The fence bolts have room for adjustment .I made my drill press table withextensions on each end so when I have long lengths to drill I can support the piece and keep it flat against table. I got the plans from woodsmith magazine.I highly recommend this magazine. It has furniture plans (step by step directions) and very useful tips . it's $20\yr subscription and well worth it if you make furniture or projects for around house.I also made a rolling cabinet for my bench top drill press.12 drawers that have dividers that organize all my nails,screws,bolts&hardware.I included some pictures for you too. My chopsaw on wheels with adjustable legs and fold up too and a fence that has a stop so you can make exact lengths of wood for your projects.if you have other questions my email is mpieperjr@yahoo. Com and I'll answer any of your questions. I hope this answered your question
Would this be suitable for a 10" Ryobi drill press?
Jeffrey M on Apr 13, 2018
BEST ANSWER: I don't know, I drilled wo holes in it to fit my Jet drill press and it works great
Has anyone tried making a table and using this drill press fence on a table top drill press or is the factory drill table too small to support it satisfactorily?
Quiggley on Dec 4, 2016
BEST ANSWER: Yes you have to make a table for drill press. Go to Woodsmith and type in drill press table in search . I made the table w/. Adjustable extensions for long pieces that need to be drilled.
In the drill press table plans, how far back from the front edge is the crossrail?
davidbitton on Aug 20, 2018
BEST ANSWER: Hi David!
I didn't use the drill press plans. I made my own table.
You can make the table as you wish.
Can this fence be used on a 24 inch router table?
Steve on Jun 19, 2018
