Bench Dog 3-in-1 Shoulder Plane

Item #
52378
Install the long extension for a shoulder plane, the short extension for a bullnose plane, and no extension for a chisel plane. More details
$144.99
How do you want your item?
Delivery
Check In-Store Availability
As soon as today
As soon as today
Check availability in your nearest store

Expert Advice

Mastering woodwork: Expert insights revealed

Contact Us

Satisfaction Guarantee

Enhance your product’s protection and durability

Click Here

Family Run

Passion passed down through generations

Read More

Crafting with Wood: Turn Your Ideas into Reality

Create with wood! Our premium materials make your projects come to life...Read More

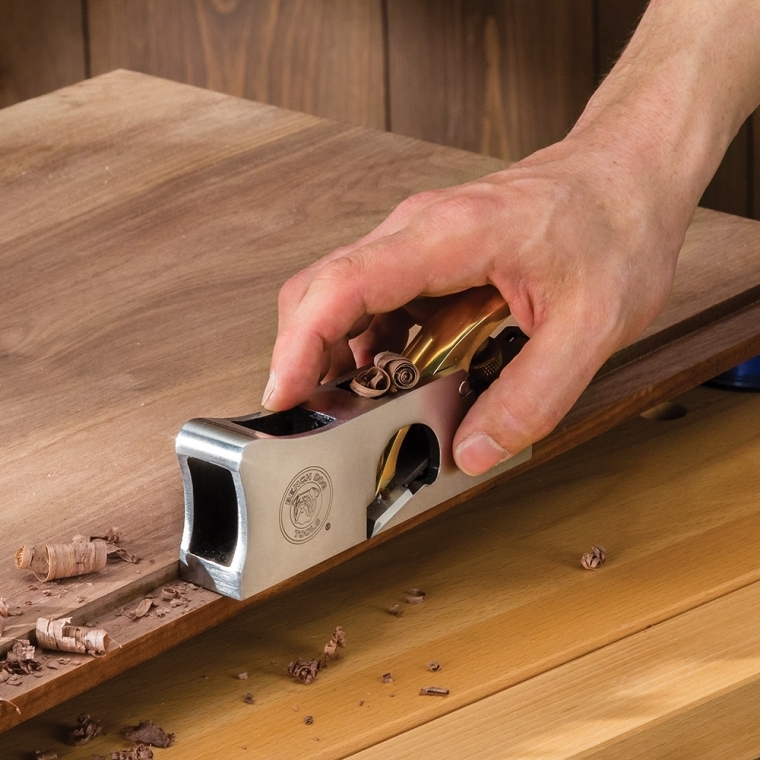

For fine-tuning tenons and cleaning up corners, rabbets and other joinery elements, reach for the Bench Dog 3-in-1 Shoulder Plane. The plane includes two nose pieces—one long, one short—both of which are removable for conversion to a chisel plane. The 1'' blade is a hair wider than the full width of the plane body, ensuring clean, sharp corners without leaving a ridge. Like our other Bench Dog planes, both the fine iron castings and the blade are precision ground flat. The sides are machined perfectly square with the sole. Each plane includes a storage case and Certificate of Inspection with measurements specific to your plane for sole flatness and blade hardness.

Features:

  • A shoulder plane, bullnose plane and chisel plane in one versatile tool

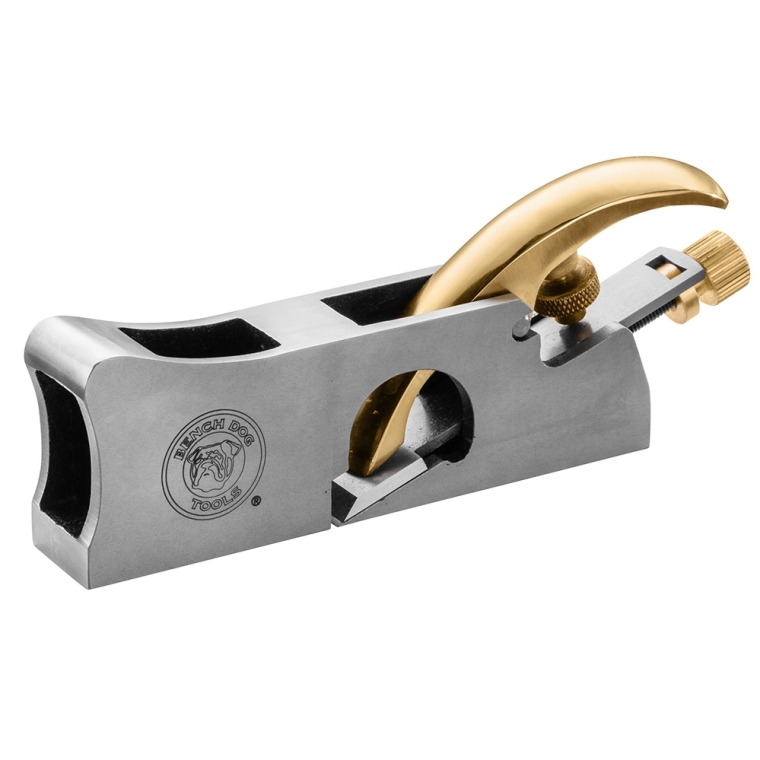

  • Install the long nose piece for a shoulder plane

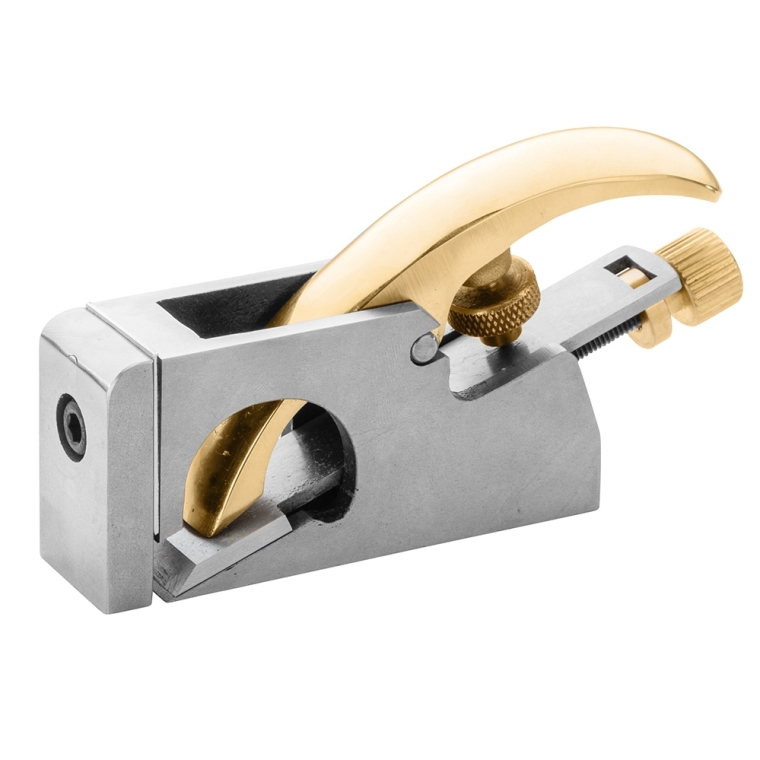

  • Install the short nose piece for a bullnose plane

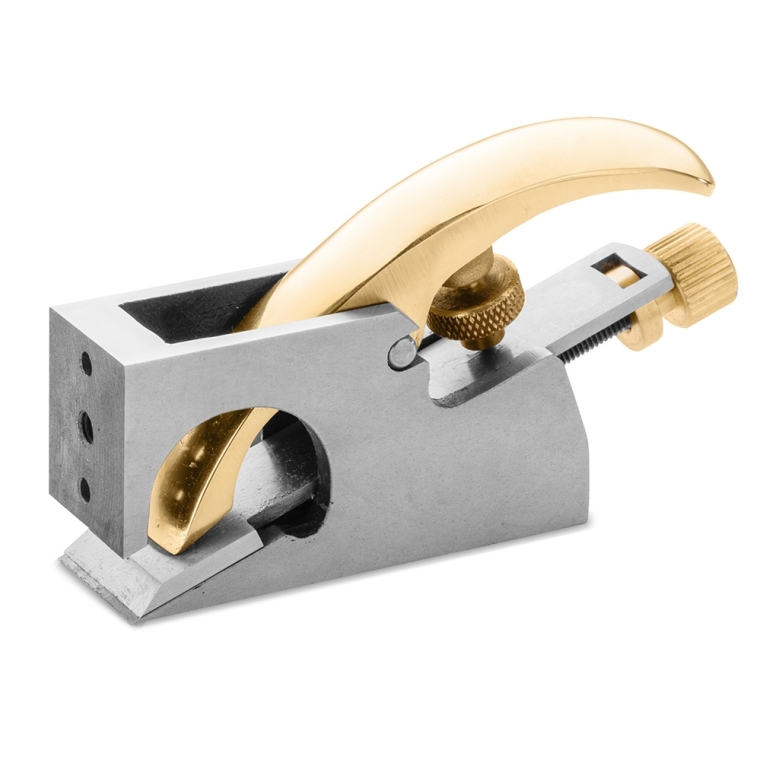

  • Remove the nose piece altogether for a chisel plane
  • Depth of cut is microadjustable with the precision brass knob
  • Polished lever cap is contoured to fit comfortably in the palm of your hand

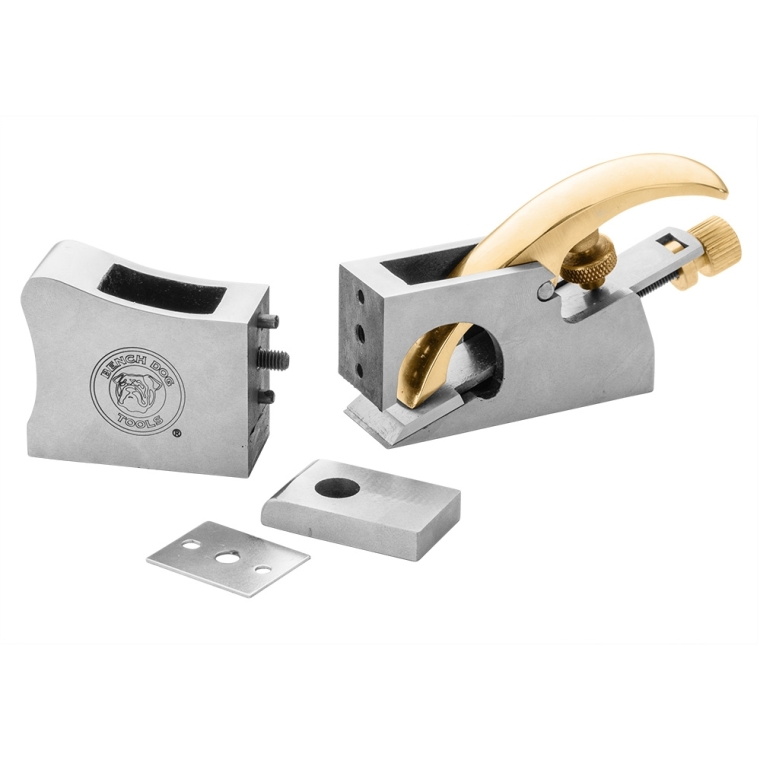

  • Includes shims that let you vary the size of the mouth opening

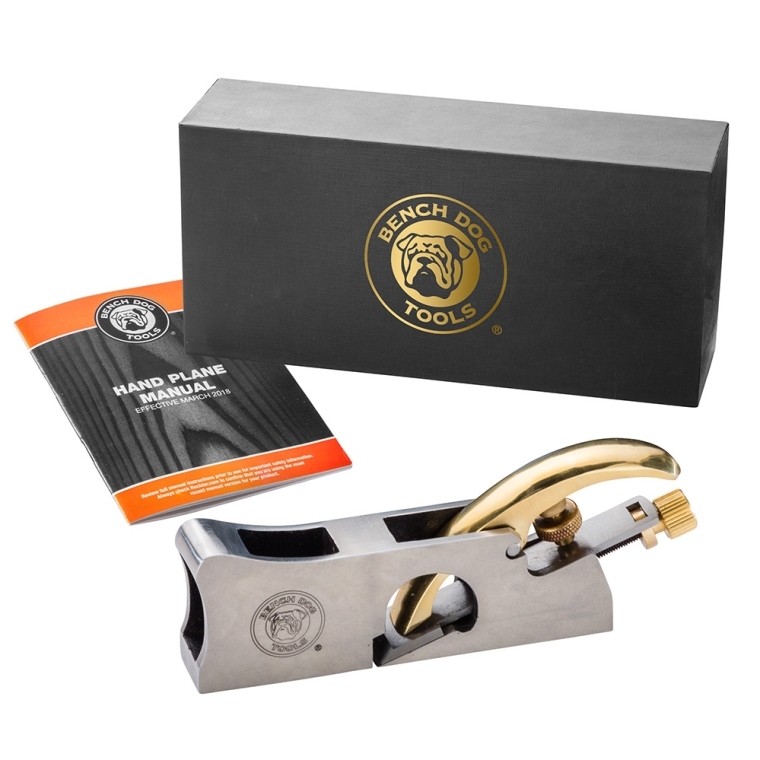

(1) Bench Dog® Tools 3-In-1 Shoulder Plane
(1) Black storage case
(1) Certificate of Inspection
(1) Owner's manual

More Information
Brand Rockler Bench Dog
Weight 2.95
Tech Spec
  • Plane Model: 3-in-1 Shoulder Plane
  • Plane Weight: 2.2 pounds
  • Sole Flatness: 0.002'' to 0.004'' tolerance
  • Sole Length: 6-1/8''
  • Sole Width: 1''
  • Blade Width: 1''
  • Blade Thickness: About 1/8''
  • Blade Bevel Angle: 25°
  • Blade Bevel Up/Down: Up
  • Blade Hardness: 55-60 HRC
  • Frog/Blade Seat Angle: 19°
  • Handle Material: Brass
  • Body Material: Cast iron
  • Blade Material: Hardened carbon steel
  • Lever Cap Material: Brass
Unit of Measure Each
