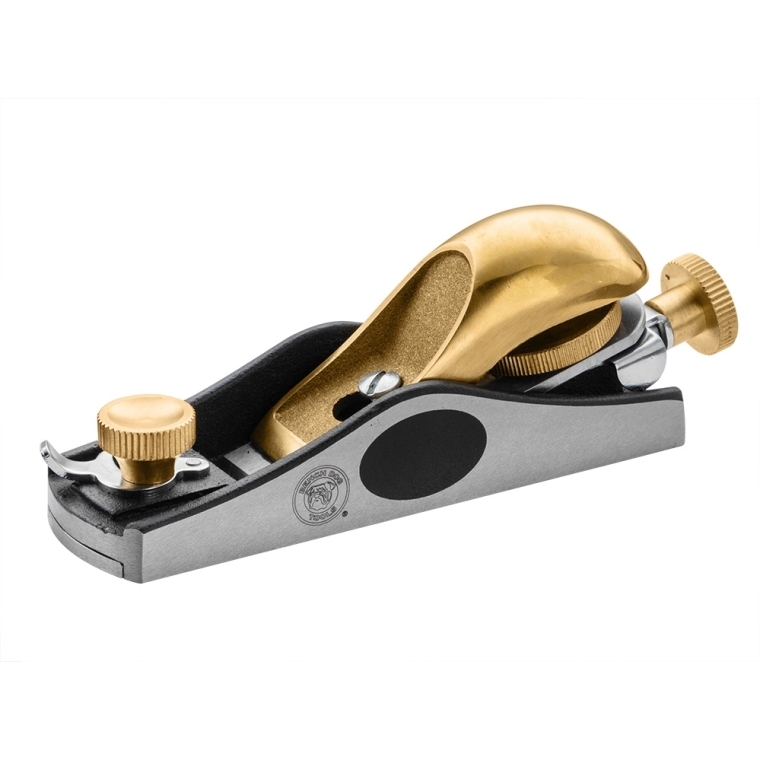

Bench Dog No. 60-1/2 Block Plane


A low angle, adjustable mouth and precision machining promise superior performance when trimming end grain and edge grain.
Item #
51006
Current Price: $95.99 ea Original Price: $119.99 ea
In stock

Get Expert Advice

Return Policy

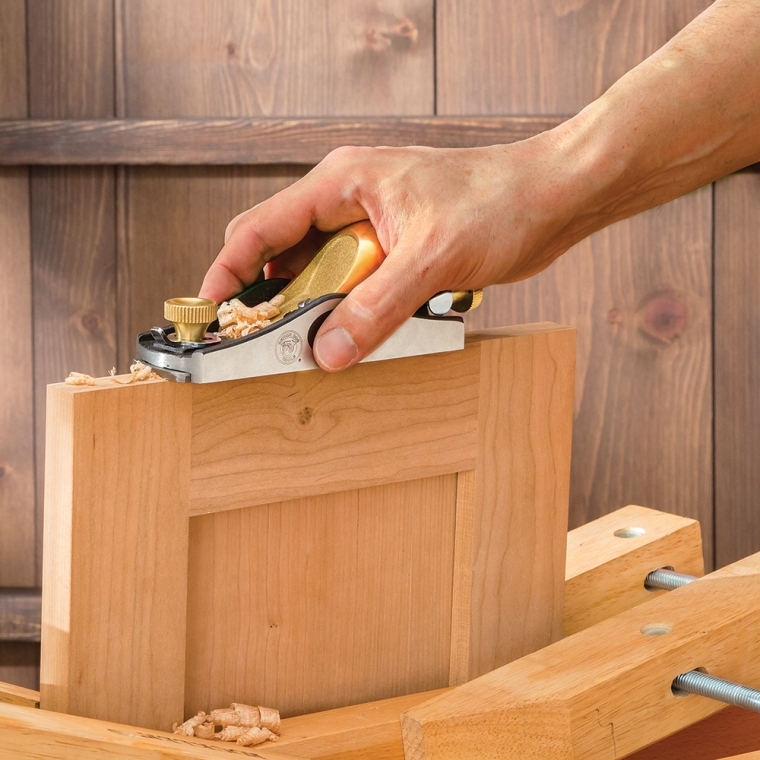

An acute bedding angle, finely adjustable mouth opening and top-quality fit and finish combine to create a block plane that makes quick work of adjusting miters, joinery and fitting doors and drawers. The sole is precision ground for flatness right out of the box. Easily adjust the mouth opening to achieve the finest shavings, while minimizing tearout. Since the frog and base are a one-piece casting, and the blade is machined from thick 1/8'' steel, chatter is virtually eliminated. Fine grain castings are on par with many top-of-the-line hand planes. Each plane includes a case, sock and a Certificate of Inspection with measurements specific to your plane for sole flatness and blade hardness.

Features:

  • Ideal for trimming and adjusting miters, joinery and fitting doors and drawers
  • Ductile cast iron body for superior strength and resistance to impact
  • Adjustable mouth lets you narrow the blade opening for reduced tearout
  • Easy depth-of-cut adjustment and lateral blade adjustment
  • Solid brass cap iron and threaded fittings for smooth action
  • Sole of plane and back of blade are flat to tight tolerances
  • Blade and sole are treated with a protective layer of oil
  • Certificate of Inspection included for each tool
  • Minimal setup and tuning required before use

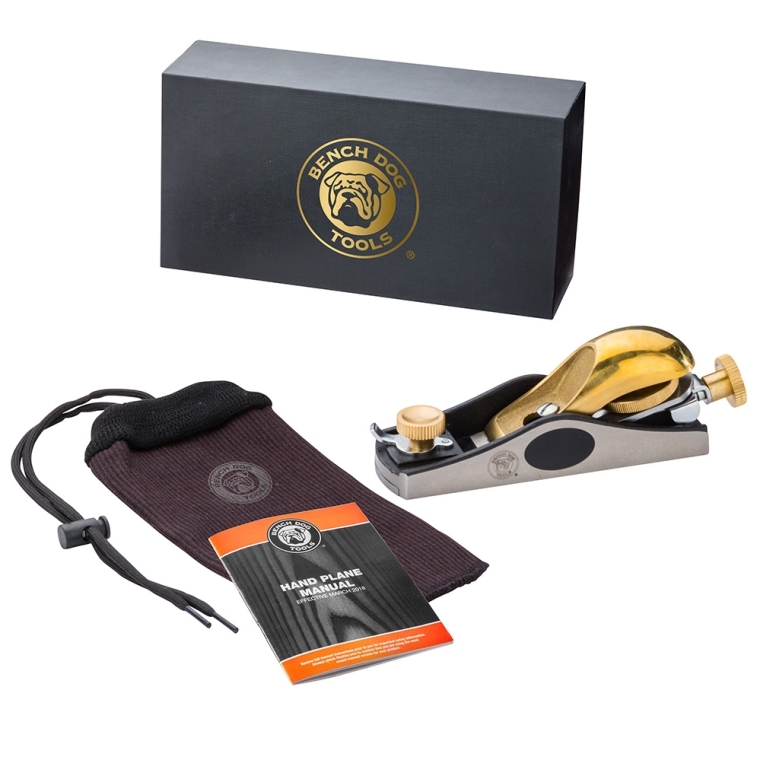

(1) Bench Dog® Tools No. 60-1/2 Block Plane
(1) Plane sock
(1) Black storage case
(1) Certificate of Inspection
(1) Owner's manual

More Information
Brand Bench Dog
Weight 2.550000
Tech Spec
  • Plane Model: No. 60-1/2 Block Plane
  • Plane Weight: 2.2 pounds
  • Sole Flatness: 0.002'' to 0.004'' tolerance
  • Sole Length: 6-1/4''
  • Sole Width: 1-5/8''
  • Blade Width: 1-3/8''
  • Blade Thickness: About 1/8''
  • Blade Bevel Angle: 25°
  • Blade Bevel Up/Down: Up
  • Blade Hardness: 55-60 HRC
  • Frog/Blade Seat Angle: 15°
  • Handle Material: Brass
  • Body Material: Cast iron
  • Blade Material: Hardened carbon steel
  • Lever Cap Material: Brass
Type Block Planes
