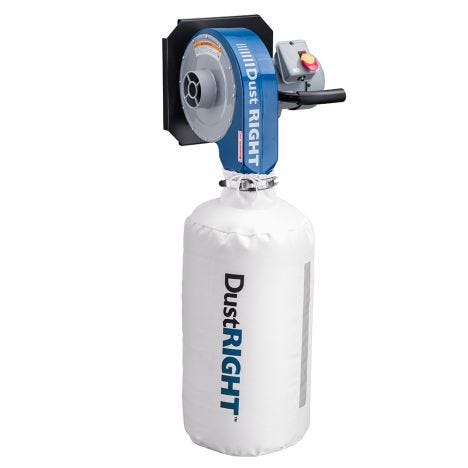

Dust Right Wall-Mount Dust Collector, 650 CFM

Heavy-duty performance meets out-of-the-way convenience.
Item #
58860
Rating:
78% of 100

By pairing an impressive flow rate of 650 CFM with a unique wall-mount design, this collector gobbles up dust at the source, without hogging up floor space. It mounts quickly and easily to the wall with a simple included Z-bracket. Plus, it's portable! Just set up additional Z-brackets (#21537, sold separately) around your shop to create dust-collection stations close to the tools you're working with. The comfortable foam-gripped handle makes transportation and setup a breeze. The motor features a sealed shaft and bearings for quiet, long lasting operation, and the inlet accepts standard 4'' hose. The collector includes a 30-micron bag with a clear window on the side so you can see whether it's full. A zipper in the bottom makes emptying a breeze.


Features:

  • Collects dust while conserving floor space
  • Can be moved around the shop with additional wall brackets (#21537, sold separately)
  • Includes 30-micron bag with a clear ''bag full'' window and zippered closure for easy emptying
  • Optional 5-micron bag (#20431, sold separately) offers finer particle retention
  • Optional Canister Filter (#53522, sold separately) filters down to 1 micron
  • Not recommended for use with plumbed-in, multi-branch dust collection systems.
(1) Dust Right Wall Mount Dust Collector
(1) Wall Mounting Z-Bracket
(1) 30 Micron Bag
More Information
Brand Dust Right
Weight 50.2000
Tech Spec
  • Decibel Rating: 80-85 db
  • Amps: 12
  • Volts: 110
  • Height: 48''
  • Bag Capacity: 15 Gallons
  • Flow Rate: 650 CFM
  • Filter Type: Bag
  • HP: 3/4 HP
  • Weight (lbs): 50.0500
  • Static Pressure: 5.00" of Water
3.9 / 5.0
68 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
37
10
9
3
9
Rob
It is working great, low noise level and the suction is great.
July 2, 2020
Purchased
1 month ago
Woodworking Experience:
Intermediate
This unit literally Sucks! Which is exactly what it should do
June 28, 2020
Purchased
1 month ago
Woodworking Experience:
Advanced
Quiet and efficient
This dust collector was bought to specifically gather dust from a Dewalt surface planer. It works efficiently and relatively quietly -- much quieter than the shop vacuum I was previously using. While planing a large number of 100-year old barn wood planks, I had used a quarter of the collection bag before I noticed. Dust in the bag, not in the air.
May 29, 2020
Purchased
2 months ago
Woodworking Experience:
Intermediate
This thing really sucks!
Works great! Much quieter than shop vacs. I have this connected to my Axiom AR6 CNC machine. I bought the attachments package for cleaning the floors and work surfaces as well. Finally, my shop is presentably clean.
May 29, 2020
Purchased
3 months ago
Woodworking Experience:
Intermediate
Great Job!
I love this dust collector so much!
It does an excellent job in my shop & makes quick work of my cleanup needs which are many.

I will say Rockler should be more generous with the parts they include with their products, neither the dust collector or accessory hose I purchased came with the worm drive clamps needed to attach them. I wound up buying these elsewhere; however for the price paid for this product it would have been nice if they could have thrown us all a bone on something like a hose clamp that retails for $1.00.
May 22, 2020
Purchased
3 months ago
Woodworking Experience:
Intermediate
I use the collector with my Dewalt planer, Dewalt contractor tablesaw, and Shop Fox 6" jointer. Excellent suction on all three machines, even when using step-down adapters. I initially wondered whether or not the 650 CFM would be sufficient, but it is more than enough for my heaviest work - even over 20' of 4" hose.
May 5, 2020
Purchased
3 months ago
Woodworking Experience:
Advanced
Awesome! World of difference for a clean garage!
Awesome! Not overly loud and truly the world of difference for a clean shop. I used rocklers kit for a separate media separator prior to the collector. Do wish it had a longer power cord however.
March 12, 2020
Purchased
5 months ago
Woodworking Experience:
Intermediate
Awesome vacuum and price.
Perfect size for my shop, easy to install. Quite and powerful. Love mine!
March 7, 2020
Purchased
5 months ago
Woodworking Experience:
Intermediate
WORKS GREAT// I HAVE SEVERAL HANGERS SO I CAN MOVE IT AROUND SOME
February 15, 2020
Purchased
1 year ago
Woodworking Experience:
Intermediate
Small Shop
I added the in-line filter and I am very pleased with the results. Be mindful that if you are not exhausting this equipment to the outside, one must still wear a dust mask since there is probably other dust in the shop that will e stirred up.
February 10, 2020
Purchased
6 months ago
Woodworking Experience:
Intermediate
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 51 questions Browse 51 questions and 150 answers
Why did you choose this?
Rockler Store
In order to keep work shop clear of dust
Robert O on Jul 11, 2020
Gift
Kathy W on Jul 5, 2020
In order to keep work shop clear of dust
Robert O on Jul 11, 2020
I was looking for a dust collector and this one looks simple and powerful.
Ramesh RASAIYAN A on Jul 9, 2020
Gift
Kathy W on Jul 5, 2020
Small Shop
richard s on Jun 23, 2020
Portability,size,price
chris w on Jun 20, 2020
just what I need for my small shop
Steve B on Jun 11, 2020
Seems like the right fit for a small shop
David N. R on Jun 7, 2020
I reviewed several units and kept coming back to this model. I watched a few youtube videos and was impressed with this unit. I could not purchase a larger unit as I do not have seperate circuits.
Gary Geilow A on Jun 2, 2020
Wanted a wall mount unit to save on footprint for smaller shop
Jon K on May 21, 2020
I feel this was the right fit for my shop.
Mark A on May 15, 2020
I purchased this, along with the Dust Right 4" 21 ft hose and Quick Change Multi-Port tool Set to step up my garage dust collection. This should reach every corner of my garage shop.
Mason W on May 15, 2020
Small shop, good reviews.
James J on May 10, 2020
Best com for price
S L on May 5, 2020
Wall mountable takes up less room in my smaller shop. I can only use one tool at a time. W quick connects takes only seconds to move the expandable hose.
D R on May 2, 2020
price and size of workshop
John B on Apr 27, 2020
I wanted a wall-mounted system to save space. I will be the only one working in my shop, therefore no more than 1 tool will be used at a time.
Joseph J on Apr 25, 2020
Lack of floor space in my shop
Doug W on Apr 19, 2020
Best price to fulfill my needs in my shop
Dan T on Apr 16, 2020
Unknown. It is my first time use.
Duke P on Apr 13, 2020
The set up is off the floor and all in one package
Milton R on Apr 11, 2020
Price and size perfect for garage shop
Brad P on Mar 15, 2020
small shop space
michael m on Feb 3, 2020
online reviews are very good for this product
James L on Feb 2, 2020
Great reviews, portability, and just the right amount of power for a small garage shop.
Pete L on Jan 28, 2020
My neighbor has one and I use his alot. It works great in a small shop
Phil C on Jan 11, 2020
Great reviews, Rockler satisfaction guarantee, compact size and Rockler’s optional attachments.
Mike B on Jan 6, 2020
good ratings, compact for a small shop
Ed L H on Jan 4, 2020
Size - Garage Workshop doesn't allow for a floor-based unit.
Roger M on Jan 3, 2020
my husband wanted it
michele c on Dec 9, 2019
size
Samuel P on Dec 6, 2019
quality
JIM N on Nov 25, 2019
simple wall mount single hose
H. Michael H on Nov 9, 2019
Wall mounting will save space in my garage shop.
David T on Oct 13, 2019
wall mount is better, move unit if needed
Dennis T on Sep 7, 2019
to make my shop cleaner
Randy E on Sep 4, 2019
It's an attractive option for a small shop because of its portability and compact versatile features
Sheila W on Jun 23, 2019
Best on the market!
Eltaro H on May 31, 2019
Needed a small unit powerful enough to use with planer
Dennis R on Apr 28, 2019
Replacement for item damaged in fire.
Stanley S on Mar 26, 2019
My shop Vac could not handle bigger tools. Been wanting this item, so I could not wait any longer. I love the small design.
Michael C on Mar 20, 2019
After extensive researching and considering my shop needs, this product made the cut.
Mary W on Mar 13, 2019
Good rating.
Jon H on Mar 5, 2019
Recommended by a friend for a strong ventilation system
Tsurit B on Jan 5, 2019
it's small enough to fit in the space needed
Matthew D on Dec 9, 2018
It was on our son-in-laws Christmas wish list and we have purchased from Rockler in the past so knew it was a good choice!
Lori D on Nov 26, 2018
to save room in my shop
Harvey V on Nov 24, 2018
It is portable.
David W on Nov 19, 2018
To keep the area clean. Ease of use
DAWN M. on Nov 16, 2018
Excellent reviews on this and the predecessor unit indicate this is a good value. I need a collection system with some flexibility.
David Y on Aug 20, 2018
Compact size and mobility
Ross R on Aug 12, 2018
I was looking for a dust collector and this one looks simple and powerful.
Ramesh RASAIYAN A on Jul 9, 2020
Small Shop
richard s on Jun 23, 2020
Will this provide enough suction for powermaster pm1000 table saw? Can i connect my cyclone unit in front of this?
Dan B on Jul 15, 2018
Any hoses, accessories included?
ChetP on Jul 15, 2018
BEST ANSWER: Rockler carries a wide variety of accessories, hoses and fittings for this item. They are not, however, included with the basic unit.
what is the farthest and the closet the studs can be for the z-bracket? also what is the cord length?
jon b on Jul 15, 2018
Dust Right Wall-Mount Dust Collector, 650 CFM
Dust Right Wall-Mount Dust Collector, 650 CFM
Z-Brackets for Rockler Dust Collector
Z-Brackets for Rockler Dust Collector
BEST ANSWER: I ran a couple 2x6 horizontally on the wall to 1) hang the collector and 2) support the lower edge of the base plate, which is too narrow to span the distance between studs.
What is the mounting plate width ?
John D on Jul 2, 2018
BEST ANSWER: Enter The mounting plate is 14" x 14" answer to this question.
Will this work with the Super Dust Deputy 4" Deluxe Cyclone Separator?
jax b on Sep 9, 2018
BEST ANSWER: Can always ask Oneida. It's just common sense, though. There are pictures out there of people using them like that.
Can you plug this into a 10ft extension cord? I do not have an accessible plug.
Travis S on Jun 26, 2018
BEST ANSWER: Specs say 12 amps so an extension cord sized correctly should be no problem. Cord with 14 gauge wires should work for 10 feet although I always error on the safe side and would go with a cord with 12 gauge wires.
can the 4" hose be stepped doen to 2 1/2" to fit all my machines?
Toby F on May 11, 2019
BEST ANSWER: Yes - works great with my power equipment and my router table.
Can the unit be rotated 180 degrees as if it were mounted on the ground or a workbench with the exhaust port and bag parallel to the ground?
Brandon O on Aug 31, 2018
BEST ANSWER: Yes
How well would it work with a bench top planer like DW735?
BravoE on Nov 9, 2019
BEST ANSWER: I'll happily give it 10/10 with my new DW735.
what are the dimensions of the Rockler Dust Right 650 wall mount dust collector?
Larry B on Aug 4, 2019
BEST ANSWER: The mounting bracket is 14" x 14". The unit is approximately 17" tall and 15" wide. With the collection bag mounted the complete unit requires a height of approximately 52".
How wide is the collector? I have very limited space in my garage and had to sell my Jet collector because it was just too big for my garage/shop area.
John K on Aug 4, 2018
BEST ANSWER: With a 90 Deg Elbow it is 20"W, with out the Elbow it is 16" works great in my garage area.
Can this be used with the Dust Right Dust Separator, or will transition from 4’ to 2.5’ affect CFM?
Pascal H on Oct 30, 2019
BEST ANSWER: I do not know . I did not have it long enough to tell. Sorry Dean
Is this powerful enough to set up a hose system for several tools controlled with blast gates?
Daniel B on Dec 29, 2018
BEST ANSWER: Honestly depends on how you set up your system. If you put the blast gates near the unions where your main run branches off to eliminate un-needed piping you should be fine. Limit the amount of flex hose you use and stick to rigid lines. Should be ok if you only have a small shop with only 2-3 major tools plumbed in.
What accessories should I consider ? Like hoses, hose clamps and other attachments?
john y on Oct 15, 2018
BEST ANSWER: At a minimum you are going to need the Hose (comes in 3 different lengths) & the Quick Change Multi-port Tool Set
Do you need to use the bag? Can you use a metal barrel?
Quinn W on May 19, 2020
BEST ANSWER: Yes. The bag not only acts as a receptacle for the dust but also to filter the exhaust air from the collector. You can add a dust separator to the collector with Dust Right® 4'' Dust Separator Components (Item #34367). This will allow you collect a lot of the larger particles in a separate container.
Dust Right® 4'' Dust Separator Components, with FREE Downloadable Plan!
Dust Right® 4'' Dust Separator Components, with FREE Downloadable Plan!
Do the hoses connect to make a longer run if needed ?
Eugene L on Feb 12, 2020
BEST ANSWER: We have many different hose connectors. Are you referring to a specific hose?
Would this be adequate for beginner woodworker with a 24x24 shop?
Randy D on Sep 7, 2019
BEST ANSWER: I believe so. I have mine in a one-car garage in which I occasionally need to use to store a car (image that!). I have pvc, blast gates and flex hose to vacuum my table saw, drill press, router table and planer. Can’t imagine how I ever got along without it.
How far from the wall does the dc extend (including the mounting plate)? What is the width? Height without the bag/filter?
potential b on Jul 29, 2019
BEST ANSWER: The unit extends 17 inches from the wall if you include the handle. Without, it is 14.5 inches. With the bag, it is 20 inches. For width, you need to include the 4 inch right angle connector as well as a few inches on the motor side to allow motor cooling in the end vents.
are the hose connections & electric motor able to change sides, I would need the hose connection on the right side?
Kenneth M on Dec 28, 2018
BEST ANSWER: The housing is not reversible. I couldn’t attach photos but after looking at mine it is apparent the motor and intake cannot be reversed
How loud is this versus a shop vac?
Concepcion on Jun 16, 2020
BEST ANSWER: About the same in terms of intensity. More of a dull sound (shop vac is more piercing). It's not a quiet machine.
How height & wide is the bag when it is inflated?
Tyler B on May 21, 2020
BEST ANSWER: I don't have details on just the bag. However, the whole unit is 48" tall with the bag being 15 gallon in capacity.If you scale off the photo that may be able to give you an approximate size for the bag.
Can you add a Y adapter, like on the 1250 CFM, for one permanent connection and one changeable?
Dreck K on Apr 7, 2020
Dust Right Wall-Mount Dust Collector, 650 CFM
Dust Right Wall-Mount Dust Collector, 650 CFM
Y-Connector Dust Collection Fitting
Y-Connector Dust Collection Fitting
BEST ANSWER: Yes. I have a y adapter for that purpose.
How loud is this collection system? Is it louder than the typical shop vac?
David J on Sep 12, 2019
BEST ANSWER: It's not as loud, but has a lower "tone", like comparing an alto singer to a soprano.
Also, I would recommend something with more power. This one is enough for a single tablesaw, bandsaw, etc, on a short run of hose. Had it been available, then I would have bought the stronger model now on sale.

The jet 1 1/2hp vortex dust collector with cost about the same as the Rockwell with the optional cannister, but will be MUCH more powerful and a little quieter. I sold this jet to get the wall mounted collector, which I now regret.
Can this be used with aluminum chips?
Julian on Aug 12, 2019
BEST ANSWER: We do not recommend using this, or any, dust collector for materials other than those for which it was specifically designed..
What is the Length of the Power Cord from the Main body to the plug? I prefer not to use Extension Cords.
ROBERT H. on Jul 28, 2019
BEST ANSWER: I’m not exactly sure but I think it’s 6ft. This way the current draw doesn’t have to travel a long distance and this will cause voltage drop to the machine which can make it not perform at its max capacity. I would suggest plugging into an arc fault circuit interrupter receptacle.
Could this be mounted/hung from the ceiling?
Danny S on Oct 10, 2018
BEST ANSWER: Maybe with a different bracket, The blower outlet that bag connects to needs to be vertical pointing downward
What is the db noise level?
Fred J on Sep 5, 2018
BEST ANSWER: I don't have a meter to measure. I know I can't here the speakers in the shop, but I don't mind that. Overall I am more happy with the performance then worrying about the noise.
II just added the hose to this and ran it for the first time. I feel a lot of air coming out around the on/off switch. Seems like I'm not getting all the CFM this is rated for. What can I do to fix this?
Matt C on Jan 10, 2020
Dust Right Wall-Mount Dust Collector, 650 CFM
Dust Right Wall-Mount Dust Collector, 650 CFM
5-Micron Replacement Bag for Dust Right 650 CFM Wall-Mount Dust Collector
5-Micron Replacement Bag for Dust Right 650 CFM Wall-Mount Dust Collector
4'' Dia. Dust Right® Hose, 2' L Compressed, Extends to 14' L
4'' Dia. Dust Right® Hose, 2' L Compressed, Extends to 14' L
BEST ANSWER: I had the same problem I was very unhappy. I ended up getting a replacement bag and it’s made of a different material and it works great. It seems the bag that it comes with does not work very well at all.
Can this be wired 220?
Steve H on Dec 30, 2019
BEST ANSWER: No, it can't
can you add the canister filter at a later time?
JOHN D on Oct 19, 2019
BEST ANSWER: I don’t see why you couldn’t add it later. I ordered mine together, but the motor and filter came in separate boxes. BTW, I highly recommend the filter.
Prop 65 WarningWARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov

Prop 65 WarningWARNING: Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood.
