Special Price $674.99 Each Regular Price $749.99 Each
Direct Ship
Enjoy abundant power, plus one-handed speed changes, laser crosshairs and an integral LED light—all in a compact benchtop tool!

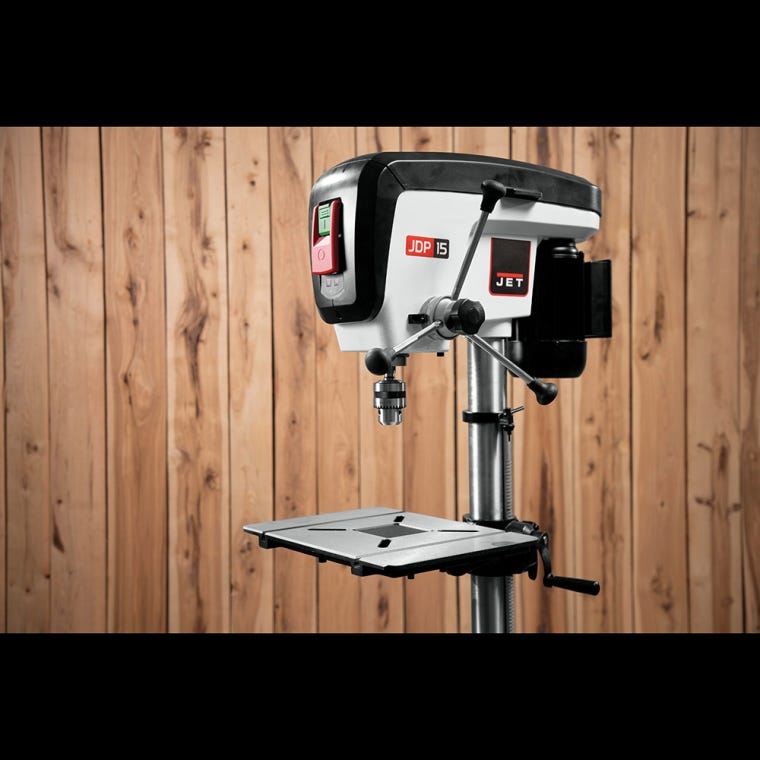

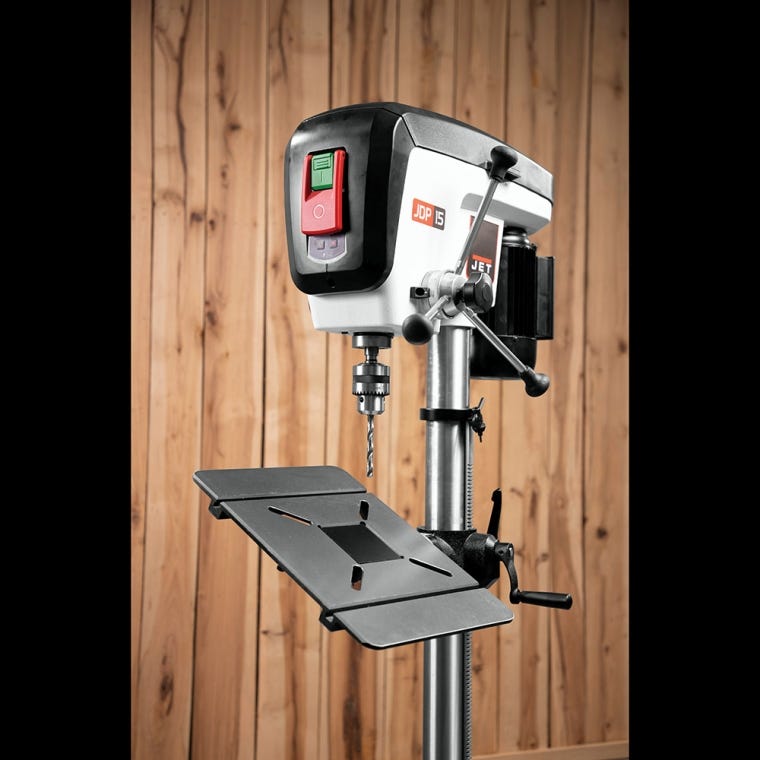

Jet® JDP-15B Benchtop 15'' Drill Press

Item #
51593
Rating:
84% of 100

Buying a benchtop drill press doesn't mean you need to sacrifice features or power, and the JET JDP-15B 15'' Benchtop Drill Press proves it. With its powerful 3/4HP motor and a full 3-1/8'' of spindle travel with just one turn of the handle, it makes quick work of drilling holes in nearly any stock. And with the Xacta laser crosshairs, you'll know exactly where the drill bit will land. The sturdy cast iron head, base and table provide stability and dampen vibration, while the one-handed belt-tensioning system allows easy speed changes.


Features:
  • Spindle travels a full 3-1/8'' with one revolution of the handle
  • Large 12-1/2'' x 17'' precision-ground work table features twin T-slot grooves and 4 table slots
  • One-handed belt tensioning for rapid speed changes
  • Power switch features a safety key and large, paddle-style off button

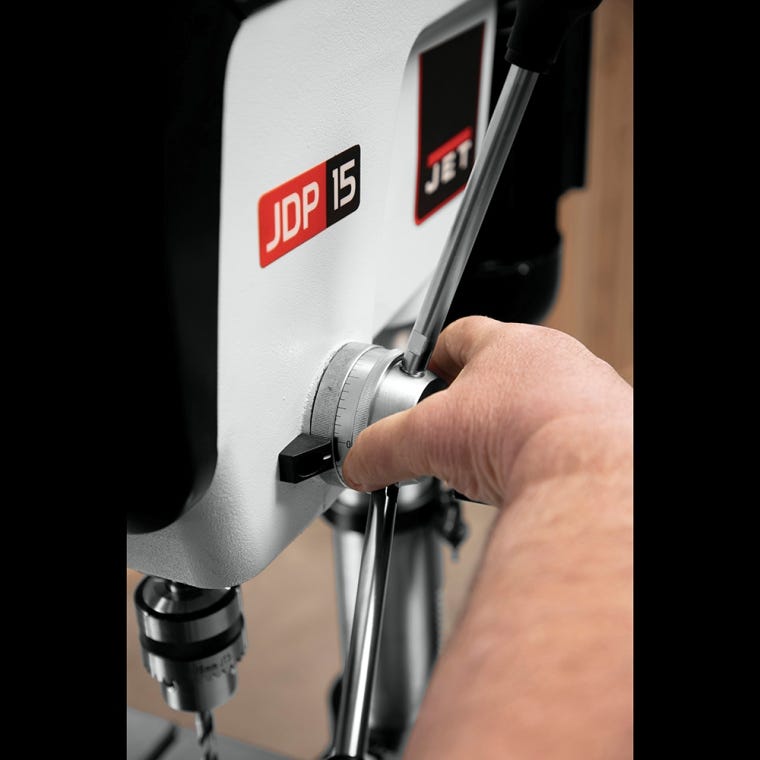

  • Integrated depth stop makes repetitive drilling quick and easy
  • Xacta-X laser system easily locates the center of the drill bit
  • Long-lasting, built-in LED work light reduces shadows
  • Table edge lip for easy clamping
  • Replaceable MDF table insert
  • Large cast iron base for stability
  • Powered by an efficient 3/4HP, 1Ph, 115V TEFC motor and poly V-belt drive system
  • CSA Certified
  • Ships directly from the manufacturer.
  • Must be shipped within 48 Contiguous United States.
  • Estimated delivery time: 15 business days
(1) Jet® JDP-15B Benchtop 15'' Drill Press
More Information
Brand Jet
Manufacturer Part Number 716200
Weight 154.0000
Tech Spec
  • Style (Type): Benchtop Model
  • Swing: 15"
  • Spindle Travel: 3-1/8"
  • Number of Spindle Speeds: 16
  • Spindle Taper: MT2/JT3
  • Spindle Speed Range (RPM): 210 - 3500
  • Spindle Distance to Table (Max.): 18-5/16"
  • Table Size: 12-1/2" L x 17" W

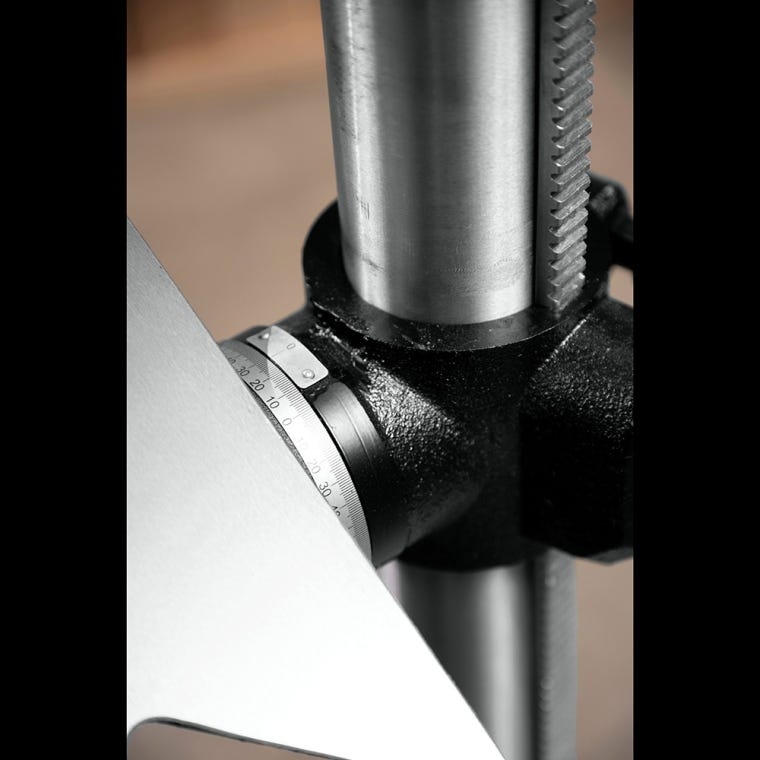

  • Table Tilt (Deg.): 45 Left and Right
  • Chuck Size: 5/8"
  • Column Diameter: 2-3/4"
  • Base Size (In.): 18 x 11-3/8
  • Motor Power (HP): 3/4
  • Motor Phase (PH): 1
  • Motor Voltage (V): 115
  • Prewired Voltage (V): 115 only
  • Motor Amps: 9
Technical Documents
4.2 / 5.0
5 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
3
1
0
1
0
Solid machine.
Solid machine
July 28, 2019
Purchased
2 months ago
Woodworking Experience:
Intermediate
Awesome drill
Made a 26” High tool cart for this drill and along with a woodpecker drill top table, it is a great drill press.
December 11, 2018
Purchased
1 year ago
Woodworking Experience:
Beginner
Great
Excellent press. I mounted mine on a mobile cart along with my disc sander. Great accuracy with the flexibility to move it around. This replaced my stationary one.
October 2, 2018
Purchased
over 3 years ago
Woodworking Experience:
Advanced
Good quality
Other than the weight to set up, this is good.
December 24, 2018
Purchased
11 months ago
Woodworking Experience:
Beginner
Jet Drill Press
The drill press is easy to assemble, and it runs perfectly. The features of the lED light and the laser alignment work perfectly. The depth gage is very simple to set. I am delighted with the drill press.
June 24, 2019
Purchased
3 months ago
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 8 questions Browse 8 questions and 24 answers
Why did you choose this?
Rockler Store
Good reviews on this product.
Reed Biggers I on Dec 8, 2018
I chose the JDP-15B after a LOT of research into benchtop market specifically, as I do not have the space for a full size drill press. This JET unit has a lot of thought designed into it and I intend to use those features to their fullest.
michael v on Feb 4, 2017
Good reviews on this product.
Reed Biggers I on Dec 8, 2018
Wide range speeds especially low speeds less than 300 RPM. Jet tools quality.
Louis S on Jan 15, 2018
I chose the JDP-15B after a LOT of research into benchtop market specifically, as I do not have the space for a full size drill press. This JET unit has a lot of thought designed into it and I intend to use those features to their fullest.
michael v on Feb 4, 2017
It's made for woodworking.
Ryan G on Jul 10, 2016
Wide range speeds especially low speeds less than 300 RPM. Jet tools quality.
Louis S on Jan 15, 2018
It's made for woodworking.
Ryan G on Jul 10, 2016
is there a mortising attachment that fits this tool?
Michael S on Aug 22, 2016
If a person is 6’ tall. How tall should the bench top be that the drill press sits on ?
Jack B on Sep 19, 2019
BEST ANSWER: I am 6’2” and originally put it on top of my bench that was 36” tall. This made it impossible to change the belts for speed control unless I stood in a ladder. So I built a custom cabinet for it and the base of the drill is now sitting on a 27.5” high top. This makes the belts easy to get to for adjustment and the downfeed handles are at a convient height. Hope this helps and I absolutely love the Jet JDP-15B. The depth stop is my favorite feature
Does this unit have the ability to operate in reverse?
RobertC on Nov 29, 2018
BEST ANSWER: I do not believe so, but why would you need it to? To be sure, I recommend you download the users manual and review it.
A drill press has a swing of 15". Does that mean the center of the chuck is 7.5" away from the horizontal support or throat?
Ernest L on Jun 11, 2018
BEST ANSWER: Ennest, The center of the chuck is 7.5" from the support column. I've had my drill press for about a year and I'm very happy with it. Once you calibrate the laser crosshairs you will wonder how you got along without it.
Is any of this made in the USA or just CHINA / other?!?
Bob S on Aug 25, 2016
Jet® JDP-15B Benchtop 15'' Drill Press
Jet® JDP-15B Benchtop 15'' Drill Press
Powermatic® 1 HP Drill Press, PM2800B
Powermatic® 1 HP Drill Press, PM2800B
Jet® JDP-17 17'' 3/4HP Drill Press (716300)
Jet® JDP-17 17'' 3/4HP Drill Press (716300)
Jet® JWDP-12 12'' Drill Press with Digital Read Out
Jet® JWDP-12 12'' Drill Press with Digital Read Out
Jet® JDP-15F Floor-Standing 15'' Drill Press
Jet® JDP-15F Floor-Standing 15'' Drill Press
BEST ANSWER: All of these tools are made in Taiwan, to very strict Quality Control standards of Jet/Powermatic. They are of very high quality. For a number of reasons, there aren't many power tools currently made in the USA, although some are assembled here. Perhaps this will change in the future.
is there a manufactured fence designed to work on this table top?
Allen K on Jul 2, 2018
BEST ANSWER: I purchased the WPDPPACK1 Drill Press Table from woodpecker and the DP-3 fence. They work very well.
Why cant i pick one up at your store?
Ellie S on Aug 24, 2017
BEST ANSWER: Ellie, I couldn't pick up the one I bought either, it had to be shipped to my home. Perhaps for the stores it's a matter of lack of space. But I can tell you for sure that I'm glad it was shipped to me because this drill press is VERY heavy and well made..it's only after I got it our of the box that I could handle all the pieces to assemble it.
JDP-15B is possible to swap the handle to the other side. Not that its life threatening but I'm Left handed and would like the spindle and handle on the Left side?
Papa JonTK on Jul 20, 2017
BEST ANSWER: Unfortunately no, the handles and depth stop functions on the right side are not interchangeable with the left side return spring adjustment assembly. The machining work done to the drill head is not apparent in the manual's photos or diagrams, it is far more involved than a simple hole running from one side to the other.
