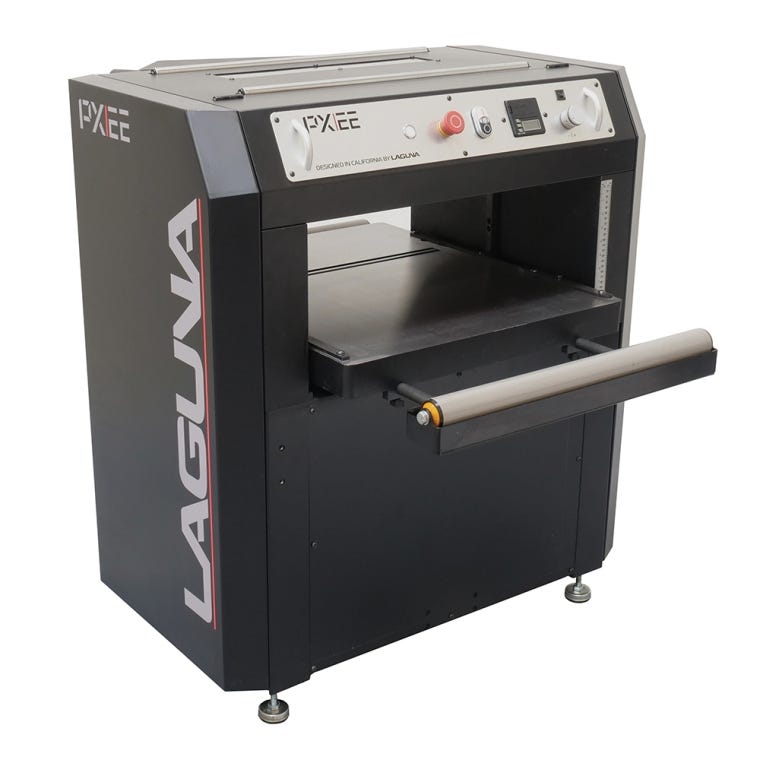

Laguna PX|22 ShearTec II 7.5HP 1-Phase 22'' Planer

Features a 7.5HP motor with a helical cutterhead and carbide inserts for an incredibly smooth finish and far less noise.

Item #
63063
$7,999.00 Each
Additional Shipping and Handling Charge: $199
Direct Ship - Estimated Ship Date: 04/21/2022
MANUFACTURER BACKORDER
Estimated Ship Date: 04/21/2022

This item is shipped directly from the manufacturer who is currently on backorder. They have given us the estimated ship date above for new orders placed today. This date will be updated regularly and we expect continued backlogs for several months on this item and other power tools given current Covid-19 related trends.

Get Expert Advice

Return Policy

Laguna's PX|22 Planer is loaded with features for convenience, power and versatility. With 22'' of width, you can plane nearly any board and the powerful 7.5HP 1-phase motor won't break a sweat. Electronic variable speed lets you speed up the material feed for quick thicknessing, or to use slower rates for a finer finish. The ShearTecII helical cutterhead features solid carbide inserts that produce an incredibly smooth finish and produce far less noise. Snipe is virtually eliminated by the carefully located pressure bar, while the digital readout and speed controls are conveniently mounted at eye level and angled toward the user for ergonomics.

Features:

  • Segmented infeed roller lets you feed multiple boards without having individual boards stall out due to small variations in thickness
  • Electronic variable speed lets you speed up the material feed for quick thicknessing or to use slower rates for more cuts per foot
  • Infeed/outfeed rollers instead of cast iron tables for a more compact footprint

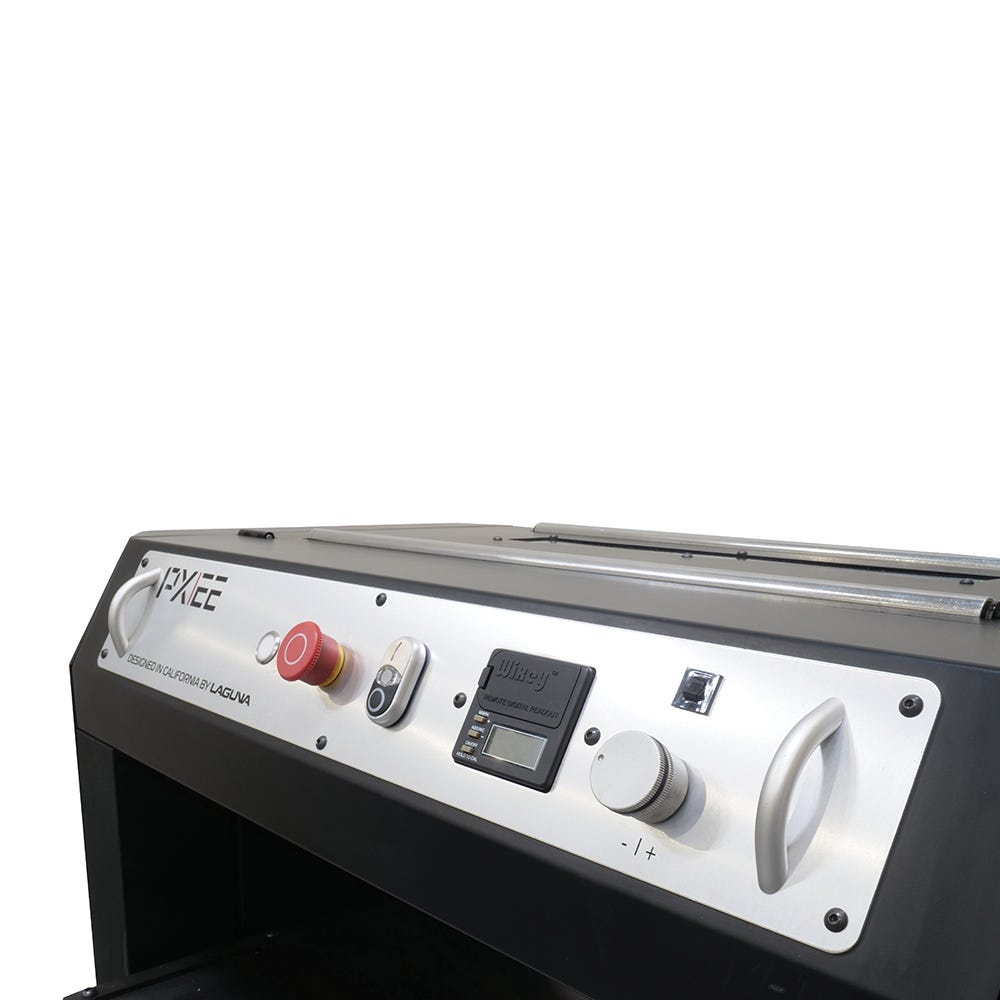

  • DRO and speed control are mounted on the control panel and angled toward the user for better ergonomics

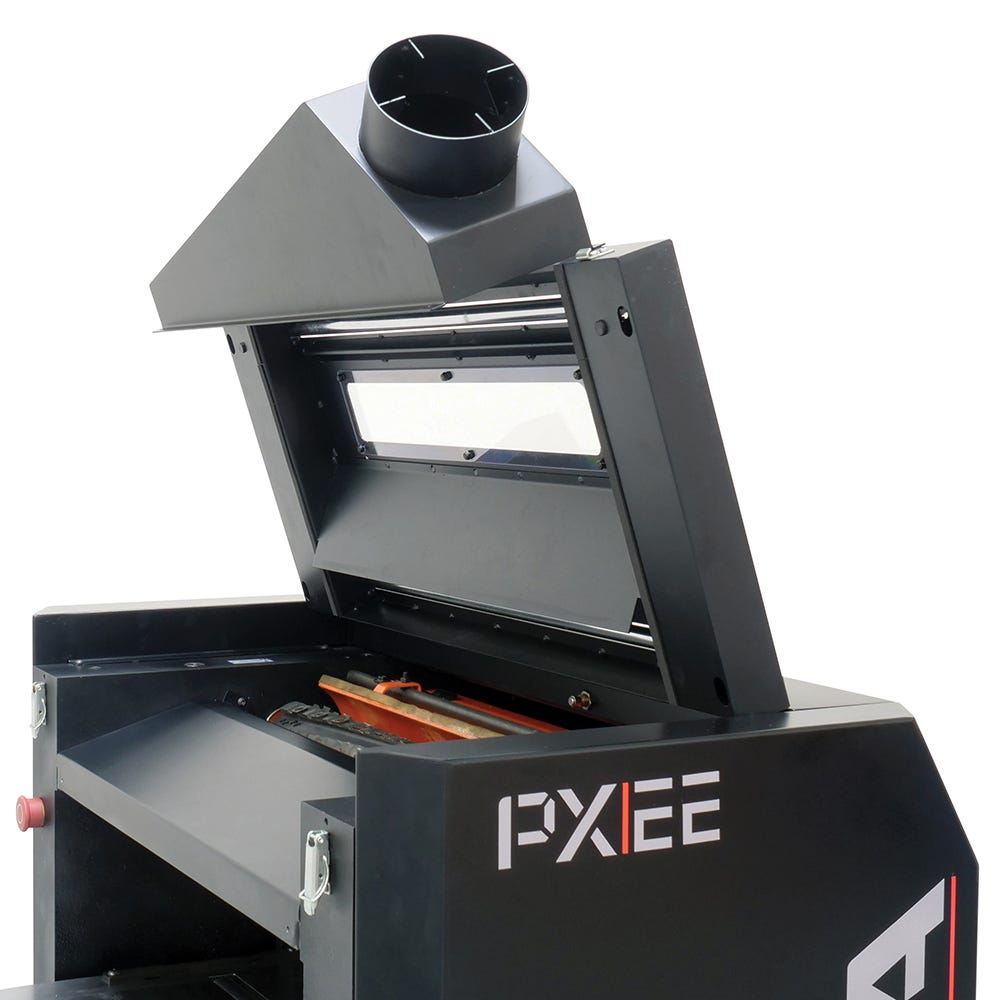

  • Easy access to the ShearTecII head is provided via a hinged cover with a safety switch

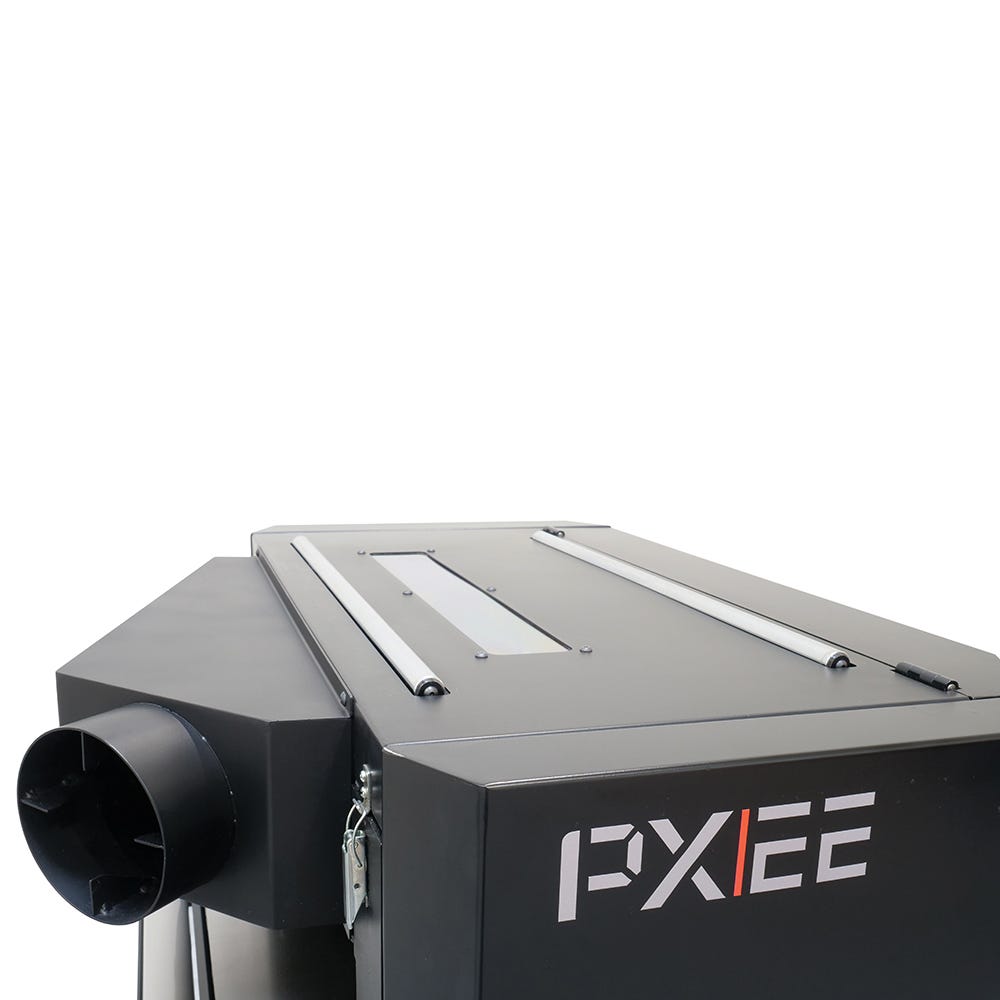

  • Large dust chute can be pointed left or right on the back of the machine for optimal hose routing
  • Bed roller adjustment mechanism provides a highly refined movement
  • Bed is secured by a 4-post system for consistent performance with every cut
  • Infeed roller is corrugated and segmented, while the pressure bar is located close to the cutterhead, virtually eliminating snipe

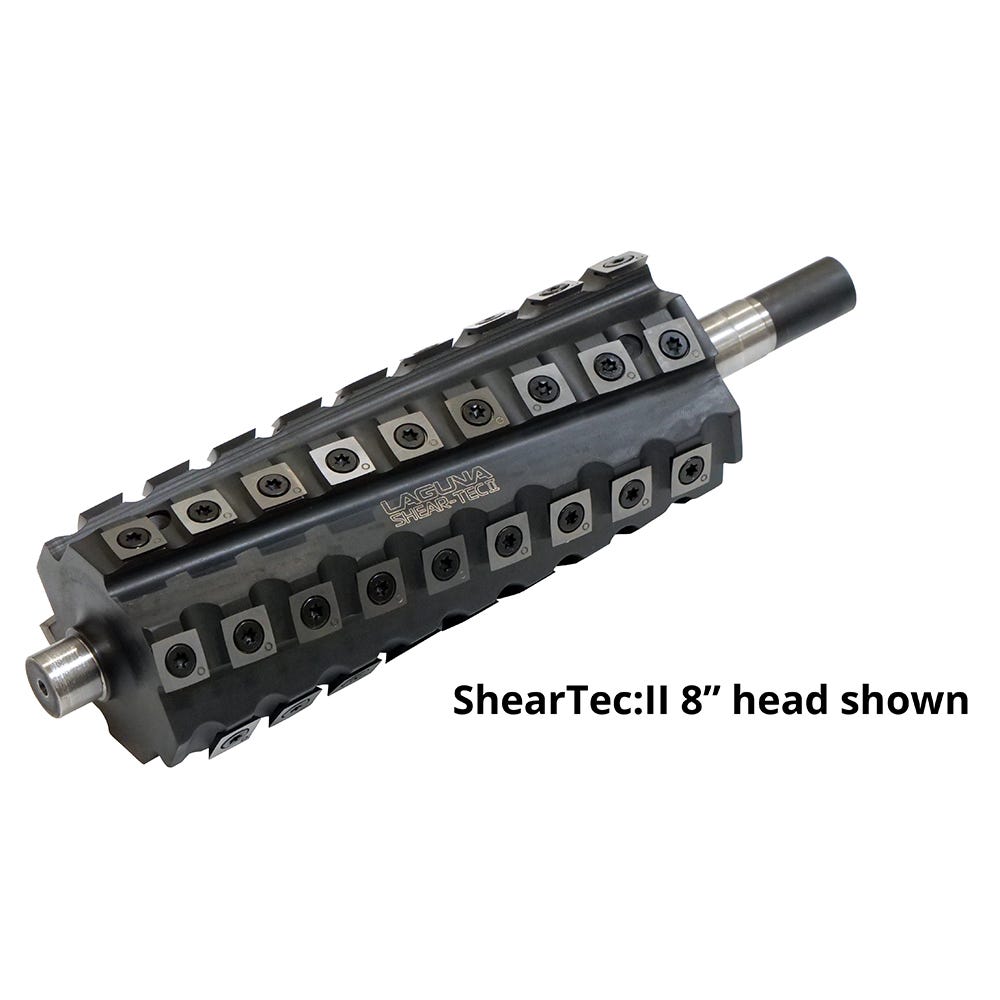

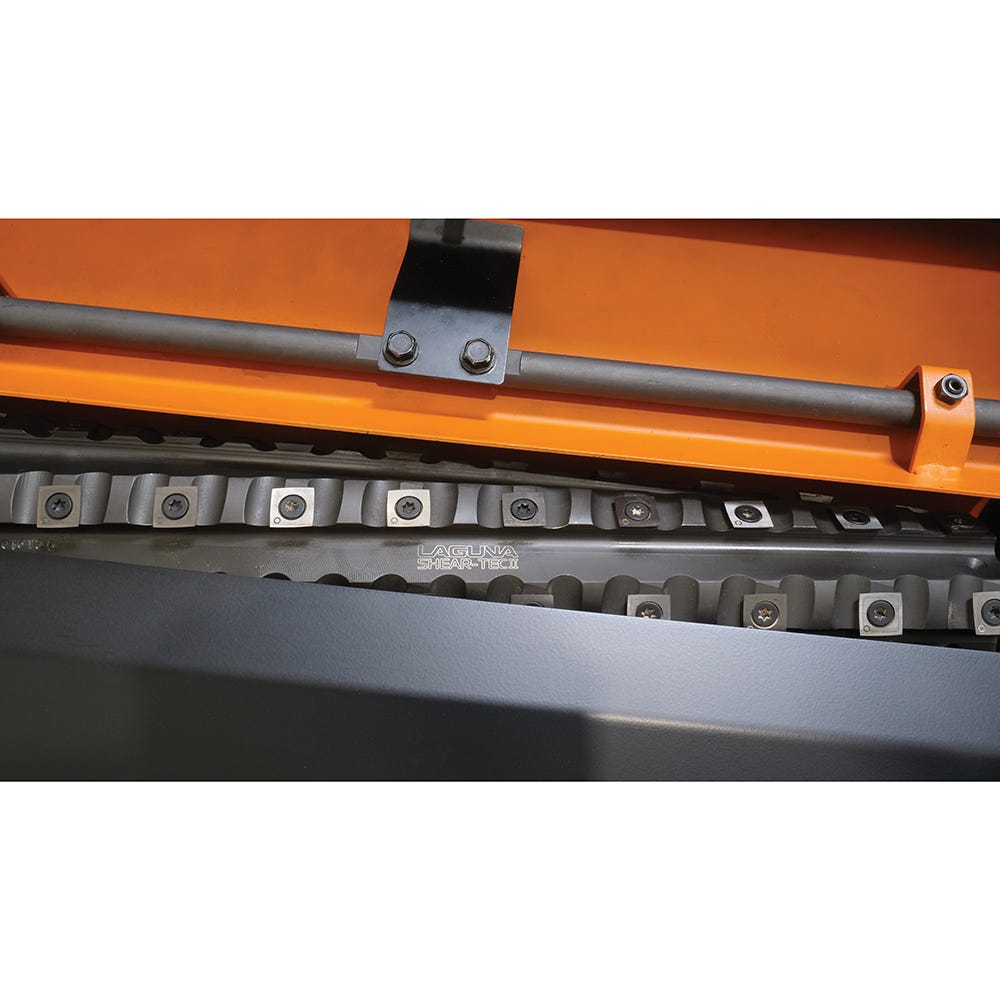

  • ShearTecII cutterhead features 4-sided solid carbide inserts with a T-shoulder rather than a cone-shaped design, helping to prevent cracking of the inserts
  • Another benefit of the hard T-shoulder versus the cone shape is that you don’t need to worry about the exact pressure the knife is set with—there is no flex in the T-shoulder design
  • Each insert features a slightly crowned leading edge and is set in a spiral pattern for a true shear cut
  • Deep gullets make dust and chips disappear quickly which produces a better finish
  • ShearTecII inserts are 15 x 15 x 2.5mm, which is slightly larger and thicker than standard knives (14 x 14 x 2mm)
  • ShearTecII cutterheads have one more advantage: they are quiet!

(1) Laguna PX|22 ShearTec II 7.5HP 1-Phase 22'' Planer
(4) Leveling feet with hardware
(1) Dust chute

Rockler Protection Plan

With the Rockler Protection Plan you'll get accidental damage coverage immediately upon purchase of your tool. Plus we will extend the manufacturer's warranty for your choice of an additional 1 or 2 years. We'll take care of all parts and labor for any repairs with no deductibles and no hassles. If your tool can not be repaired we'll gladly replace it. Available in the US only. Click here to learn more.

Standard Manufacturer's Warranty: 24 months once registered in the first 30 days

More Information
Brand Laguna
Manufacturer Part Number MPLANPX2275-0130
Weight 955.000000
Tech Spec
  • Brand: Laguna
  • Manufacturer Part Number: MPLANPX2275-0130
  • Motor: 220v 7.5HP 1 Phase 60hz/23 Amp
  • Bed Size: 22'' x 28''
  • Pull-Out Extension: 6''
  • Max. Depth Of Cut: 1/4''
  • Max. Stock Thickness: 8''
  • Min. Stock Thickness: 1/2''
  • Min. Stock Length: 9''
  • Max. Stock Width: 22''
  • Feed Speed: 10 – 30 FPM Variable Speed
  • Dust Port Diameter: 5'' Left Or Right
  • Cutterhead RPM: 5000
  • Cutterhead Diameter: 3-1/2''
  • Cutterhead Insert #: 150 x 4-Sided Carbide, 6 Row
  • Thickness Readout: Wixey DRO
  • Noise (1m away): 83dB
  • Assembled Dimensions Approx. 40'' x 46''
  • Dimensions Shipping: 44'' x 38'' x 48-1/2''
  • Net/Ship Weight: 867/955 lbs.
