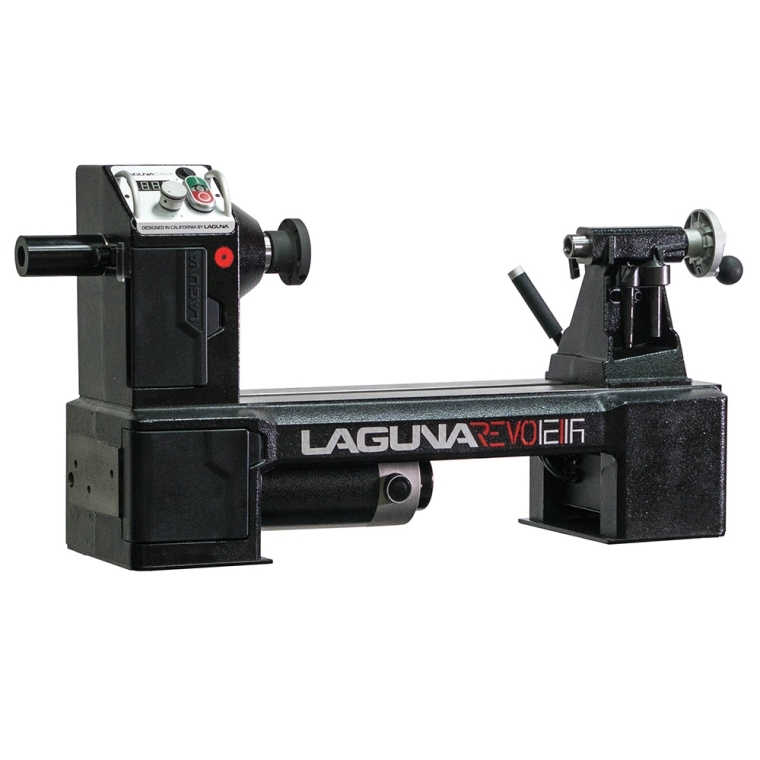

Laguna Revo 12|16 Midi Lathe

Premium features in a space-saving package—an ideal lathe for spindles up to 15-1/2'', and bowls up to 12-1/2''.

Item #
65625
$999.00 Each
Additional Shipping and Handling Charge: $99
Direct Ship

Get Expert Advice

Return Policy

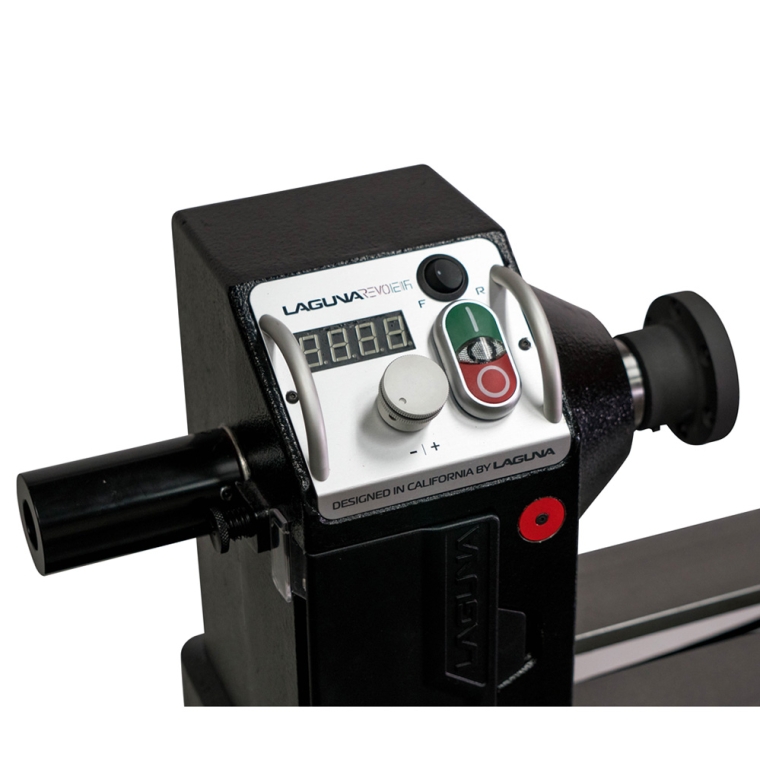

Laguna's REVO 12|16 Midi Lathe bristles with premium features in a space-saving package. A turn of its whisper-quiet speed dial achieves speed adjustments with ease. To shift between the coarse speed ranges, simply open the magnetic belt cover doors, flip the smooth cam-action lever and slide the belt to another set of pulleys. The luxury banjo glides easily up and down the bed and features a nice 45° chamfered edge. Pulse Width Modulation on the powerful 1HP motor ensures consistent torque at any speed, cooler running, longer brush life and 99% efficiency at low speeds. The REVO 12|16 is an ideal fit for a wide variety of spindle turnings up to 15-1/2'' long, and bowl turnings up to 12-1/2'' in diameter (16'' in the outboard mode with the optional Outboard Table, #64320, sold separately).

Features:

  • Easy cam-action belt changes for low, medium and high speeds—just turn the dial to fine-tune within each range
  • Smooth-action sealed ball-bearings are press fit

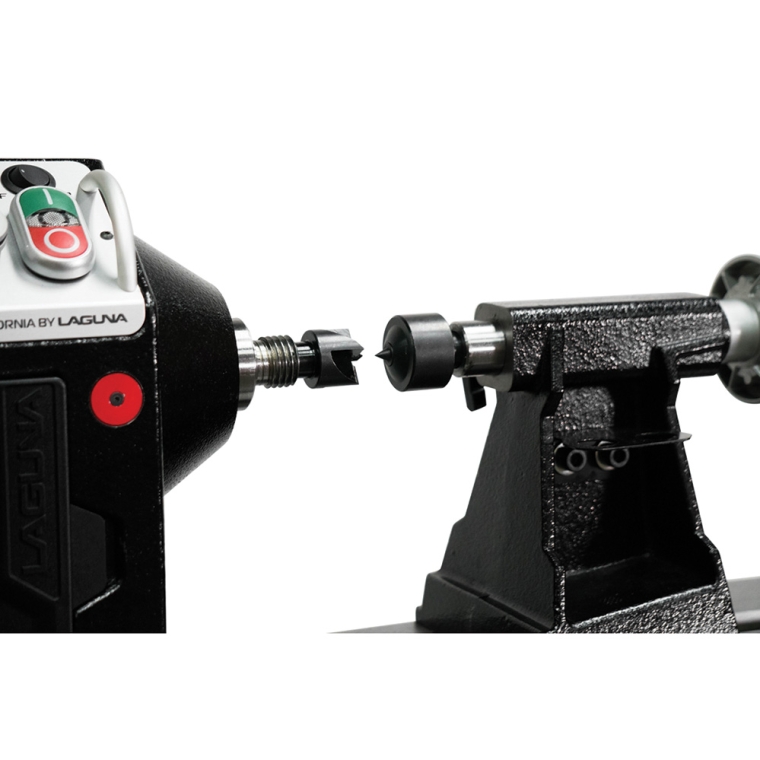

  • Self-ejecting live center—just retract the quill past the casting and the live center pops out
  • 15-1/2'' between centers; 12-1/2'' swing over the bed
  • Easy outboard turning setup with push-button spindle lock
  • Includes face plate, and drive and live centers with MT2 tapers for head and tailstock

(1) Laguna Revo 12|16 Midi Lathe
(1) Face Plate
(1) MT2 Live Center
(1) MT2 Drive Center

Standard Manufacturer's Warranty: 24 months once registered in the first 30 days

More Information
Brand Laguna
Manufacturer Part Number MLAREVO 1216EVS
Weight 125.000000
Tech Spec
  • Brand: Laguna
  • Manufacturer Part Number: MLAREVO 1216EVS
  • Motor: 1 HP DC Permanent Magnet Motor
  • Controller: Pulse Width Modulation (PWM)
  • Electrical Requirements: 110V-1PH-60HZ
  • Recommended Breaker Size: 110V – 15 amp
  • Speed Range High: 650 – 3500 RPM
  • Speed Range Mid: 325 – 1750 RPM
  • Speed Range Low: 50 – 525 RPM
  • Distance Between Centers: 15.5''
  • Swing Over Bed: 12-1/2''
  • Swing Over Banjo: 9-1/2''
  • Max. Outboard Swing: 16''
  • Spindle Bore: 3/8''
  • Spindle Taper: MT2
  • Spindle Thread :1'' x 8 TPI (both ends)
  • Front Bearing: 6006LLU
  • Rear Bearing: 6005LLU
  • Indexing: 24 positions w/ Lock
  • Drive belt: Poly-V Belt 6 Grooves
  • Tail Stock Quill Travel: 2-1/2''
  • Tail Stock Taper: MT2
  • Bed Length: 29.4''
  • Tool Rest Length: 6''
  • Tool Rest Post Diameter: 1''
  • Faceplate Diameter: 3''
  • Certification: CSA C/US 256540
  • Floor to Bed Height: 6.7'' no pads
  • Floor to Spindle Center: 13'' no pads
  • Overall Size: 8.9''W x 29.4''L x 17.4''H
  • Shipping Dimensions: 14.6''W x 35.8''L x 20.5''H
  • Net Weight: 118 lbs
  • Shipping Weight: 125 lbs
