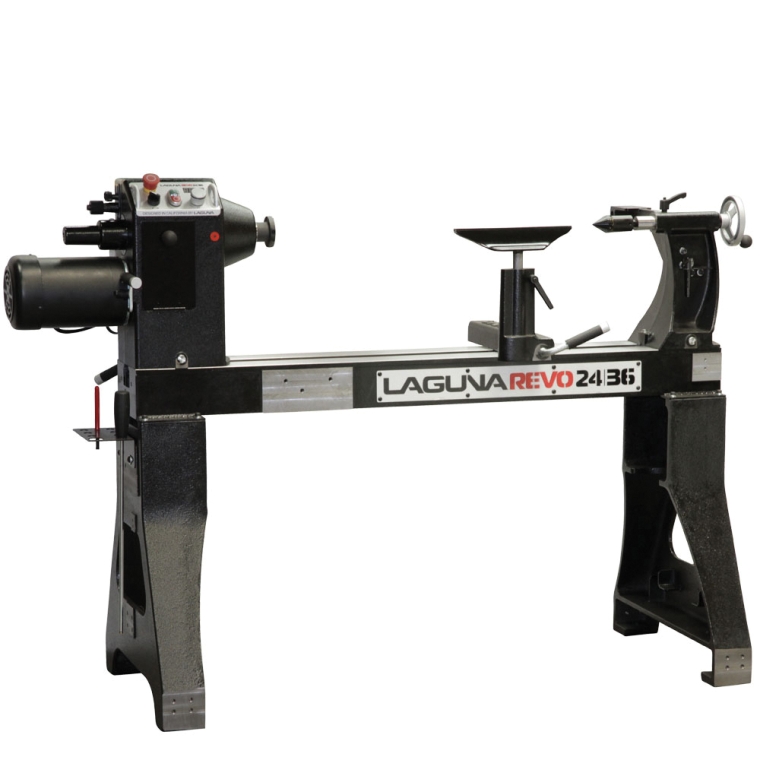

Laguna Revo 24|36 Lathe, 3HP, 220V

Brawn with plenty of brains too—quickly dial in precise settings with the easy-access control panel and digital read-out.
Item #
59470
$3,999.00 Each
Additional Shipping and Handling Charge: $199
Direct Ship

Get Expert Advice

Return Policy

Easily visible in its prominent location, the angled control panel on Laguna's Revo 24|36 Lathe lets you quickly dial in the perfect settings. The bed of the lathe is made from steel, which allows the cast iron headstock to travel incredibly smoothly. A full 36'' between centers and 24'' of swing over the bed offer plenty of capacity for larger work. Electronic variable speed is provided by a VFD that converts 1-phase input to 3-phase output, meaning that even at low settings you get an incredible amount of torque. The DRO gives you an accurate RPM readout at all times, and fine adjustments are made electronically. Changing from high to low settings is made easy by using the quick-release handle. The headstock and tailstock lock handles are situated on the back to eliminate any interruptions to your workflow. Ergonomically designed handles use a cam lock, resulting in a firm feel with no deflection.


Features:

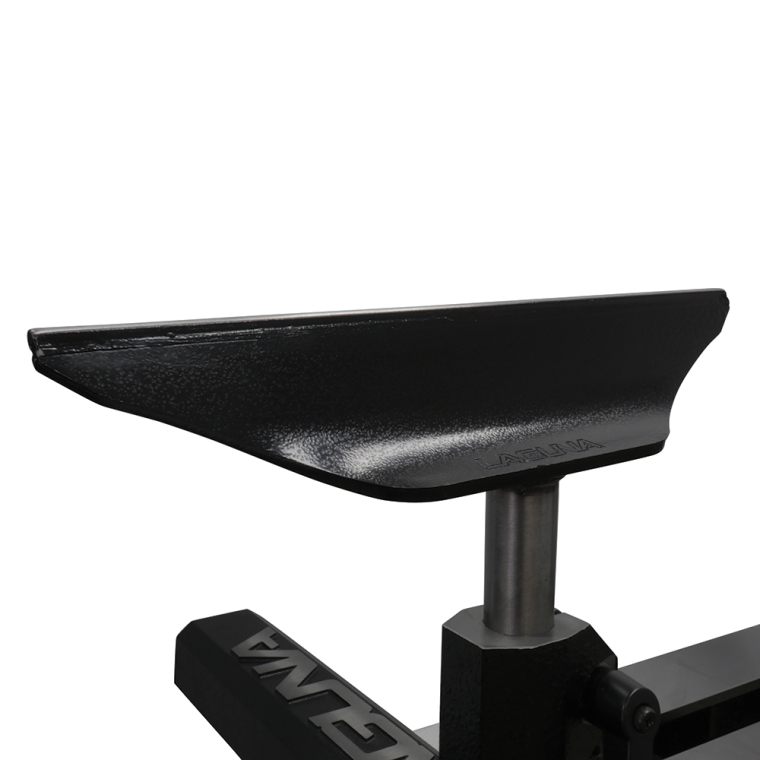

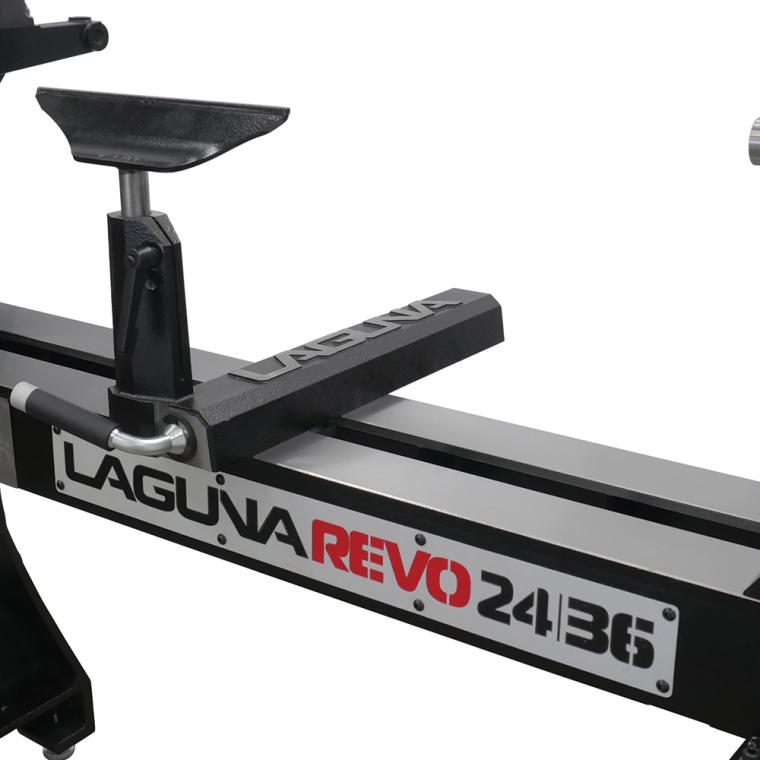

  • Redesigned banjo features more compact design, 45° cutout, wider base, increased eccentric rod diameter and larger hanger for a more solid feel when locking
  • Wall thickness of legs has been increased 80% over the Revo 18|36

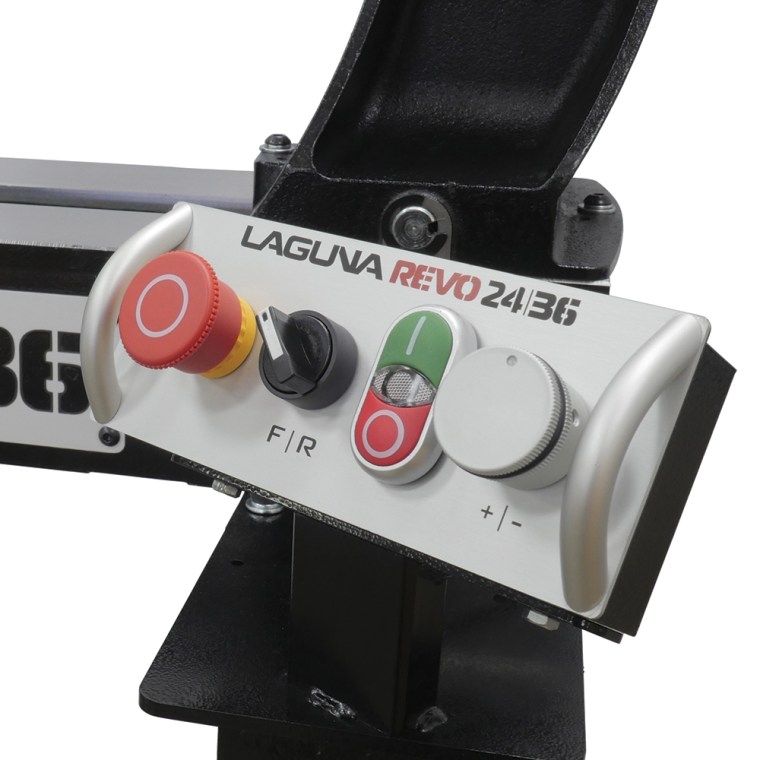

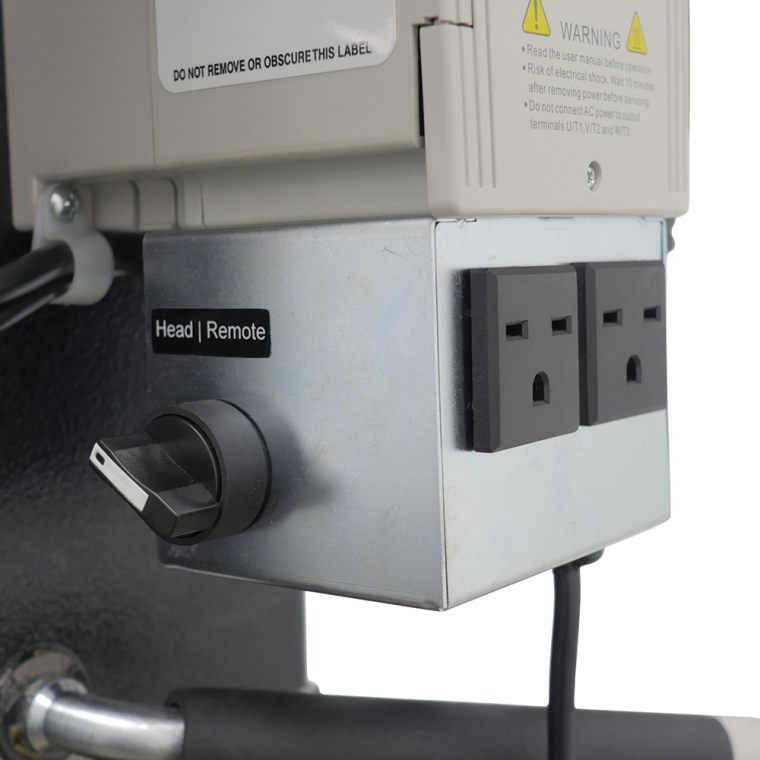

  • Remote control box with speed settings

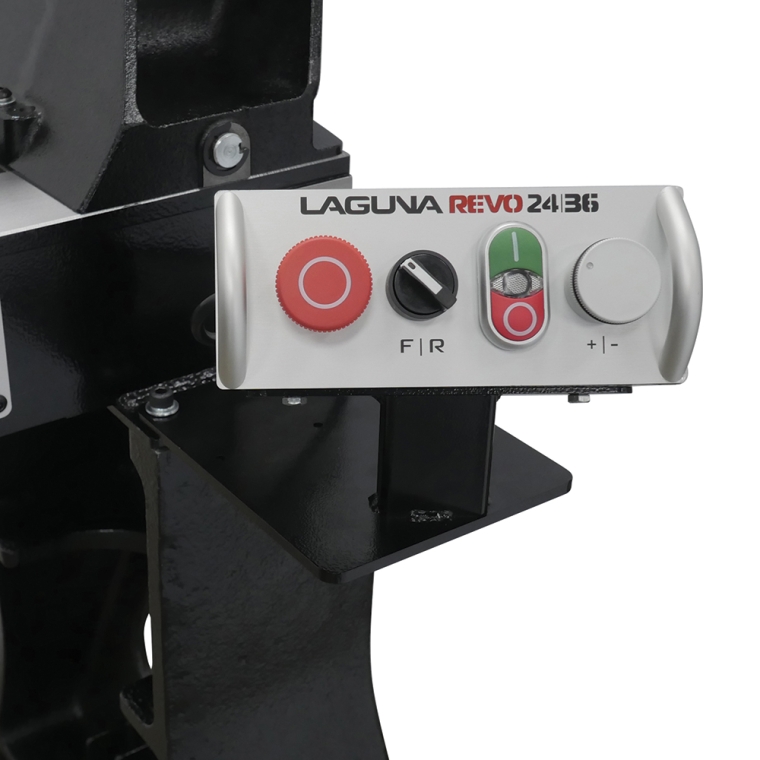

  • Two height settings for the Ergonomic Control Panel
  • Dynamic load rating is 30% higher than a 6207 ball bearing

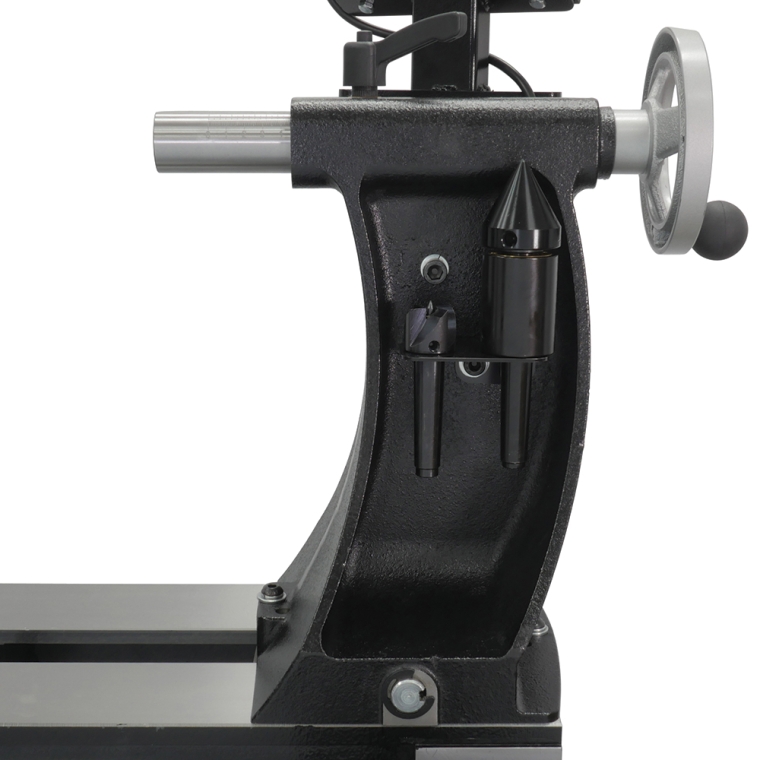

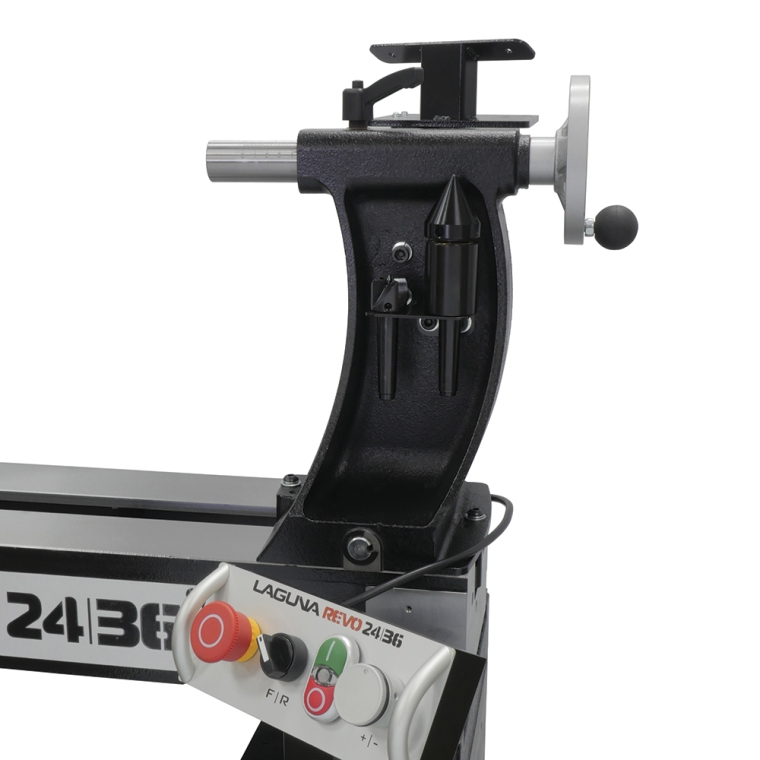

  • Storage for centers in the tailstock

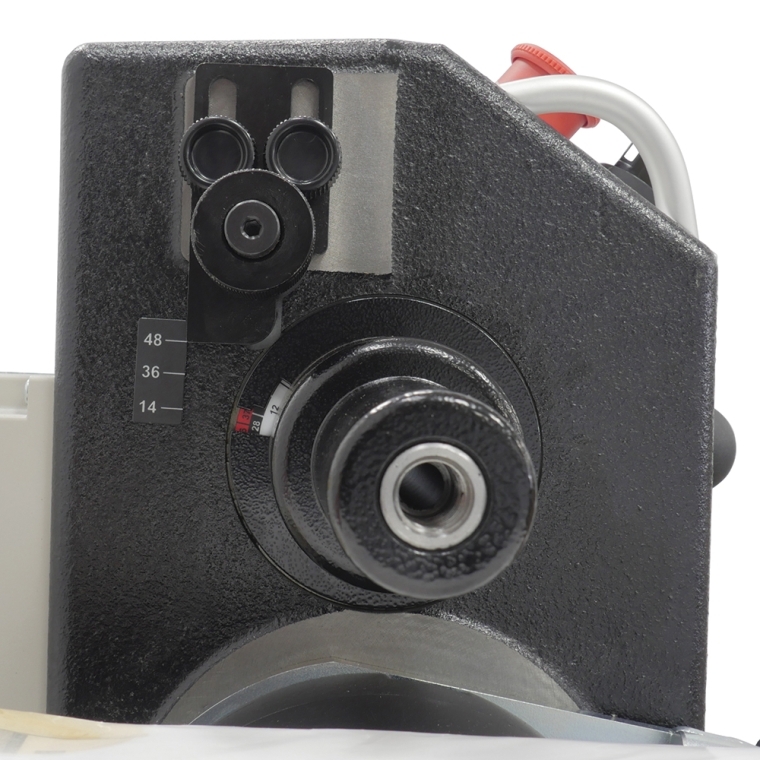

  • Spring-loaded spindle lock

(1) Laguna Revo 24|36 Lathe, 3HP, 220V

Rockler Protection Plan

With the Rockler Protection Plan you'll get accidental damage coverage immediately upon purchase of your tool. Plus we will extend the manufacturer's warranty for your choice of an additional 1 or 2 years. We'll take care of all parts and labor for any repairs with no deductibles and no hassles. If your tool can not be repaired we'll gladly replace it. Available in the US only. Click here to learn more.

Standard Manufacturer's Warranty: 24 months once registered in the first 30 days

More Information
Brand Laguna
Manufacturer Part Number MLAREVO 2436-220
Tech Spec

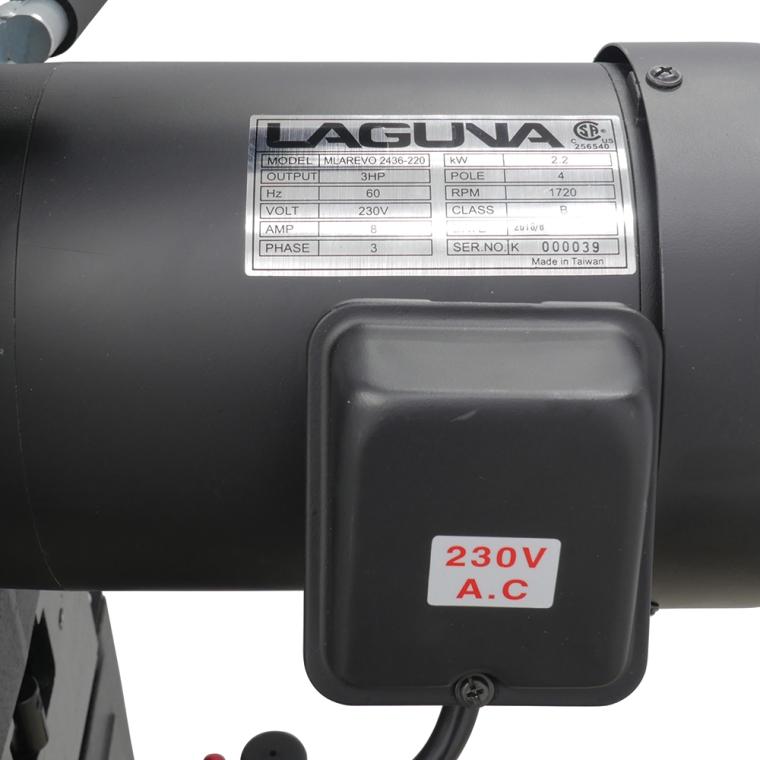

  • Motor: Induction, 1725 RPM, 3HP, 220V, 60Hz
  • Phase: 1-Phase Input, 3-Phase Output
  • Recommended Breaker Size: 15 Amp

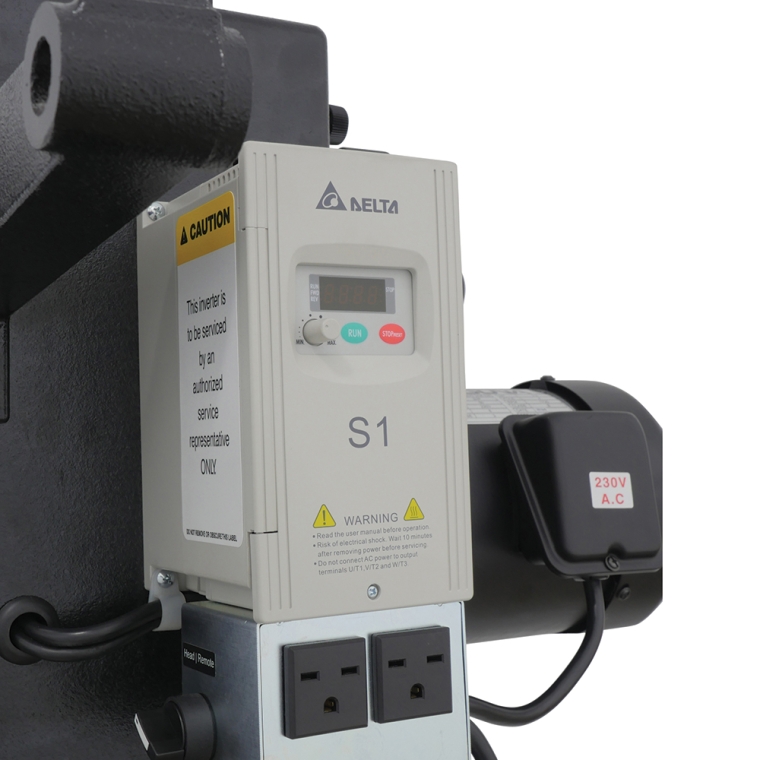

  • VFD: Delta S1 Variable Frequency Drive

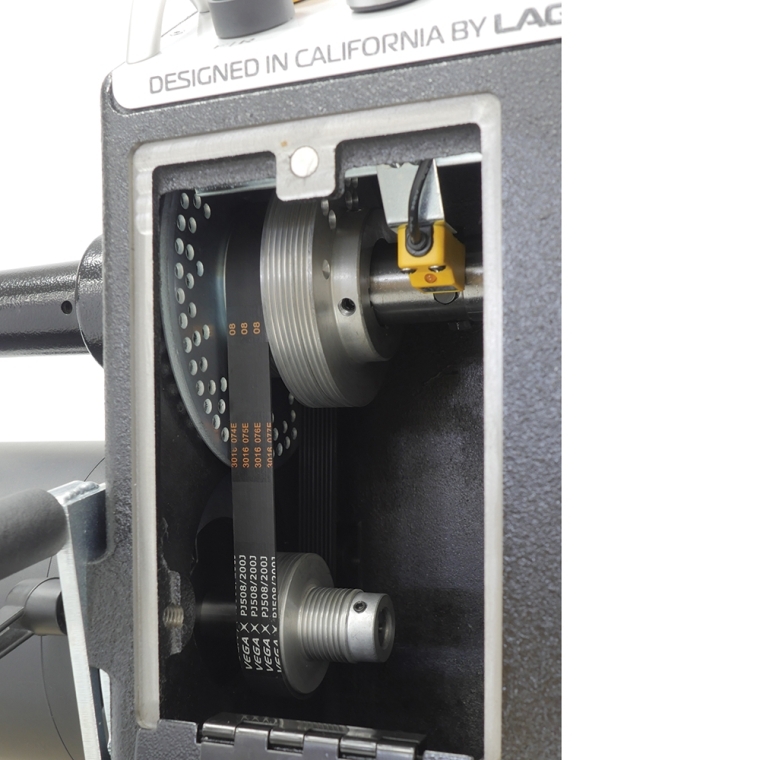

  • Drive Belt: Poly-Groove with EZ Access
  • Tailstock Quill
