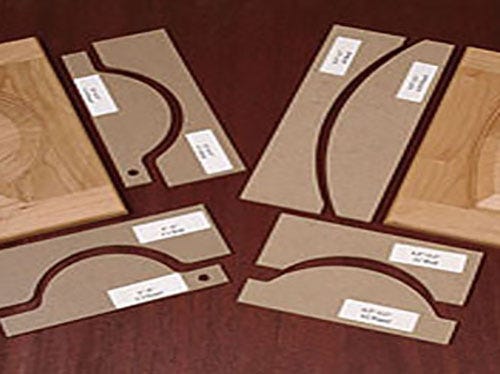

Templates for cutting raised panel doors

We'll go through the steps involved in making an arched-top raised panel door. As you'll see, with the right tools and equipment, the process is actually fairly simple and straightforward.

Woodworkers with intermediate skills and some experience using a router table will have no trouble mastering the techniques in a short time.

Step 1 - Selecting and Preparing the Stock

The first step in making a frame and panel door is to select and prepare the stock. This step is important. The squareness and flatness of the finished door will depend in a large part on the quality of the stock selected. In selecting the stock for our door, we sorted through several pieces of cherry hardwood before selecting a few pieces that appeared flat, free of twists and relatively straight-grained.

It's a good idea to prepare and mill more stock than you are actually planning to use. You'll usually want to do a few test cuts along the way, and there is always the possibility of making a mistake. Weighed against the time it would take to back up and repeat a step after making a mistake, cutting a few extra pieces of stock is worth the added effort.

After selecting the stock, cut the stiles and bottom rail to a width (2-1/4" is fairly common). Next, cut the blank for the arched top rail. You'll want to cut the blank 1/16" wider than its finished width to leave yourself a little room for final trimming.

At this point, you can cut the stiles to a length of 1 or 2 inches longer than their finished size - you'll trim them to their exact length later on. Prepare the stock for the panel at this point also. You may also need to edge glue two or more pieces of stock together to come up with a piece that's both wide enough for the panel and as flat as possible.

Note: If you are planning to trim the edges of the finished door, or finish them with a Custom Door Edge Router Bit, you'll want to add 1/16" or so to the width of the stiles and rails. Remember also that you will be trimming this off when you finish assembling the door. You need to leave the extra width out of your calculations for the length of the rails.

Step 2 - Calculating the Length of the Rails

Once you have the bottom rail and the blank for the top rail cut to width, you can begin preparing for the cope cut by calculating the length of the rails. This can be a little tricky. To determine the length of the rails, you need to subtract the combined width of the two stiles from the overall width of the door, and then add back in the depth of the panel groove (to account for the overlap between the panel groove and the coped end of the rail). Here is a formula for calculating the length of the rails:

Rail =
Door Width
- Width of stiles x 2
+ Panel Groove Depth x 2

Most stile and rail bits (including the Rockler Stile and Rail Bit Set used here) cut a 3/8" deep panel groove. Using the Rockler bit set, for a door to be 18" wide when it's finished, with a 2-1/4" finished stile width, the rail length should be:

Rail Length =
- 4-1/2"
+ 3/4"

Step 3 - Setting the Coping Bit Height

Using plastic set-up jig to prepare router height

With the bottom rail and the blank for the arched top rail cut to length, you're ready to set up to cope the ends of the rails. Setting the coping bit to the correct height is important. The match between the height settings of the stile and rail bits will determine whether the stiles and rails meet flush with one another.

The Rockler Router Bit Set-Up Jig makes setting the bit height easy. The jig has the sticking profile cut at optimum height into one of its sides, and the matching cope cut into the other. You just raise the bit until it fits into the jigs cope profile and the bit is set at the optimum height. When it comes time to cut the sticking profile, simply repeat the procedure using the sticking profile on the other side of the jig.

Step 4 - Cutting the Copes

Using router coping sled to cut cabinet door frame part

Getting a cope cut that's square and as close to perfectly level as possible is crucial. The cut has to be square if the parts of the frame are to fit together correctly, and it needs to be level (consistent in height over the length of the cut) to insure that the door will lay flat and that the stiles and rails will meet flush with one another.

Using featherboards to guide coping sled cut

To make coping the rails easier, and to insure our coping accuracy, we used the Rockler Rail Coping Jig. The jig's backer is set to make a perfectly square cut. The jig is also designed to keep the end of the rail level with the coping bit during the cut. Just butt both the edge of the jig and the end of the rail up against the fence and clamp the rail in against the hardwood backer. The backer (included with the jig) prevents "tearout" that would otherwise happen when the rail exits the cut. When we have one coped, we just flip the rail around and do the other side.

Note: When making the second cope cut on each rail, be sure to turn the rail around end for end - don't flip it over. It is surprisingly easy to forget that both cope cuts have to be made with the same side of the rail facing up.

Step 5 - Cutting the Sticking Profile

Close up view of profile cut in cabinet door frame

Next, set the height of the sticking profile bit - again, we recommend using the Rockler Router Bit Set-Up Jig. For the straight-line profile cuts on the stiles and bottom rail, position the fence so that the profile cut will end up on the very edge of the stock. Use a straightedge to line the stile bit's pilot bearing up with the surface of the fence. Since the sticking profile and groove are cut along the length of the grain, tearout at the end of the cut is not a concern. Just feed the stock at a moderate rate, and make sure that it's kept in firm contact with the fence and the surface of the router table over the entire length of the cut. Once you have the fence set up, run all of the straight edges - the two stiles and the bottom rail. While you're at it, put a profile on a couple of extra pieces. You'll use them in the next step.

Step 6 - Cutting and Milling the Arched Top Rail

Using template to guide arched door top rail

Now you're ready to cut the arch in the top rail. Here's a trick that will make the process safer and much easier: Fit "temporary stiles" (short pieces of stock milled with the sticking profile) into the end of the blank and clamp the three pieces together with a lightweight bar clamp. The purpose of the temporary stiles is to provide a place to start the profile cut.

Skipping this part means that you would have to start the cut on the very tip of the arch and run the risk of the bit catching hold of the corner of the rail, which would at the very least damage the corner or coped end of the rail. Apart from being potentially dangerous, having this happen is an unpleasant surprise that turns a perfectly good arched rail into a piece of scrap. The temporary stiles also protect the fragile end of the arch from breaking off when you exit the sticking profile cut.

To make the sticking cut in the arched top rail, attach the pattern to the blank with double-sided tape. The template will guide the router bit's pilot bearing, so you want to make sure that it's secure and won't slip during the cut.

Note: With the temporary stiles clamped securely in place, and the pattern attached securely to the top of the rail, cutting the top rail sticking profile is usually a smooth procedure, but also requires extra care. Starting a router cut in the middle of an edge can cause the bit to climb (pull the stock in the opposite direction from the intended cut direction). Be sure to ease into the cut slowly, hold on to the rail/temporary stile firmly, and keep your fingers well away from the path of the bit. If you have limited experience using a router and router table, making a few test cuts on a piece of scrap to get the feel of the procedure would be a good idea.

Step 7 - Cutting the Panel to Width

The first question to ask yourself when figuring the width of a solid wood panel is "how's the weather?" In other words, you'll need to factor in how the humidity level in your shop while you are making the panel is affecting the stock. If you are working in a northern climate in the dead of winter in an un-humidified shop, the wood you are about to make into a panel is probably about as dry as it's likely to get. In that case, you'll need to reduce the width of the panel by 1/8" for every 12" of width to allow for expansion when the humidity is high. The width of a fully moisture-expanded panel should still be 1/16" less than the length of the door's rails to provide a little assembly clearance.

The formula for the width of a door panel is:

Panel Width =
Rail Length (from tip to tip)
- Expansion Allowance
- 1/16" Assembly Clearance

It was a sultry summer day when we cut the parts for our door, so we assumed that our stock was about as loaded up with moisture as it was likely to get. We just subtracted 1/16" from the total length of our rails to find the width of the panel.

Step 8 - Cutting the Panel to Height

Routing top of arched door panel using template guide

Since wood expands far more across the grain than lengthwise along the grain, the height of the panel can be made just 1/16' smaller (for assembly clearance) than the actual dimension of the available space inside the panel groove. If you are making an arched top door, the width of the top rail, of course, varies. Using the width of the rail at its narrowest point (midpoint between the two ends) will allow you to determine the height of the panel at its tallest point:

Panel Height =
Door Height
- Top Rail Width (at the center)
- Bottom Rail Width
- 1/16" Assembly Clearance
+ Panel Groove Depth x 2

When you've calculated the height of the panel at its tallest point, and the panel blank is cut to its finished width, you are ready to mark and cut the curved top of the panel. Use the panel template to mark off the shape of the arched top of the panel. Be sure that the template is square with the edge of the panel, and that it's placed so that you'll end up - after rough-cutting the arch - with a piece that's 1/4' or so longer than the finished panel height you've calculated.

When rough-cutting the panel, keep the band saw's blade well on the scrap side of the line - you'll use the line again when you attach the template to the panel in order to trim it smooth with a flush trim router bit. When you have the arch trimmed smooth, simply measure down the panel along the center line from top to bottom to mark off the panel height you've calculated. Crosscut off the excess to finish sizing the panel.

Step 9 - Cutting the Panel Profile

Close-up side view of cabinet door panel cove profile

With the panel cut to size, you're ready to profile the panel with a raised panel router bit. Having decided on a cove profile for the edge of the panel, we cut our panel profile with a cove profile horizontal panel raising bit. The bit we used was equipped with a "back cutter," meaning that it makes a cut in the back of the panel as well as the front. There are two advantages to using this type of bit: Simply raising and lowering the height of the bit allows you to quickly and easily place the raised field of the panel anywhere you'd like in relation to the front surface of the frame. The back cutter also insures that the panel edge will be exactly the right thickness to fit snugly into the panel groove.

We decided to have the surface of our panel protrude up past the surface of the frame by as much as possible, but we set the bit height so that the back cutter would take off 1/32" of material to insure that the edge of the panel would be exactly the right thickness for the panel groove.

Applying glue to interior groove of panel frame

To cut the panel profile, set the raised panel bit at the desired height and use the bit's pilot bearing to carefully guide the curved top of the panel through the cut. Be sure to grip the panel firmly and keep it pressed tight against the surface of the router table at all times. Then, for a little added support while cutting the straight sides of the panel, set the fence in line with the panel bit's pilot bearing as you did with the sticking profile bit in. Use the fence as a guide while you cut the straight sides of the panel, beginning with the bottom edge.

Step 10 - Assembly

Gluing and clamping final frame and panel door parts

Assembling the door is a fairly straightforward process, but there are a few thing to watch out for. Most importantly, the surface you're working on when gluing-up the door should be as close to perfectly flat as possible. Here, we used the Jet Parallel Clamps, along with Rockler Parallel Clamp Blocks, which, when used together, keep parts flat and square during glue-ups. We recommend cutting the stiles to their exact finished length (plus any extra width you've added to the rails for trimming) before assembly. That allows you to take advantage of the clamp block system. The blocks make it possible to arrange clamps for four-sided clamping, and allowed us to use the length-wise clamps to align the top and bottom ends of the stiles with the top and bottom edges of the rails.

It's a good idea to "dry-fit" the parts before applying the glue, just to make sure that everything fits together correctly, and that you have the procedure down. When you're satisfied with the fit of all of the door's parts, apply a judicious amount of glue to the ends of the rails and assemble the door. Gently clamp the parts together (you don't need a lot of clamping pressure - just look for a tight fit between the stiles and rails). It is extremely important to press the door down flat against the surface of the clamps while tightening them down. When the clamps are tightened, check the door for flatness with a straightedge or level. If the door is out of flat, loosen the clamps, press the door down flat against them and re-tighten them.

Finally, wipe off any excess glue and check the squareness of the door by measuring diagonally cross-corners in both directions. If the rails have been cut and coped square, the door should clamp up square almost "automatically." But it's a good idea to check anyway. If the cross-corner measurements don't match, the door is out of square. Loosen the clamps slightly and apply a clamp across the two corners that have the longest corner-to-corner measurement. Slowly tighten the diagonal clamp while monitoring the opposite corner-to-corner measurement. When the difference between the two measurements is equalized, re-tighten the clamps and check again for flatness.

Follow the glue manufacturer's instructions for clamping time. After unclamping the door, trim the edges of the door as needed, or finish them with a Custom Door Edge Router Bit. In most cases, you'll just need to give the door a light sanding before finishing with a quality wood finish.
