$3,699.99 Each
Direct Ship
All the features so popular on the 3520B lathe, but with a smaller, more compact footprint.

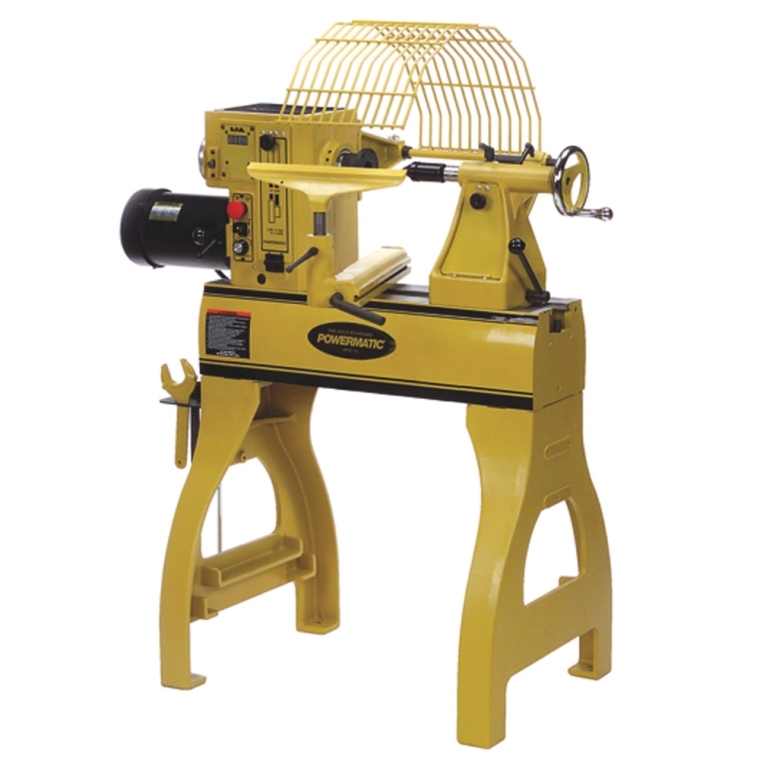

Powermatic PM2020 Short Bed Lathe 2HP 1 or 3PH 220V

Item #
51437
Powermatic PM2020 Short Bed Lathe 2HP 1 or 3PH 220V
Powermatic PM2020 Short Bed Lathe 2HP 1 or 3PH 220V

The PM2020 lathe is perfect for turners short on space, or for those who specialize in bowls, platters and shorter spindle turnings. It features the same 20'' swing over the bed as the 3520B, but just 20'' between centers. Like its big brother, the PM2020 features a 2HP TEFC motor, sliding headstock, electronic variable speed with low- and high-speed ranges, and the spindle lock. Enhanced features include a digital RPM readout, built-in spindle indexing on the head stock, and a redesigned tailstock with internal storage, chrome trimmed handwheels, and a laser-etched quill that is self-ejecting. In addition, the PM2020 features a two-position mount for the optional bed extension, a sliding hammer knockout rod with a brass tip, an attached tool caddy and a metal shelf for tool storage.


Features:
  • Sliding headstock with electronic variable speed and digital RPM readout for accurate speed adjustments
  • Spindle lock and built-in spindle indexing on the headstock for drilling hole patterns, routing flutes, and other regularly spaced features
  • Redesigned tool rest geometry allows for better chisel movement along the tool rest
  • Laser-etched quill is self-ejecting
  • Brass-tipped knockout bar concentrates the action in the sliding handle; the brass tip will not damage drive centers
  • Attached tool caddy allows convenient access to centers, wrenches, etc
  • Tailstock has internal storage for additional accessories
  • Chrome-trimmed ergonomic handwheels provide a comfortable feel
  • Ships directly from the manufacturer.
  • Must be shipped within 48 Contiguous United States.
  • Estimated Delivery time: 7-14 days.
  • The carrier will need to know if delivery is to a residential address. There is no charge for this.
  • The delivery truck will need a lift gate if loading dock is not available. There is no charge for this.
  • 15% restocking fee on all returned merchandise.
  • Please call customer service before returning product.
(1) Powermatic PM2020 2HP Short Bed Lathe
(1) Safety shield
(1) 3'' face plate and face plate wrench
(1) 14'' tool rest
(1) Multiple ball-bearing live center
(1) Brass tipped knockout rod
More Information
Brand Powermatic
Weight 0.0000
Tech Spec
  • HP: 2
  • Swing Over Bed: 20''
  • Swing Over Tool Rest Base: 17''
  • Distance Between Centers: 20''
  • Headstock Movement: Full Length of Bed
  • Spindle Taper: MT2
  • Ram Travel Quill Travel: 4-1/2''
  • Spindle Threads: 1-1/4'' x 8 TPI
  • Spindle Speeds: High 125-3200; Low 50-1200 RPM
  • Speed Range: 50-3200 RPM
  • Number of Indexing Positions: 48
Technical Documents
There are no reviews for this item. Write Review
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 3 questions Browse 3 questions and 2 answers
does the optional extended bed position itself by extending the bed so if you wanted to turn a spindle longer than 20" you could do so on this lathe - PM2020, powermatic
ralph on Feb 15, 2016
Are the legs (stand) included?
Audrey D on Jun 14, 2015
BEST ANSWER: Yes
What is the total distance left to right of this lathe?
Joe G on Apr 16, 2015
BEST ANSWER: Over all, including the motor, the length is 56" long. This according to Powermatic tech person.
