$2,999.99
Direct Ship

Powermatic® 20'' Planer 5HP 3PH

Item #
711731
Powermatic® 20'' Planer 5HP 3PH
Powermatic® 20'' Planer 5HP 3PH

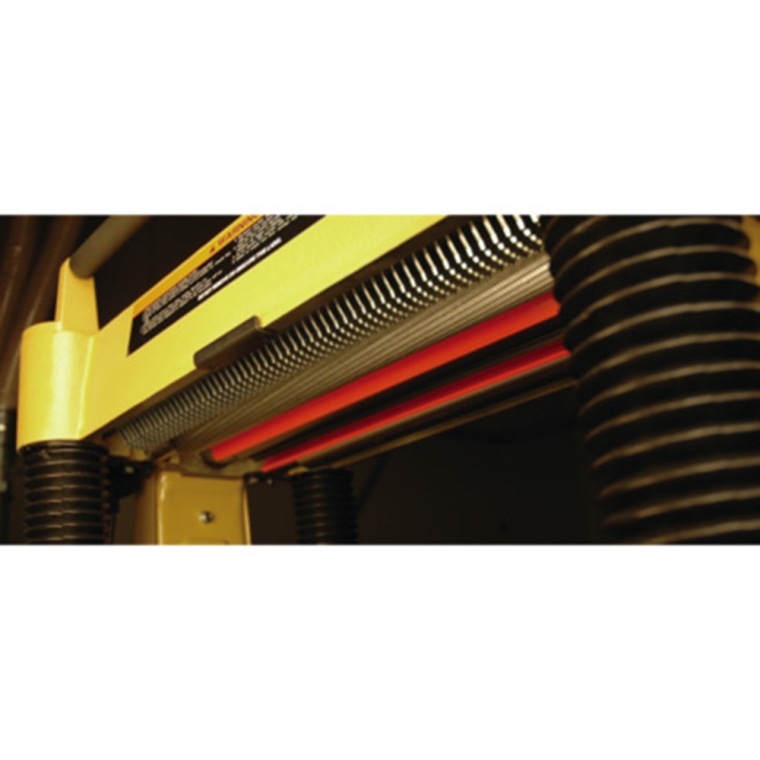

This heavy duty planer offers performance and value, loaded with standard features not found on other machines in its class. The powerful 5HP motor and 20" planing capacity will handle the most demanding work. The 5" dust port connects easily to any dust collector. The cutterhead has four high speed steel knives and turns at 5,000 RPM producing 20,000 cuts per minute. The anti-kickback fingers and pressure bar are located in close proximity to the cutterhead for an exceptional finish. The solid cast iron base, table and head are designed for production. The 2-speed oil bath gearbox transmits full power to feed rollers and facilitates fast speed changes at 24 and 31 FPM. The gearbox can be changed to 4-speed with the included gear to run lower speeds of 16 and 20 FPM. The corrugated infeed and fine groove outfeed rollers ensure a smooth feed. The precision ground and polished cast iron table rides on four steel columns giving it plenty of support for the larger workpiece. Heavy cast iron extension wings ensure a flat, smooth cut.


Features:

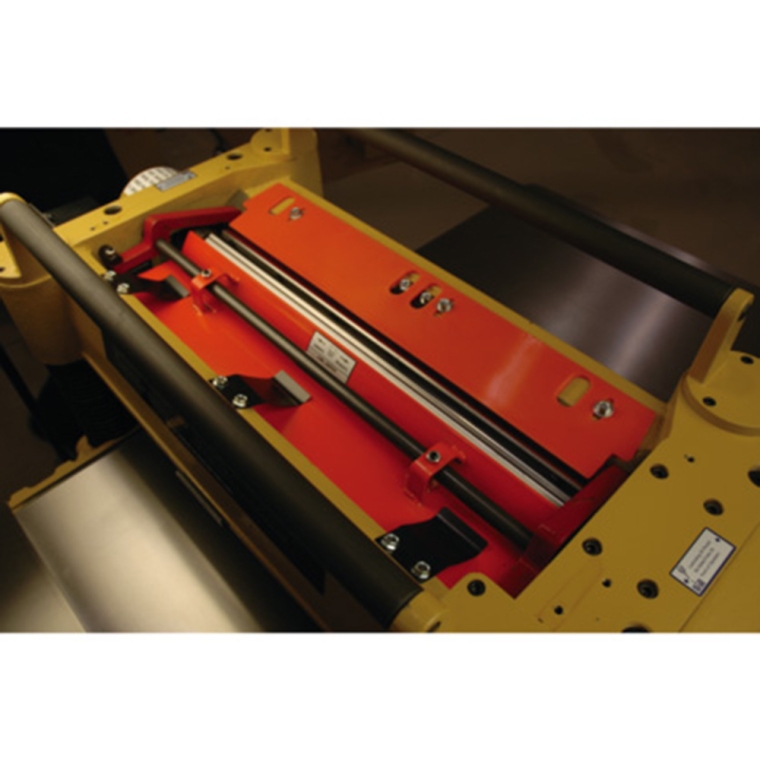

  • Knife setting gauge
  • 5HP motor and 20" planing capacity for heavy duty work
  • Fully enclosed base cabinet with integrated casters for shop mobility
  • Cast iron table with extensions creates a big 55-1/2" x 20" working area
  • Four feed speeds - 24 and 31 FPM, 16 and 20 FPM with gear change - provide versatility
  • Feed rollers and cutterhead supported by full cast iron head assembly for rigidity
  • Ships directly from the manufacturer.
  • Must be shipped within 48 Contiguous United States.
  • Estimated Delivery time: 15 business days.
  • The carrier will need to know if delivery is to a residential address. There is no charge for this.
  • The delivery truck will need a lift gate if loading dock is not available. There is no charge for this.
  • 15% restocking fee on all returned merchandise.
  • Please call customer service before returning product.
(1) Powermatic® 20'' Planer 5HP 3PH
(4) Single-Sided Knives
More Information
Brand Powermatic
Manufacturer Part Number 1791297
Weight No
Tech Spec
  • Model Number: 209
  • Brand: Powermatic
  • Height: 41.375"
  • Width: 36.625"
  • Length: 26"
  • Net Weight: 770 lbs.
  • Maximum Planing: 20"
  • Maximum Planing Thickness: 8"
  • Maximum Depth of Cut: 3/32"
  • Minimum Planing Length: 6-3/4"
  • Cutterhead Diameter: 3-3/16"
  • Cutterhead Speed: 5000 RPM
  • Cuts Per Minute: 20000
  • Feed Rate: 24 and 31 FPM
  • Number of Knives: 4
  • Dust Port Outside Diameter: 5"
  • Dust Collection Minimum: 900 cu.ft/min
  • CFM Required:
  • Blade Size: 20" x 1" x 1/8"
  • Readout Scale: inch/metric

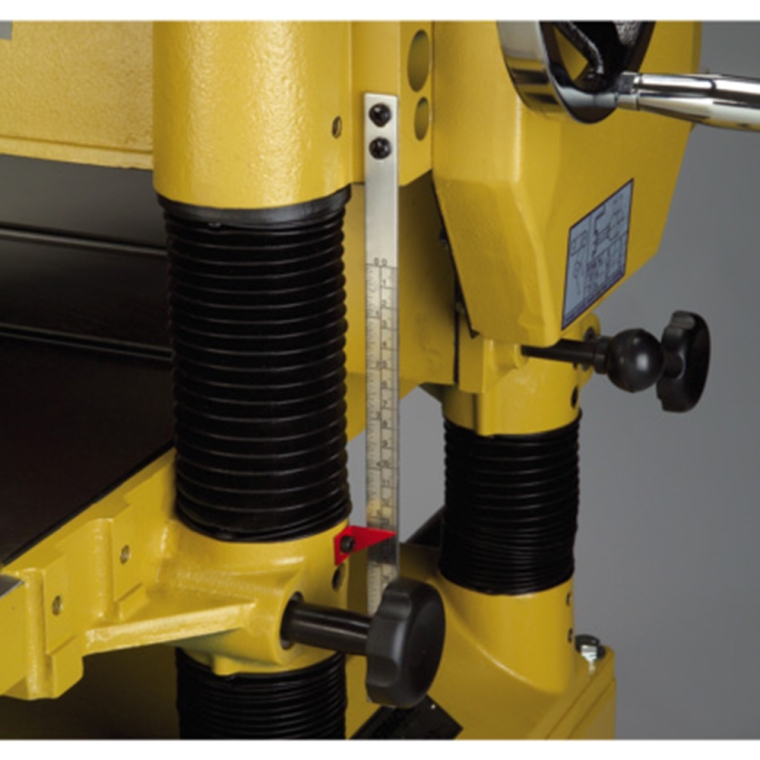

  • Table Support: 4 column
  • Number of Speeds: 4
  • Motor Power: 5 HP
  • Motor Phase: 3 Ph
  • Motor Voltage: 230 V
  • Prewired Voltage: 230 V
Tech Docs
Planer Blade Size 20"
Planer Cutter Head Speed 4500 RPM
HP 3 HP
Dust Collection 5" Port
Maximum Depth of Cut 1/4"
Number of Knives 4
