Rockler HPL Router Table with Fence and Basic Stand

Budget-friendly package bundles a high-pressure laminate top with our standard fence and stand—choose a lift or plate to complete your package.

Item #
BDL7886

As low as $389.99

In stock
$389.99   Rockler HPL Router Table with Fence and Basic Stand
$0.00   Free $50 Gift Card

$389.99

Summary

    Get Expert Advice

    Return Policy

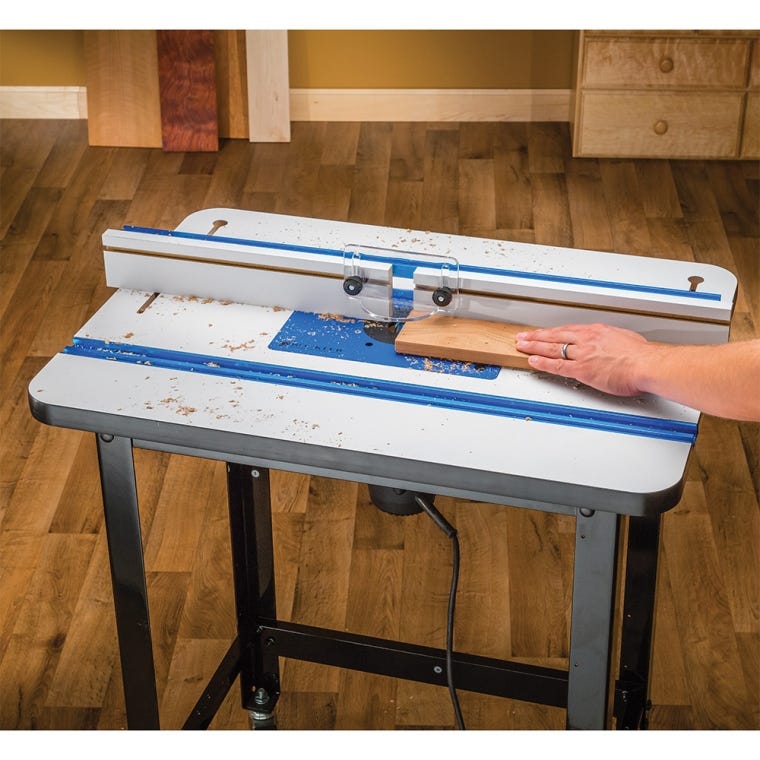

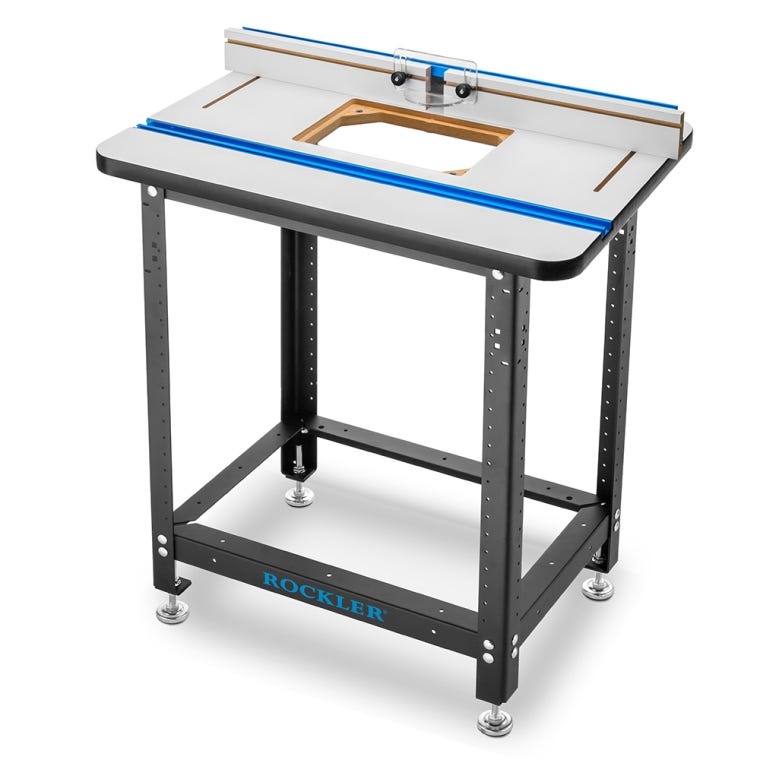

    This package combines our High Pressure Laminate Router Table with our basic fence and open steel stand. To complete your order, choose a lift or plate (see below). Our HPL tables feature dual-track miter slots in the table, and a whiter, brighter finish for improved visibility. The 3/4'' T-profile miter slot allows you to use precision aftermarket miter gauges, while universal T-tracks in both the fence and table accept stops, hold-downs, featherboards and more. The included fence features two adjustable white melamine MDF faces, accessory T-tracks and an included bit guard.

    Features:

    • Top is 1-1/8'' thick MDF sandwiched between high pressure laminates for smooth low-friction routing
    • Tool-free knobs for easy fence adjustment
    • Includes bit safety guard to help keep fingers away from the cutting area
    • Extruded aluminum fence backer for straight, accurate cuts
    • Adjustable opening in fence for large or small router bits
    • Steel stand has adjustable feet for stability on uneven floors, and pre-drilled holes for adding a shelf and sides

    TO COMPLETE YOUR PACKAGE, ADD A LIFT OR A PLATE.

    Two lifts are available—both include their own plate:

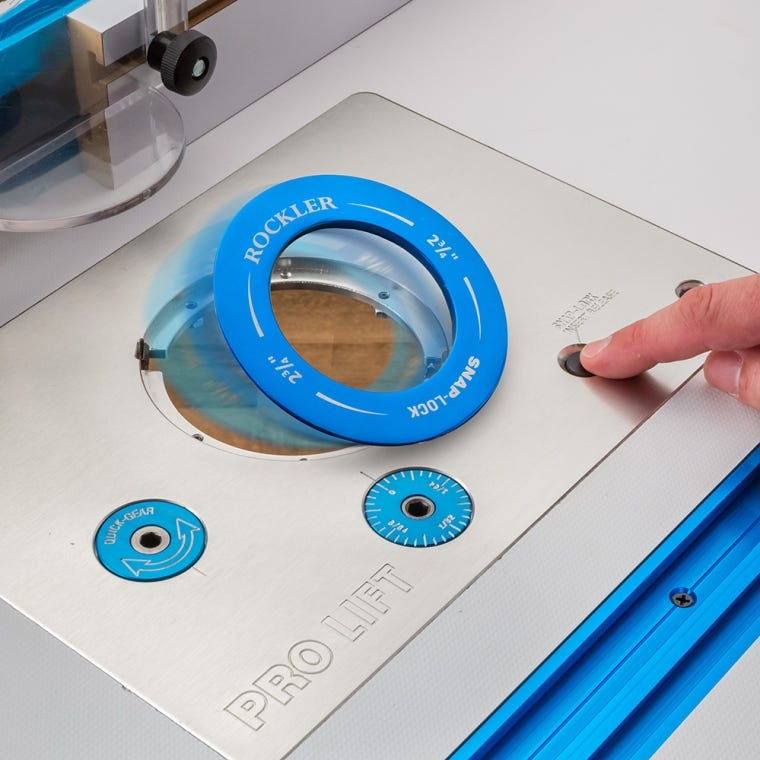

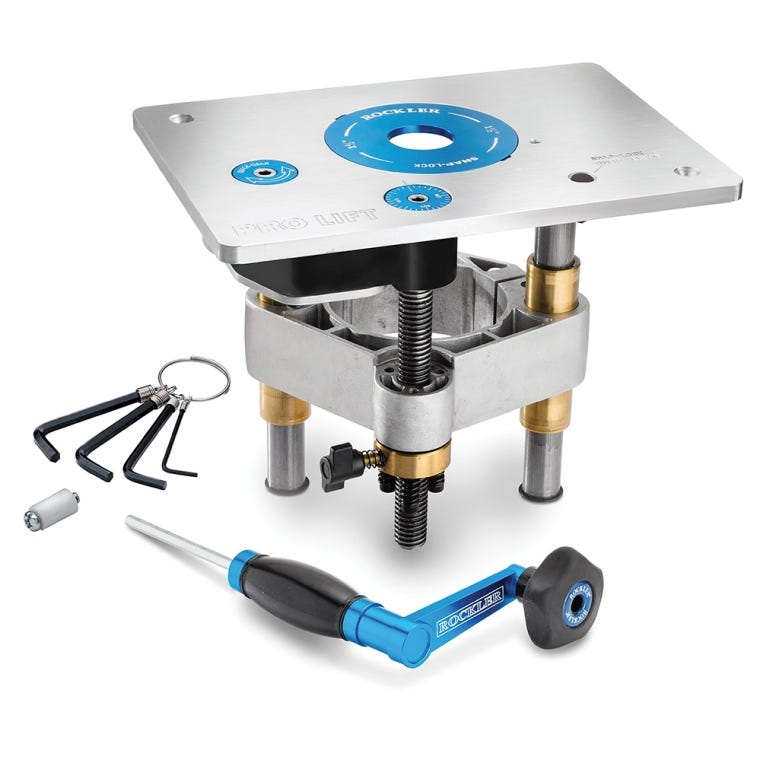

    • The Pro Lift, which accepts large router motors up to 4.2'' in diameter (optional reducers available), and features 2-speed Quick-Gear lifting action, Snap-Lock insert rings and a 3/8'' aluminum plate.

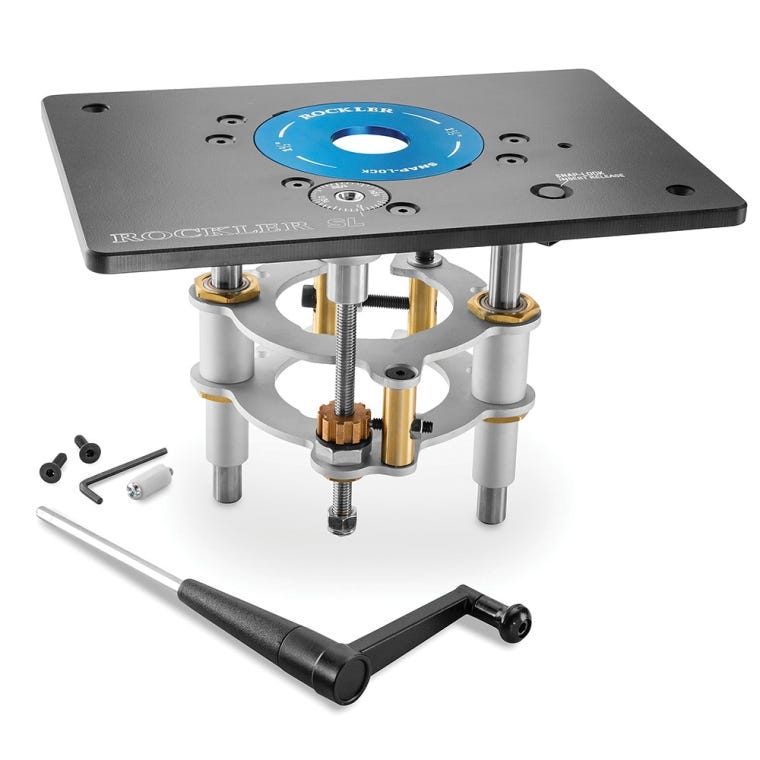

    • The SL Lift, which accepts mid-sized 3-1/2'' router motors, and features Snap-Lock insert rings and a 3/8'' phenolic plate.

    If you DON'T need a lift, plates are available in two materials:

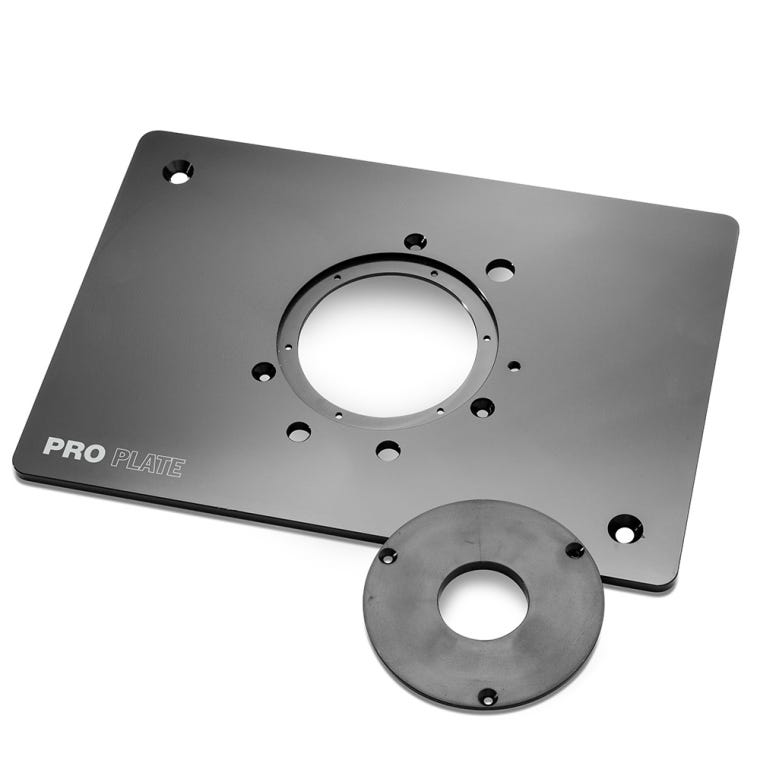

    • Aluminum Pro Plates, 1/4'' thick, for the ultimate in flatness and stability

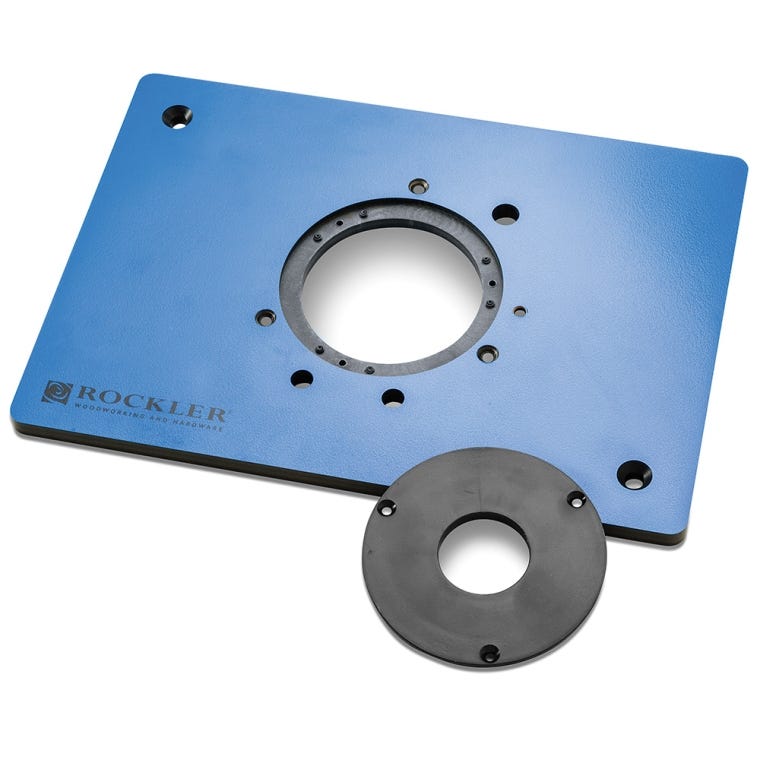

    • Phenolic Plates, 3/8'' thick, for low cost and low friction
    • All plates measure 8-1/4'' x 11-3/4'' and include a pattern routing pin and a 1-1/2'' ID insert ring. Additional insert ring sizes are available separately. Plates A & B accept Standard-sized (4'') rings. Plates C & D accept Large-sized (4-3/8'') rings.

    To choose a pre-drilled plate, find your router below. Note that you may have to drill for the height adjustment rod on your router, if it has one. We are not able to pre-drill for all possible rod locations, since that would compromise the stiffness of the plates.

    If your router is not listed, or you prefer less holes in the plate, choose from two non-drilled plates: one with a 4'' insert ring, and the other a 4-3/8'' insert ring, and drill the plate to fit your router.

    Router Plate A:

    • Bosch MRC23 Series, 1617-1618
    • DeWalt 616-618
    • Hitachi M12VC (fixed and kit)
    • Makita 1100
    • Milwaukee 5615-5624
    • Porter-Cable 690
    • Porter-Cable 890
    • Porter-Cable 7529
    • Porter-Cable 97529
    • Porter-Cable 8529
    • Ridgid 2930 Combo Kit

    Note: Current models of the Porter-Cable 892 require at least two screws to be 1/2" long versus 5/8".

    Router Plate B:

    • Craftsman Standard
    • DeWalt DW621
    • DeWalt DW621K
    • Freud FT 1700E
    • Freud 1702VCEK
    • Skil RT1322-00
    • Skil RT1323-00

    Router Plate C:

    • Milwaukee 5625-20
    • Porter-Cable 7518
    • Porter-Cable 7519
    • Porter-Cable 7538
    • Porter-Cable 7539
    • Triton TRA001
    • Triton MOF001

    Router Plate D:

    • Bosch 1619-1619EV
    • DeWalt 625
    • Freud FT2000

    Rockler HPL Router Table with Fence and Basic Stand
    (1) Rockler HPL Router Table Top
    (1) Rockler Router Table Fence
    (1) Bit guard
    (1) Steel Stand with leveling feet and hardware

    Insert Plate (sold separately; choose from phenolic or aluminum to fit your router)
    (1) Router Plate
    (1) Insert ring (1-1/2'' ID)
    (1) Pattern routing pin

    Router Lift (sold separately; choose from Pro Lift or SL Lift)
    (1) Router lift
    (1) Router plate (3/8'' thick)
    (1) Insert ring (1-1/2'' I.D.)

    More Information
    Brand Rockler
    Tech Spec
    • Brand: Rockler
    • Manufacturer Part Number: 58215, 48426, 46924
    • Top Dimensions: 24''D x 32''W x 1-1/8'' thick
    • Top Material: MDF with high-pressure laminate top and bottom
    • Compatible Plate Dimensions: 8-1/4'' x 11-3/4''
    • Stand Dimensions: 18''D x 26''W x 32''H
    • Stand Material: Steel
    • Fence Material: Aluminum and MDF
    • Fence Length: 32''
    • Effective Fence Height: 3''
    • Plate Leveling: Yes; 10-point leveling
    • T-Track Compatibility: 5/16'' T-bolts, 1/4'' T-bolts, and 1/4'' Hex bolts
