$399.99 Each
In stock
Use with our Vacuum Clamp Pod Kits (#53418, sold separately) to hold your workpiece firmly in place, with unobstructed access to the edges and top.

Rockler Vacuum Pump Kit

Item #
57519
Rating:
100% of 100
Rockler Vacuum Pump Kit Vacuum Clamping for CNC Woodworking T Track System
Rockler Vacuum Pump Kit

Combined with our Vacuum Clamp Pods (sold separately) the Rockler Vacuum Pump Kit, featuring a Gast vacuum pump, lets you secure your workpiece from the bottom side, with no clamp arms to get in the way. This means you'll get ubobstructed access to the face and edges of your workpiece for sanding, routing and planing. Vacuum clamping systems can work on almost any workpiece with at least one flat face. Ideal for CNC projects, routed signs and plaques, small workpieces, carvings and more. Includes vacuum pump, 9' of hose and seven various brass fittings for connection to your vacuum clamping system.


Features:
  • Includes a Gast vacuum pump, made in the USA
  • Generates suction of 25.5'' of mercury (Hg), enough to connect four Rockler Vacuum Clamp Pods
  • Oil-free operation, rugged construction, and little maintenance required
  • Carrying handle and rubber feet for easy portability and stability
  • Includes power cord, hose and brass fittings for connection to your vacuum clamping system
  • Vacuum Clamp Pods sold separately.

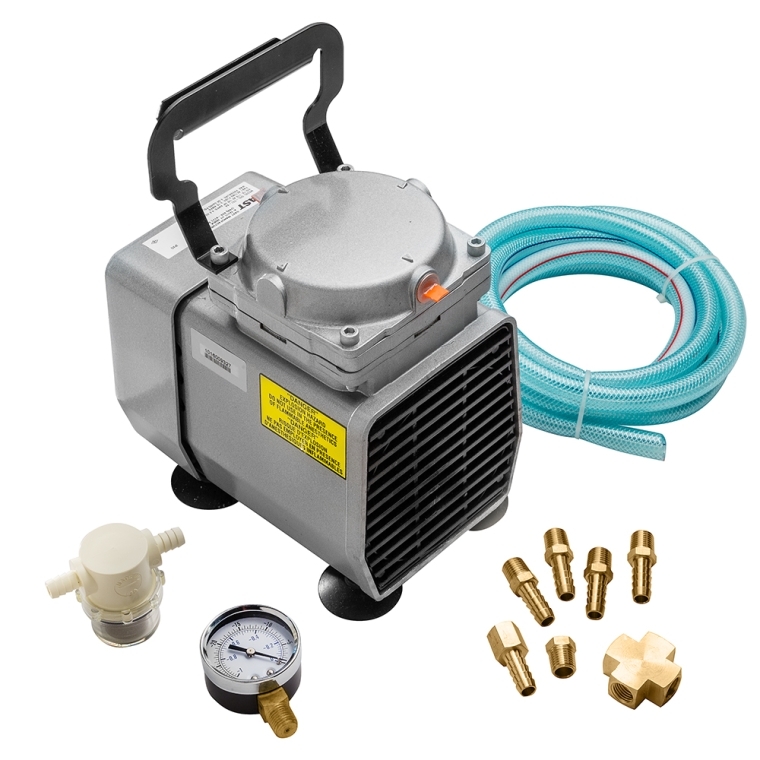

(1) Rockler Vacuum Pump Kit, featuring a Gast vacuum pump
(1) Pressure Gauge
(1) Air Filter
(1) Roll of Vinyl Tubing, 3/8'' I.D. x 1/2'' O.D. x 9' Long
(1) 1/4'' FNPT Crossed Brass Intersection Fitting
(1) 1/4'' MNPT Plug
(1) 1/4'' FNPT to 1/4'' Barbed Fitting
(4) 1/4'' MNPT to 3/8'' Barbed Fittings
More Information
Brand Rockler
Manufacturer Part Number No
Weight 19.6000
Tech Spec
  • Maximum Flow (60 Hz): 1.1 CFM (863.43 m3/h)
  • Maximum Pressure: 60 PSI (4.2 bar)
  • Maximum Vacuum: 25.5 in-Hg (200 mbar)
  • Power Rating: 1/8 HP (0.09 kW)
  • RPM: 1575
Tech Docs
Amps No
Sound Rating No
Volts No
Height No
Length No
Width No
Warranty No
Capacity No
Flow Rate No
Filter Type No
HP No
Prop 65 WarningWARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov

Prop 65 WarningWARNING: Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood.
5.0 / 5.0
1 Review
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
1
0
0
0
0
I really like it
Works great
May 14, 2018
Purchased
5 months ago
Woodworking Experience:
Advanced
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 13 questions Browse 13 questions and 21 answers
Why did you choose this?
Rockler Store
CNC Use
FREDRICK A. M on Jul 5, 2018
For my CNC.
Mike G on Nov 16, 2017
CNC Use
FREDRICK A. M on Jul 5, 2018
For use with my CNC machine
Dennis S on Apr 2, 2018
For my CNC.
Mike G on Nov 16, 2017
Hold downs for CNC and work bench work.
David R on Oct 1, 2017
better idea for holding down project while cutting then using clamps
James P U on Jul 5, 2017
For use with my CNC machine
Dennis S on Apr 2, 2018
Hold downs for CNC and work bench work.
David R on Oct 1, 2017
Can this be used with a vacuum bag?
Imran M on Aug 9, 2017
BEST ANSWER: Yes it can be used with a vacuum bag.
Is this vacuum pump strong enough to work with a lathe for a holding system for a turning project?
Brian on Sep 4, 2017
BEST ANSWER: I use one for that
I'm from Australia, is the power 240 volts?, if so the plug i can change to fir our power points.
Kevin P on Sep 3, 2017
BEST ANSWER: No. The pump motor voltage is 115VAC 60HZ only.
How loud is the pump?
What common appliance would it compare to in sound volume?
Aquasparky on Aug 7, 2017
BEST ANSWER: The vacuum pump is not a noise problem. My Delta dust collection system makes more noise that it does.
Is it on 230V or 120V?
JetCarrier K on Aug 6, 2017
BEST ANSWER: 120 VAC
Is this vacuum pump rated for continuous duty?
Dwight A on Apr 1, 2018
BEST ANSWER: Dwight, if you want a 24/7 vacuum pump, you probably should look for a commercial unit. My vacuum pump has not shut down during a cnc machining operation. If there is any difficulty, it is keeping the work piece flat enough so there is no release of the vacuum seal during a cnc machine operation.
can this pump be used as a pump for veneer press?
skeeter s on Nov 16, 2017
BEST ANSWER: I have not tried this. It would require buying a polyurethane vacuum bag. I have seen 0.030" polyurethane vacuum bags advertised online in a variety of size from $175 to $900. The price of the vacuum bag depends on the size of the project you will make. I have seen these in operation in a commercial custom furniture shop and they work very well, I hope this helps.
I have a very small work shop where I power carve. I need a small and quiet system would this be ok for me?
chris m on Oct 9, 2017
BEST ANSWER: This pump is not very loud at all. It is a vacuum pump so it's nowhere near the noise that a small air compressor would make. I believe your router will make more noise than this vacuum pump.
What is the max number of pods supported with the pump?
David A on Sep 3, 2017
BEST ANSWER: On the clamp description, you will find this:
A maximum of four clamp pods may be connected in series with suction of 25'' of mercury (Hg). Use a more powerful pump or multiple pumps if you wish to use more clamp pods simultaneously

Since this pump generates 25.5" I would assume that the answer is 4. That's what I bought anyway. Haven't used it yet, so I don't know how good it is.
Would this system work well for a 24 x 48" cnc vacuum hold down table?
David B on Nov 28, 2017
If you have four pods connected to the vacuum pump, can only two be used if that's all is needed?
Billy W on Oct 27, 2017
BEST ANSWER: Yes. The pods activate themselves when you put the item on them. You can use 1 to 4 as needed.
