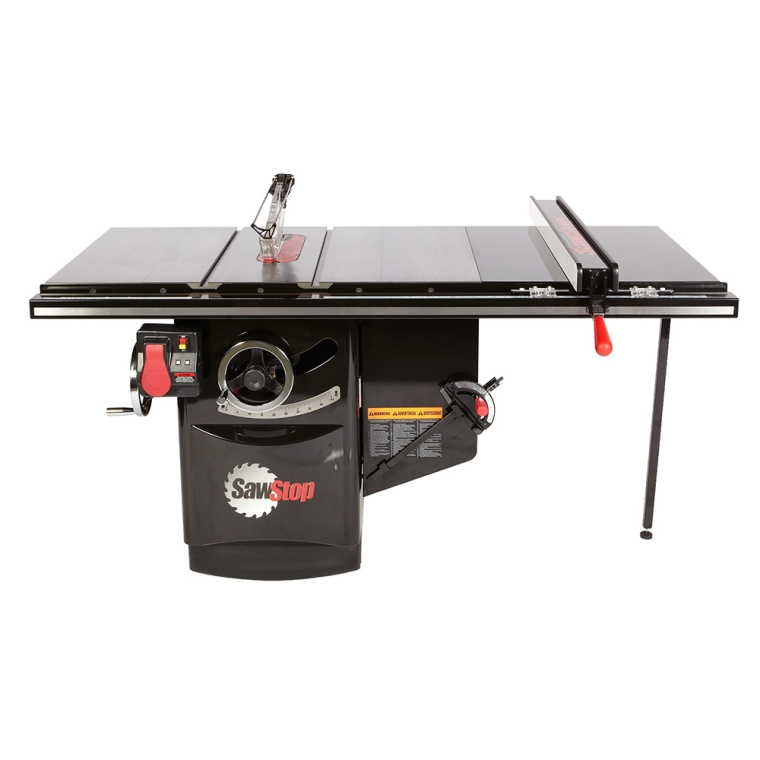

SawStop Industrial Cabinet Saw, 3HP, 1-Phase, 230V, 36'' Fence

These are the heaviest, most powerful SawStop table saws available—the gentle giants.

Item #

As low as $4,715.00

Additional Shipping and Handling Charge: $425
Direct Ship
$4,715.00   SawStop Industrial Cabinet Saw, 3HP, 1-Phase, 230V, 36'' Fence (56643)



    Get Expert Advice

    Return Policy

    One cut through a thick piece of hard maple is all it takes to feel the massive power of the SawStop Industrial Cabinet Saw. That said, it's amazing to think that it literally wouldn't harm a hot dog, or your finger, if the worst were to happen. With the utmost in precision and heavy-duty construction, plus the revolutionary safety feature that’s made SawStop famous and a dust collection system that’s second-to-none, it is, simply put, the finest SawStop table saw ever made. It offers the widest range of motor and power options on the market, including an available 7.5hp motor. No other production 10'' cabinet saw offers that much power!

    • SawStop feature automatically stops and retracts the blade on contact with skin
    • Low profile blade guard collects above table dust and minimizes blade exposure
    • Make fast and easy transitions between blade guard and riving knife with no tools required
    • Zero-clearance insert has quick-release mechanism for tool-free access to the saw cavity
    • 99% Efficient Dust Collection: Advanced control of over-and-under table airflow captures dust at the blade and directs it out of the saw
    • T-Glide rail system and widely spaced glide plates provide smooth travel along the length of the table
    • Premium craftsmanship and rigorous engineering combine to create a saw you'll love to use
    • Precision alignment system lets you adjust the blade and table alignment with precision not found on other saws

    Industrial Cabinet Saw vs. Professional Cabinet Saw:
    • 200+ more pounds of iron and steel for maximum stability and precision
    • Thicker cast iron table absorbs even more vibration
    • Deeper table (30'' vs 27'') provides about 2-1/2'' more room in front of the blade
    • Thicker gauge steel in the cabinet, rails, tube and fence
    • Larger, deeper fence tracks smooth and locks down solid with absolutely no deflection
    • Massive cast iron trunnion delivers smooth, precise operation year after year
    • Bigger hand wheels for easy adjustments
    • Larger metal motor access door for quick access
    • Second access door for easy maintenance
    • Industrial lock-out/tag-out switch
    • Interrupt switches on all access doors disable saw when opened
    • 5-year motor warranty

    (1) SawStop Industrial Cabinet Saw
    (2) Extension Wings (the right extension wing is pre-installed)
    (1) Blade guard and spreader with anti-kickback pawls
    (1) Riving Knife (pre-installed)
    (1) 10 inch saw blade
    (1) Zero-clearance table insert (pre-installed)
    (1) Brake Cartridge for a 10 inch blade (pre-installed)
    (1) Brake cartridge key (pre-installed)
    (1) Miter gauge
    (2) Blade Wrenches
    (3) Hex key wrenches
    (1) plastic bag containing assembly hardware
    (2) Bypass switch keys
    (1) Owners manual
    (1) Handle for the tilt hand wheel

    Rockler Protection Plan

    With the Rockler Protection Plan you'll get accidental damage coverage immediately upon purchase of your tool. Plus we will extend the manufacturer's warranty for your choice of an additional 1 or 2 years. We'll take care of all parts and labor for any repairs with no deductibles and no hassles. If your tool can not be repaired we'll gladly replace it. Available in the US only. Click here to learn more.

    Standard Manufacturer's Warranty: 24 months on saw 60 months on motor

    More Information
    Brand SawStop
    Tech Spec
    • Motor: (all 60Hz, TEFC): 3.0, 5.0 & 7.5hp available
    • Cabinet footprint: 20'' w x 25'' d
    • Cast iron table: 24'' w x 30'' d
    • Cast iron table (w/ extension wings): 44'' w x 30'' d
    • Extension wings: 10'' w x 30'' d each
    • Extension table (36 in rails): 24'' w x 30'' d
    • Extension table (52 in rails): 40'' w x 30'' d
    • Weights - table saw only: 530 lbs
    • Weights - w/ 36 in fence systems: 635 lbs
    • Weights - w/ 52 in fence systems: 685 lbs
    • Shipping weight (approx.): 640 lb (table saw only)
    • Blade: 60-tooth, prof. grade, 5/8'' arbor
    • Blade diameter: 10''
    • Blade tilt: Left
    • Blade kerf: 0.118'' (3mm)
    • Blade plate thickness: 0.078'' (2mm)
    • Max. depth of cut, blade at 0º: 3-1/8''
    • Max. depth of cut, blade at 45º: 2-1/4''
    • Max. rip, right of blade - 36 in: 36-1/2'' (w/ optional 36'' rails)
    • Max. rip, right of blade - 52 in: 52-1/2'' (w/ optional 52'' rails)
    • Max. rip, left of blade: 12-1/2''
    • Dado diameter: 8'' (requires a separate brake cartridge and insert)
    • Dado max. width: 13/16''
    • Arbor diameter at blade: 5/8''
    • Main bearing size: 62mm OD x 30mm ID
    • Second bearing size: 52mm OD x 25mm ID
    • Table in front of blade (max. elevation): 11''
    • Table behind blade (max. elevation): 9-3/4''
    • Arbor Runout: 0.001'' Maximum allowable runout
    • Table flatness measured diagonally: 0.010'' Maximum gap
    • Blade alignment with miter slot: 0.010'' Maximum displacement
    • Deviation of miter gauge indexing stops from actual: ±0.25º
    • Alignment between splitter and blade: 0.010'' Maximum difference
    • Miter slots T-shaped: 3/4'' at top, 1'' at bottom, 3/8'' deep
    • Miter slots center: 11-1/8'' center-to-center
    • Miter slots info: 5-1/2'' (arbor flange to center of right slot)
    • Dust collection port diameter: 4''
    • Riving knife / splitter thickness: 0.090'' (2.3 mm)
    • Blade guard (dust collection): PC, extends 1-3/16'' to right of blade
    • Blade guard (micro guard): N/A
    • Insert: zero clearance, phenolic core, melamine surfaces
    • Hand wheels: 8'' diameter, cast iron w/ chrome handle
    • Belts: 2 V-ribbed belts
    • Overall saw dimensions (saw only): 44'' w x 34'' d x 34'' h
    • Overall saw dimensions (with 36'' fence option): 69 1/4'' w x 36 1/2'' d x 34'' h
    • Overall saw dimensions (with 52'' fence option): 85 1/4'' w x 36 1/2'' d x 34'' h
